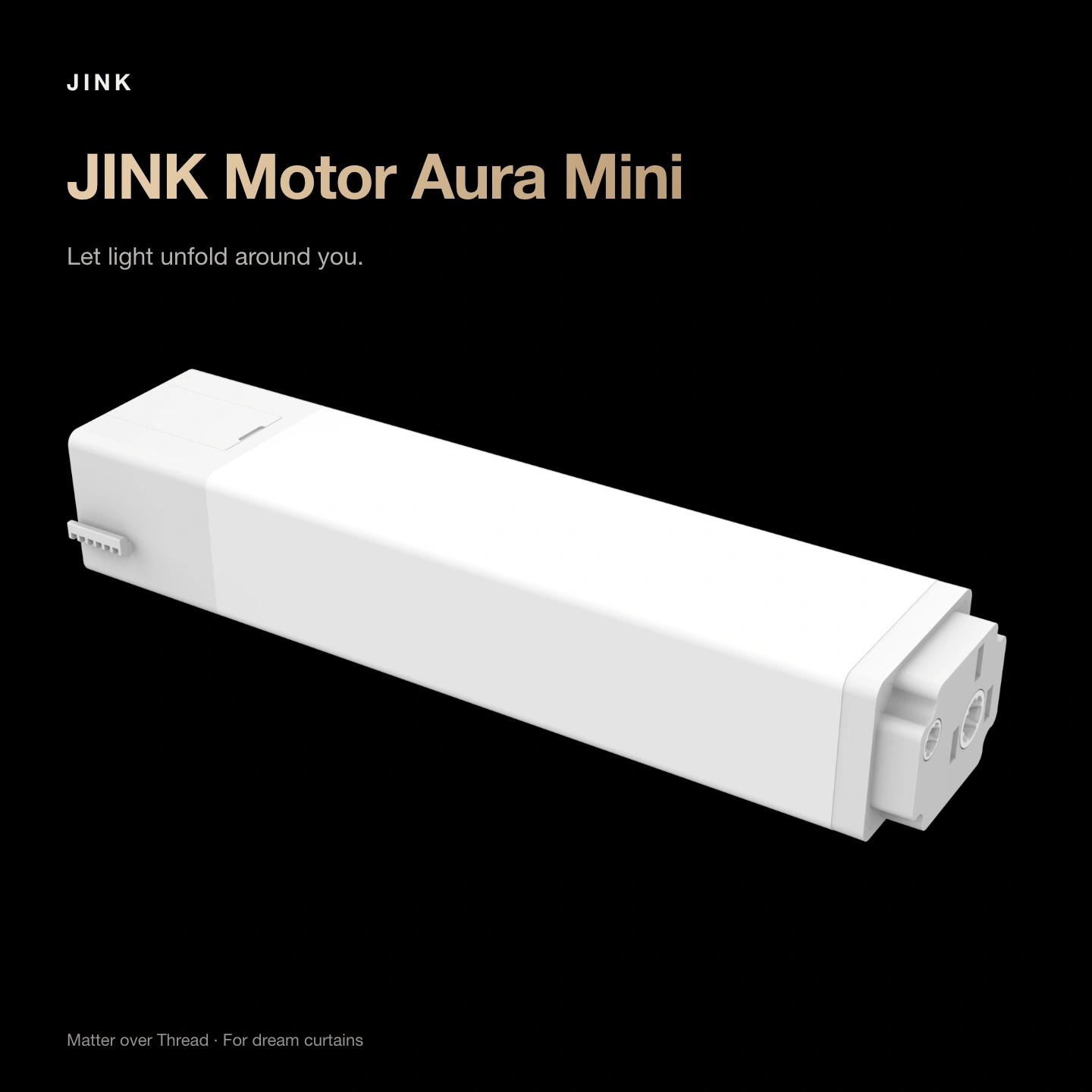

JINK vertical sheer blind motor Motor Aura Mini

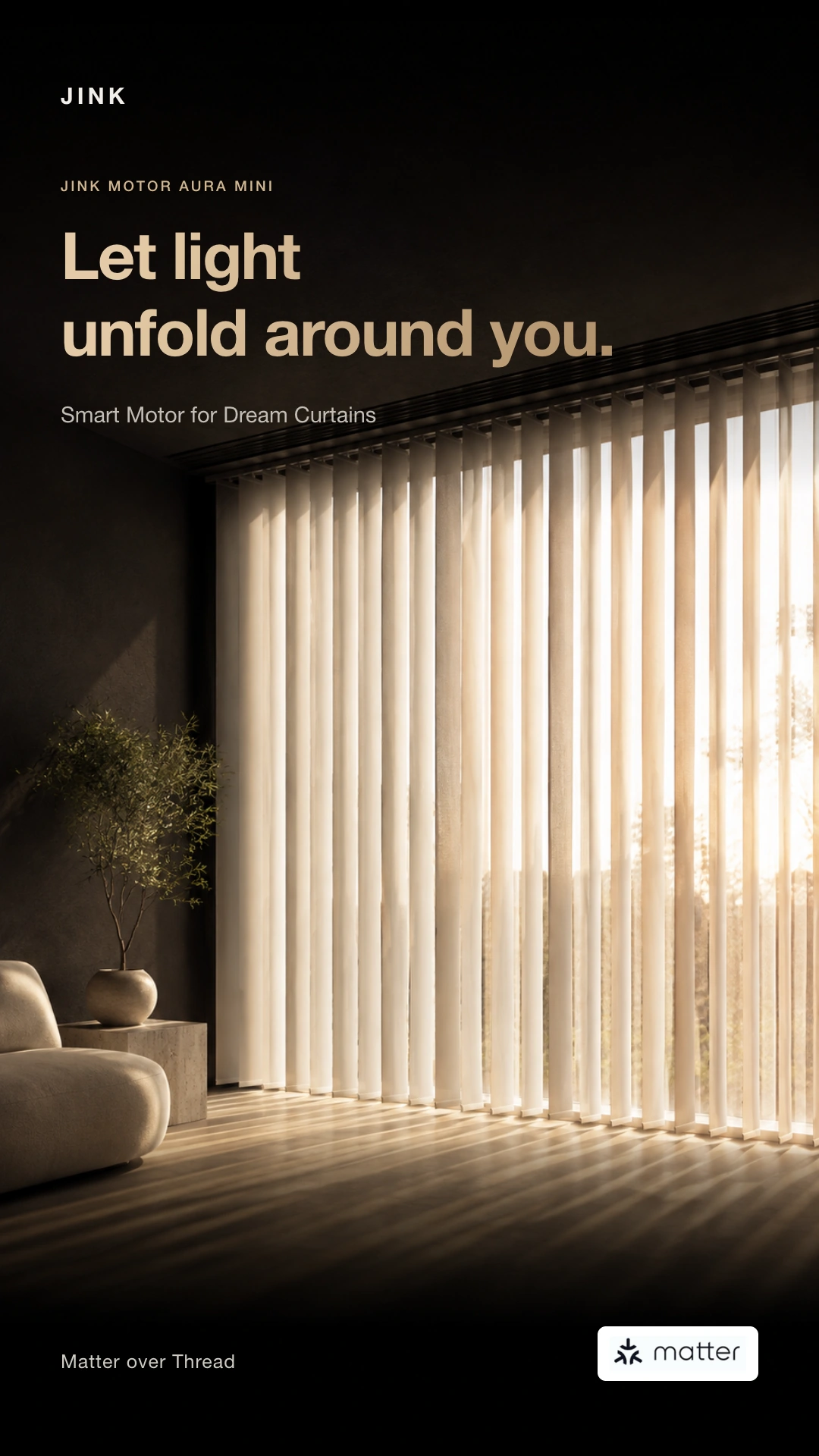

Let light follow the way you live.

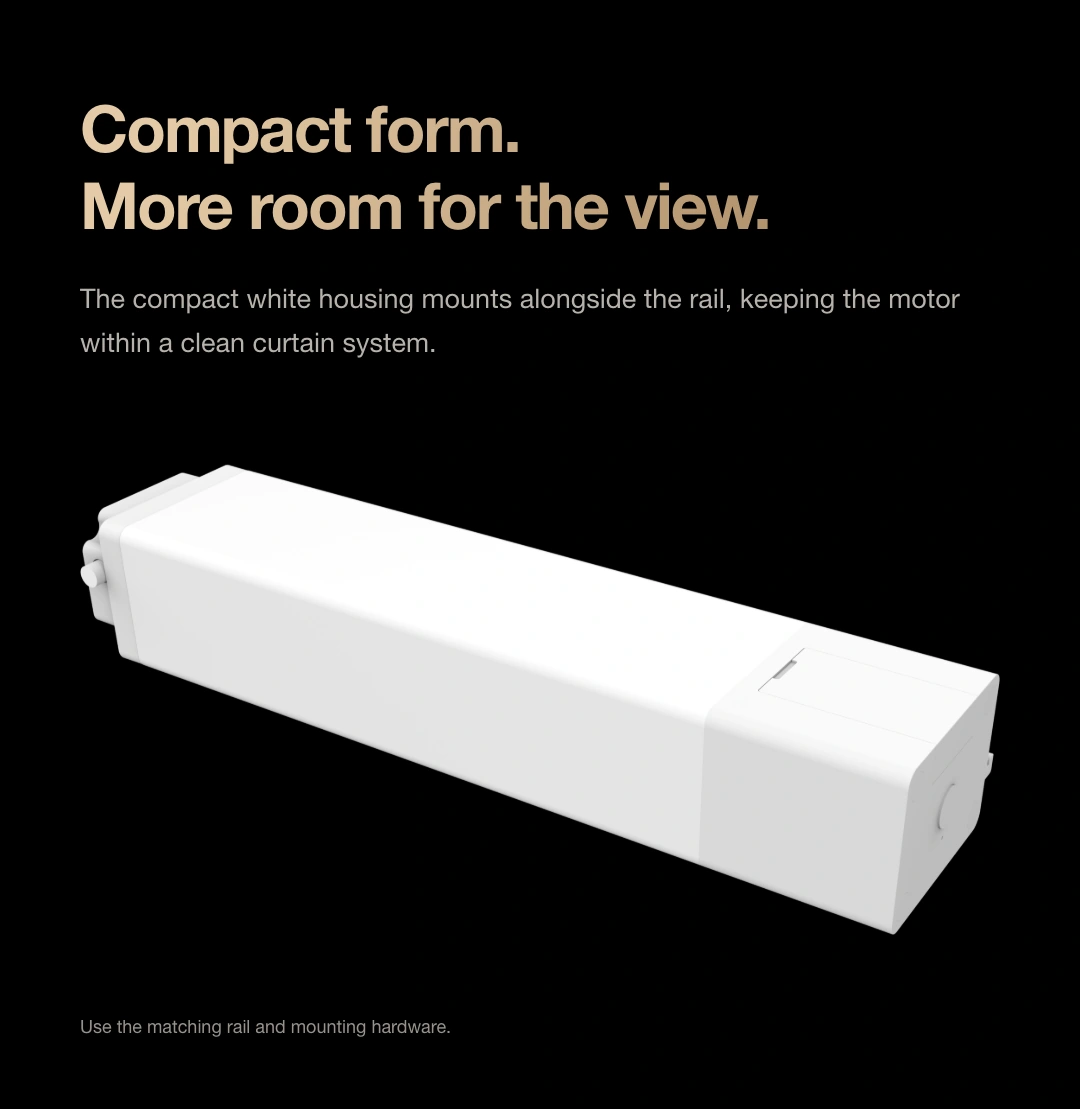

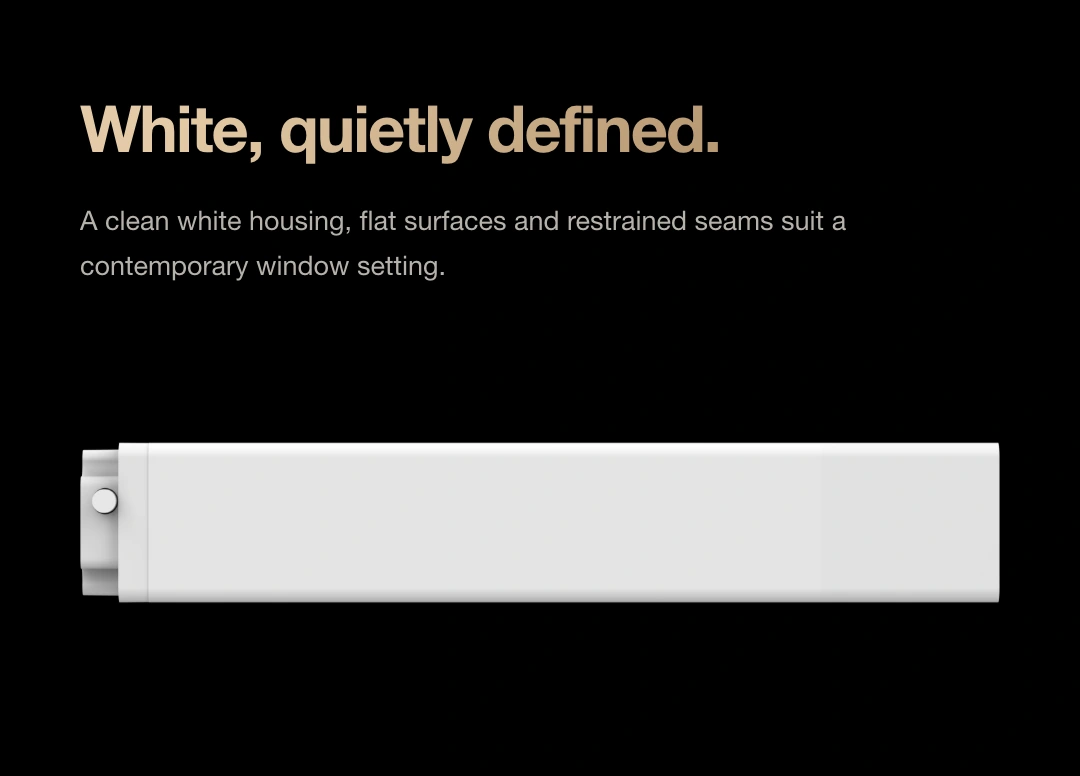

JINK Motor Aura Mini independently drives opening, closing and vane adjustment for vertical sheer blinds, with 9 / 12 / 14 cm/s speed options. Its compact white body works with the dedicated straight track for a clean window setting.
JINK vertical sheer blind motor Motor Aura Mini
Final pricing and configuration are confirmed by your sales channel and order.
More thought for everyday life.

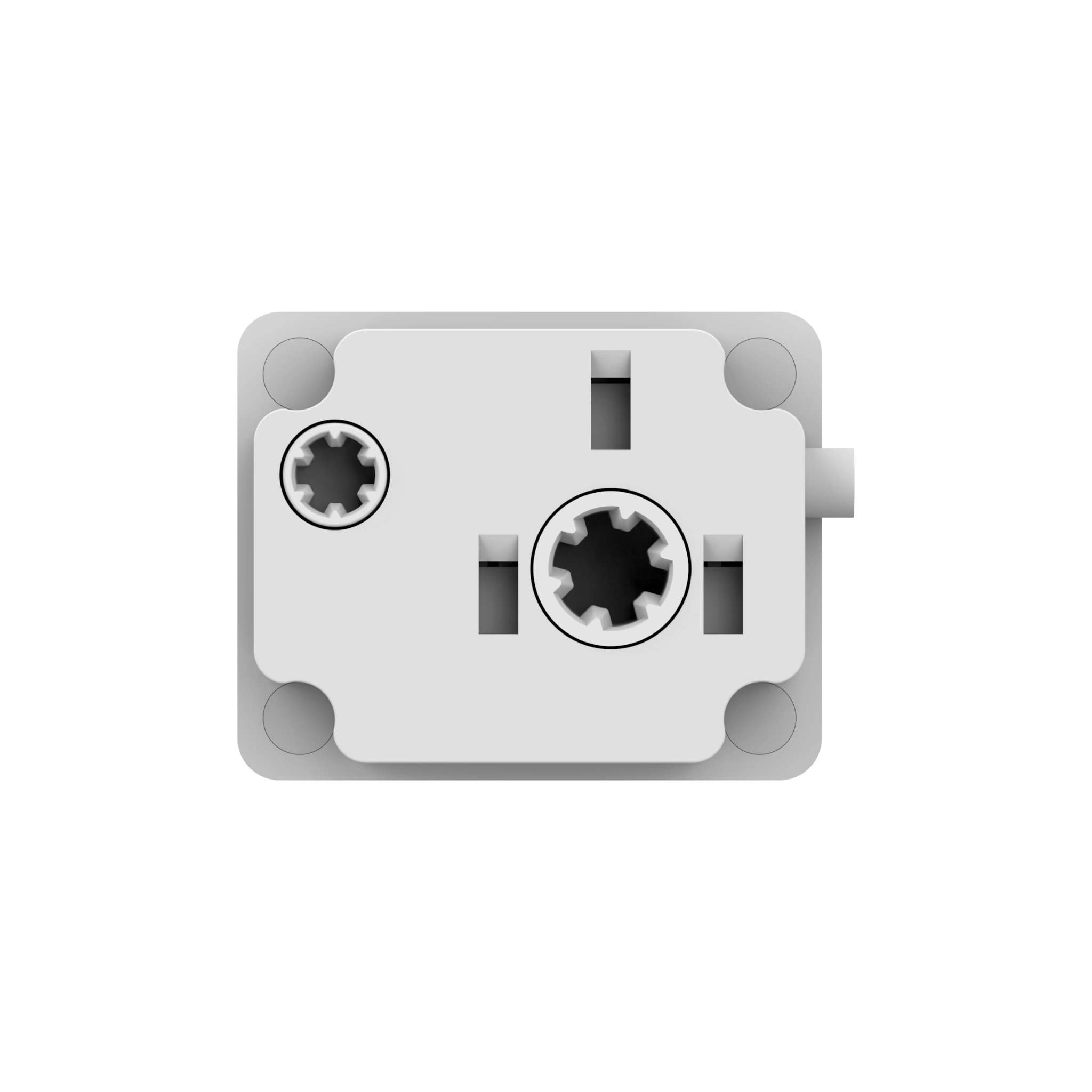

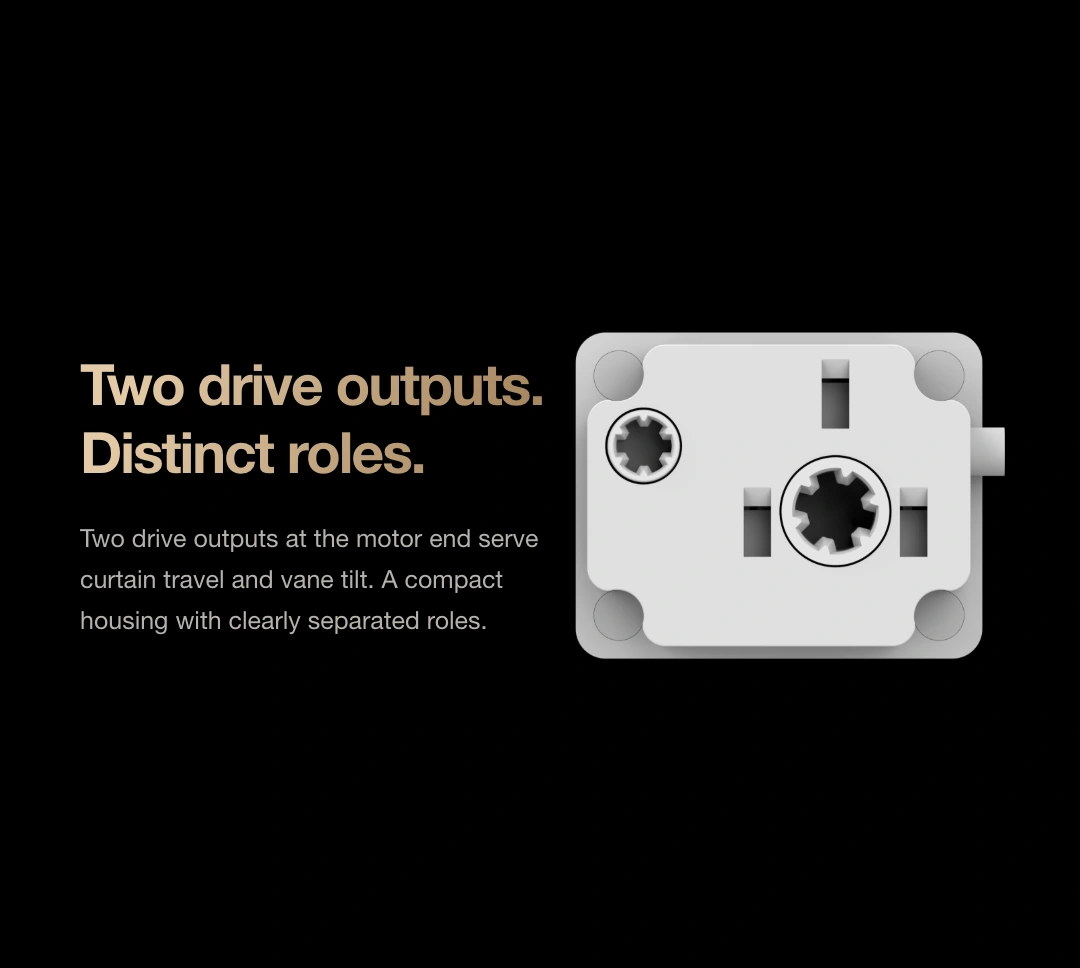

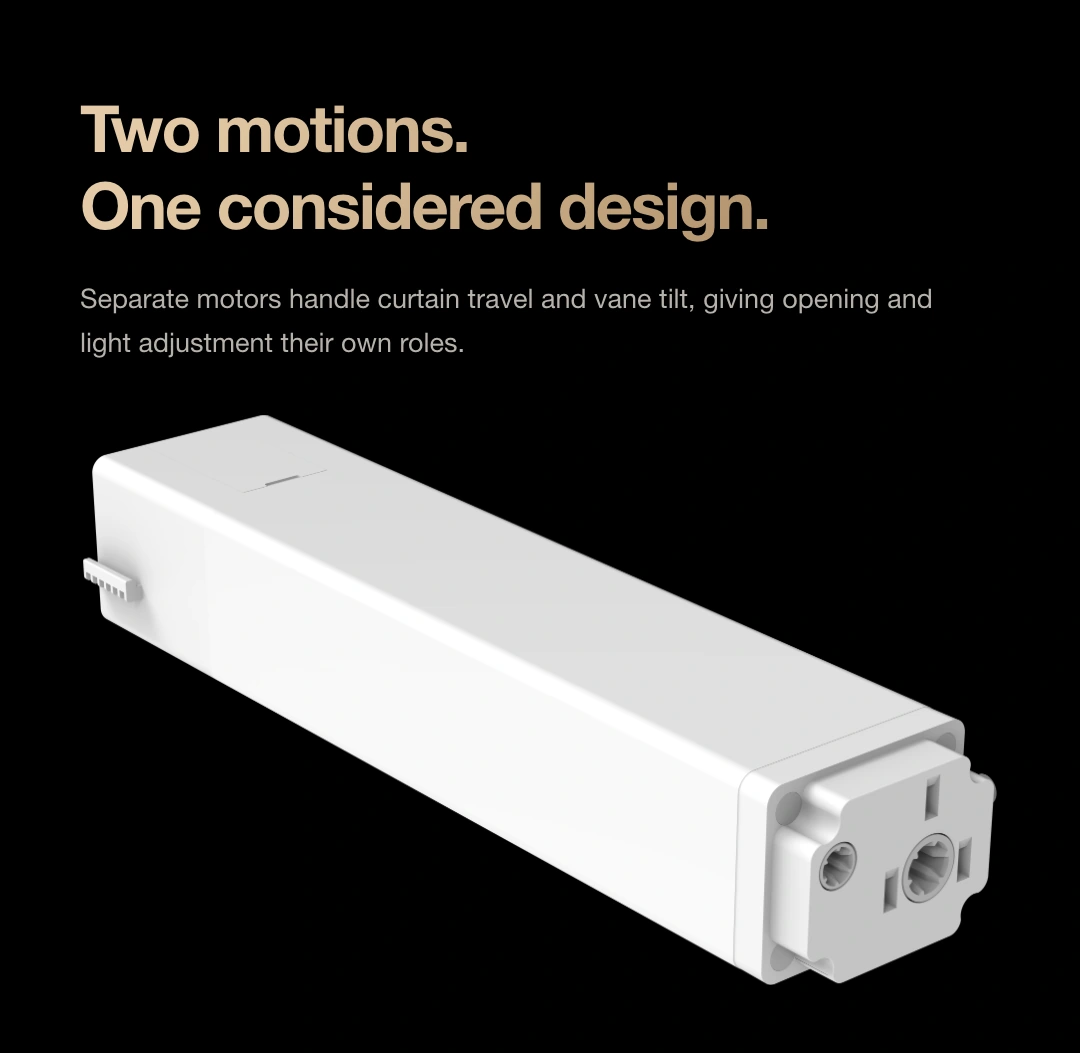

Two independent drives

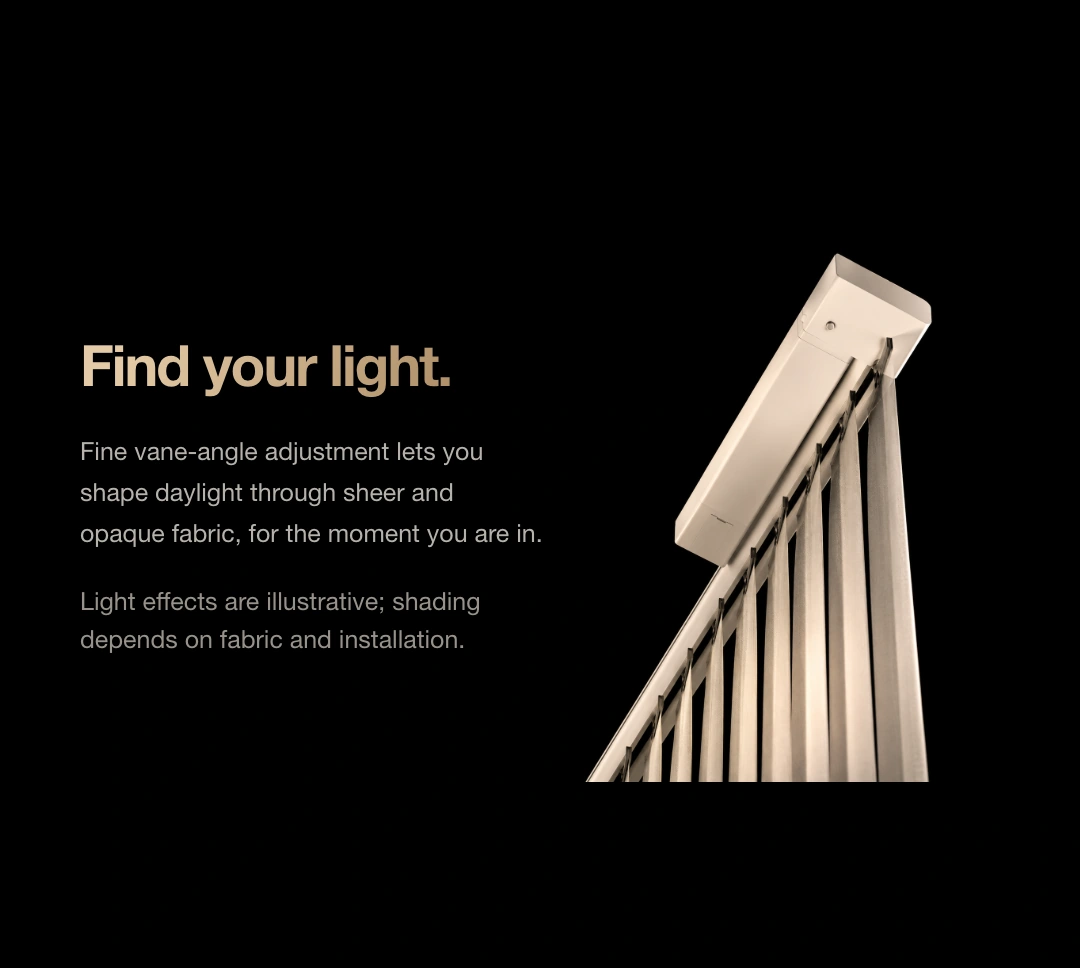

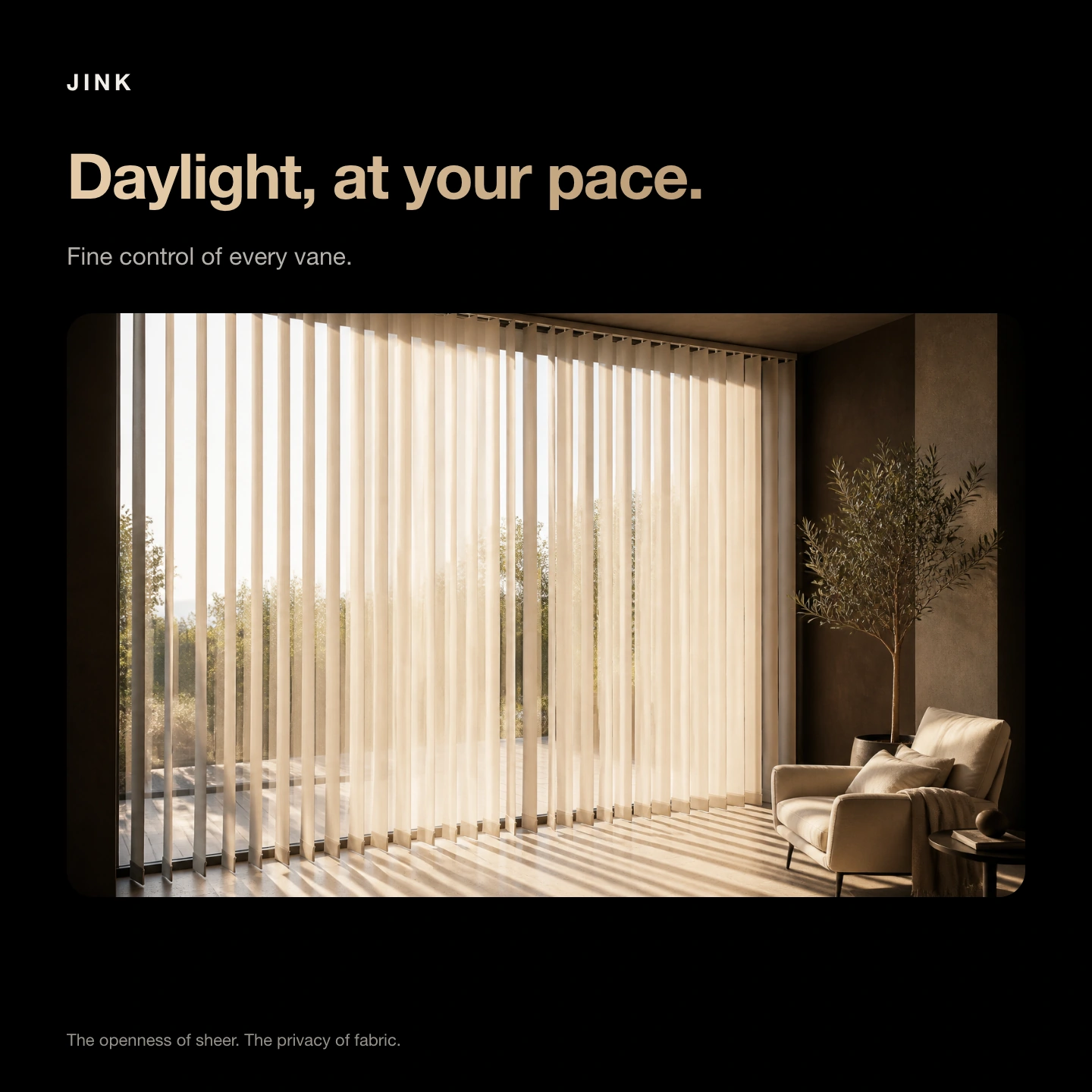

Opening the curtains and tilting the slats serve different purposes. Adjust the view and the light as needed.

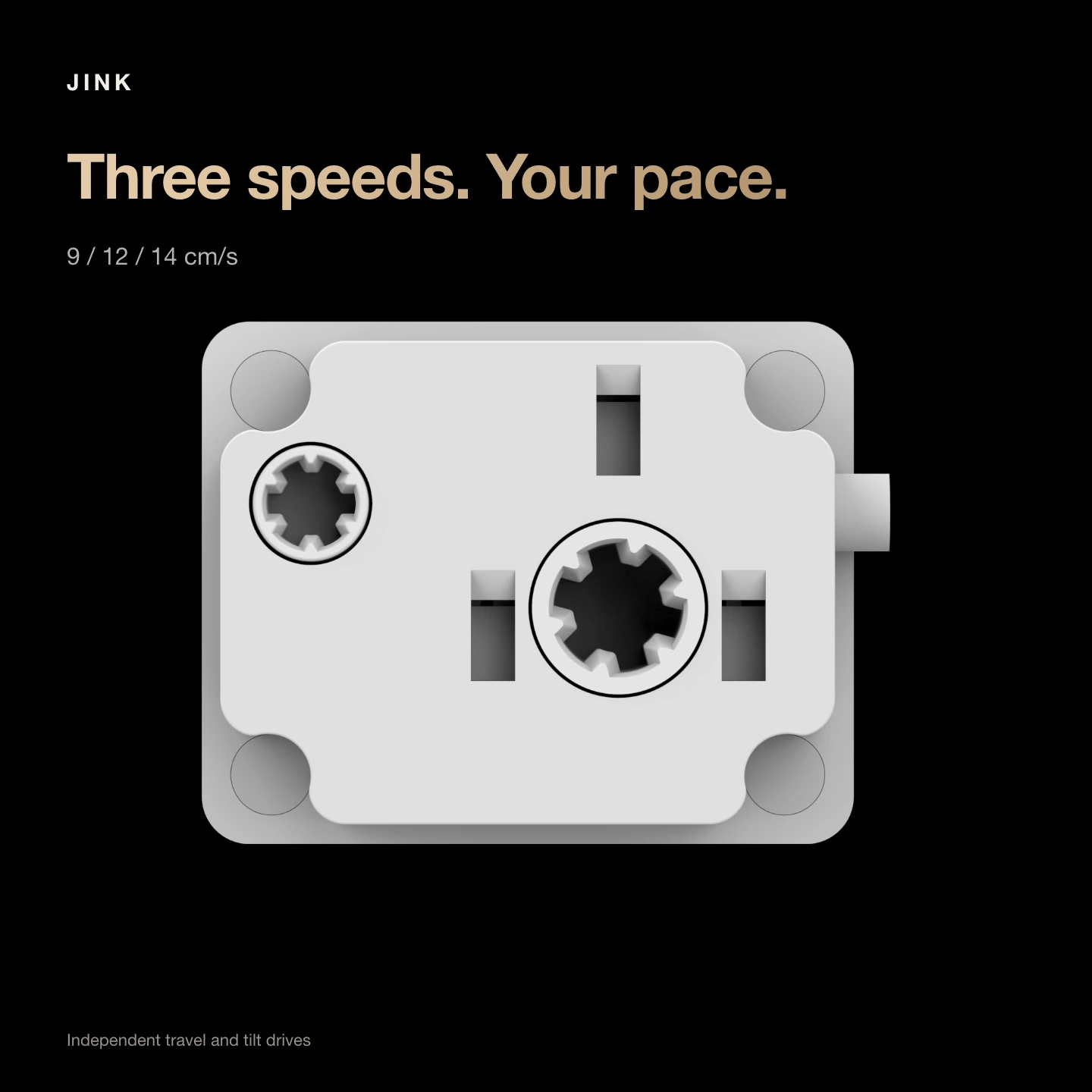

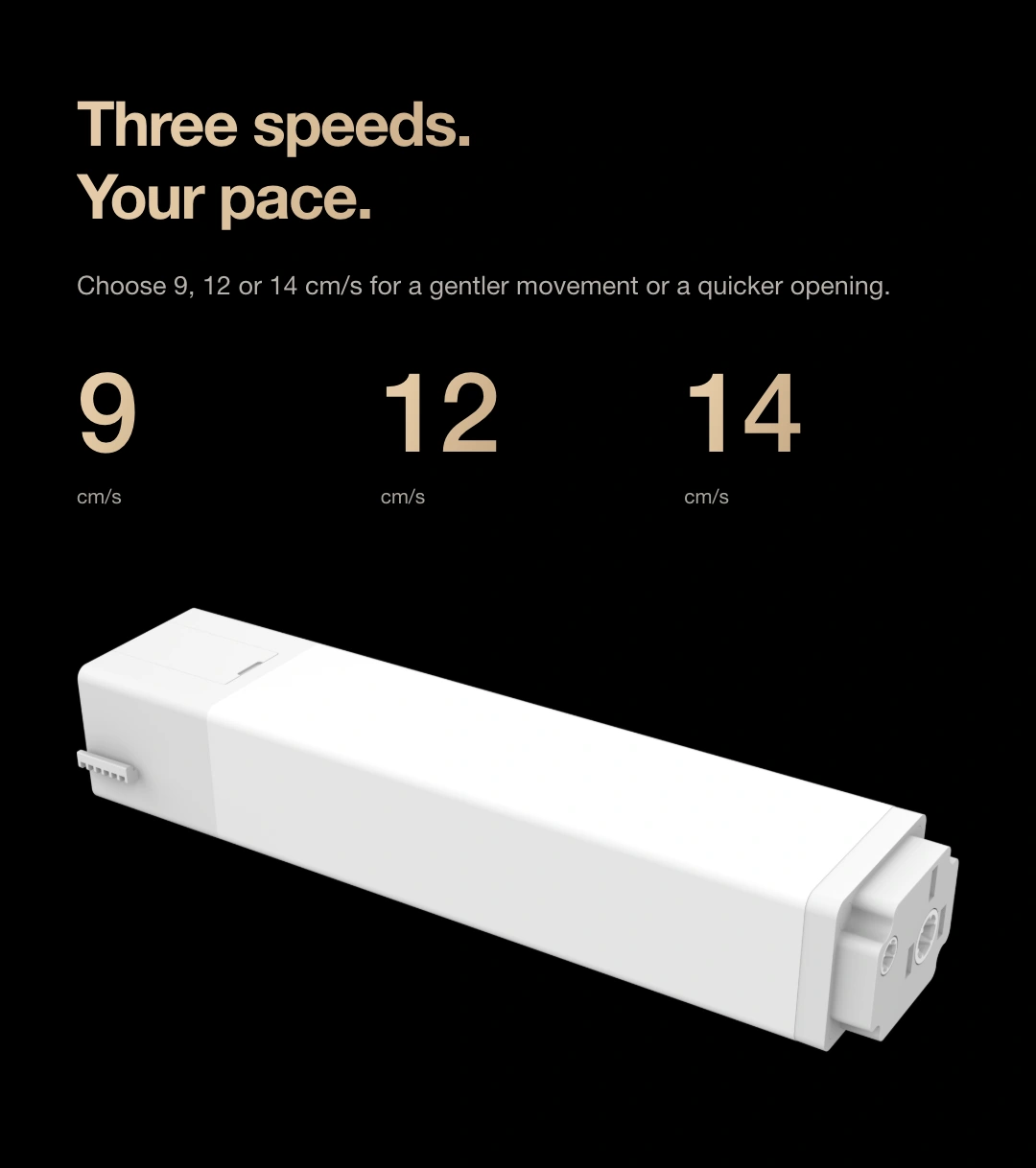

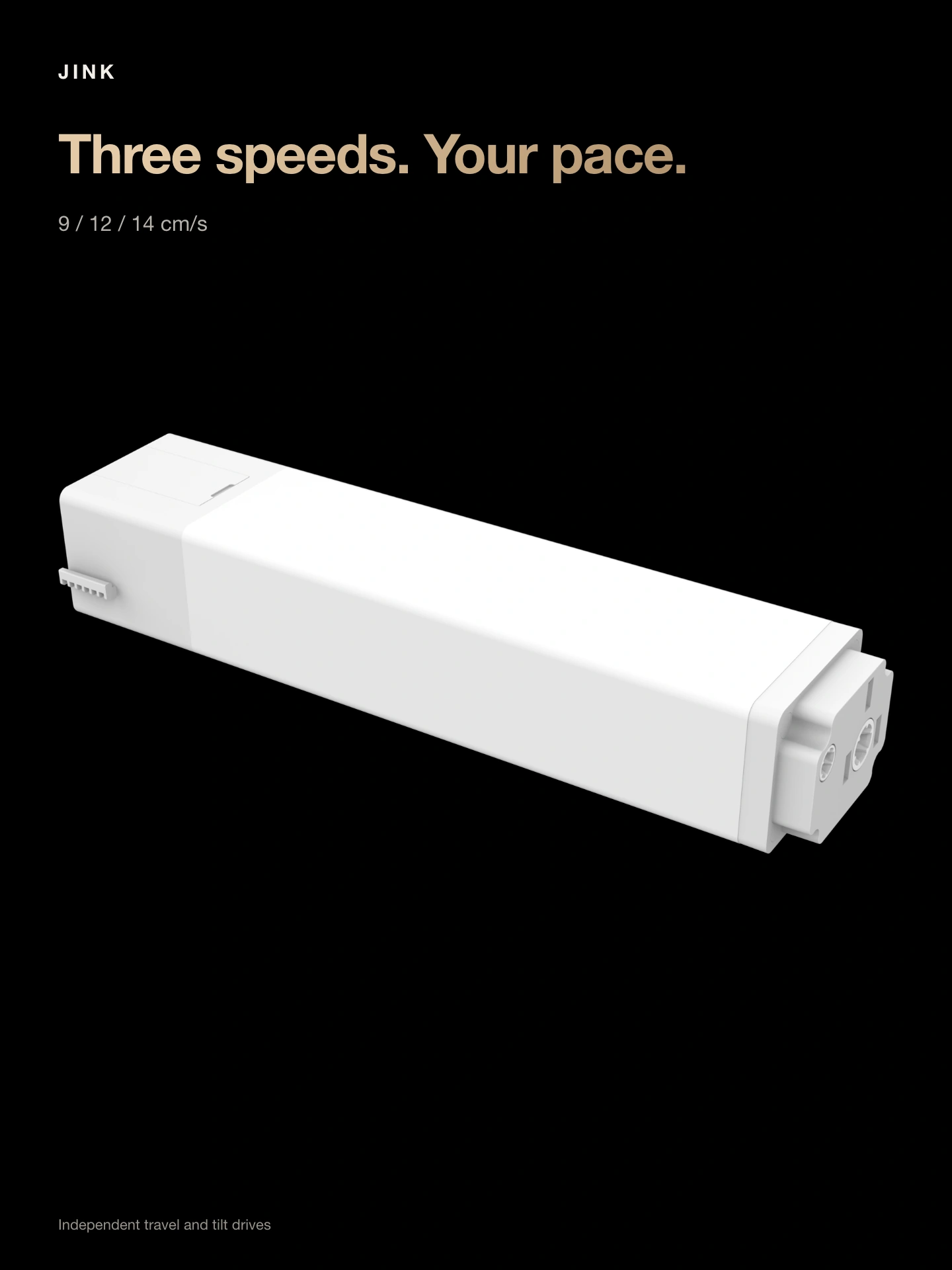

Three speed settings
Choose an opening speed of 9, 12 or 14 cm/s.

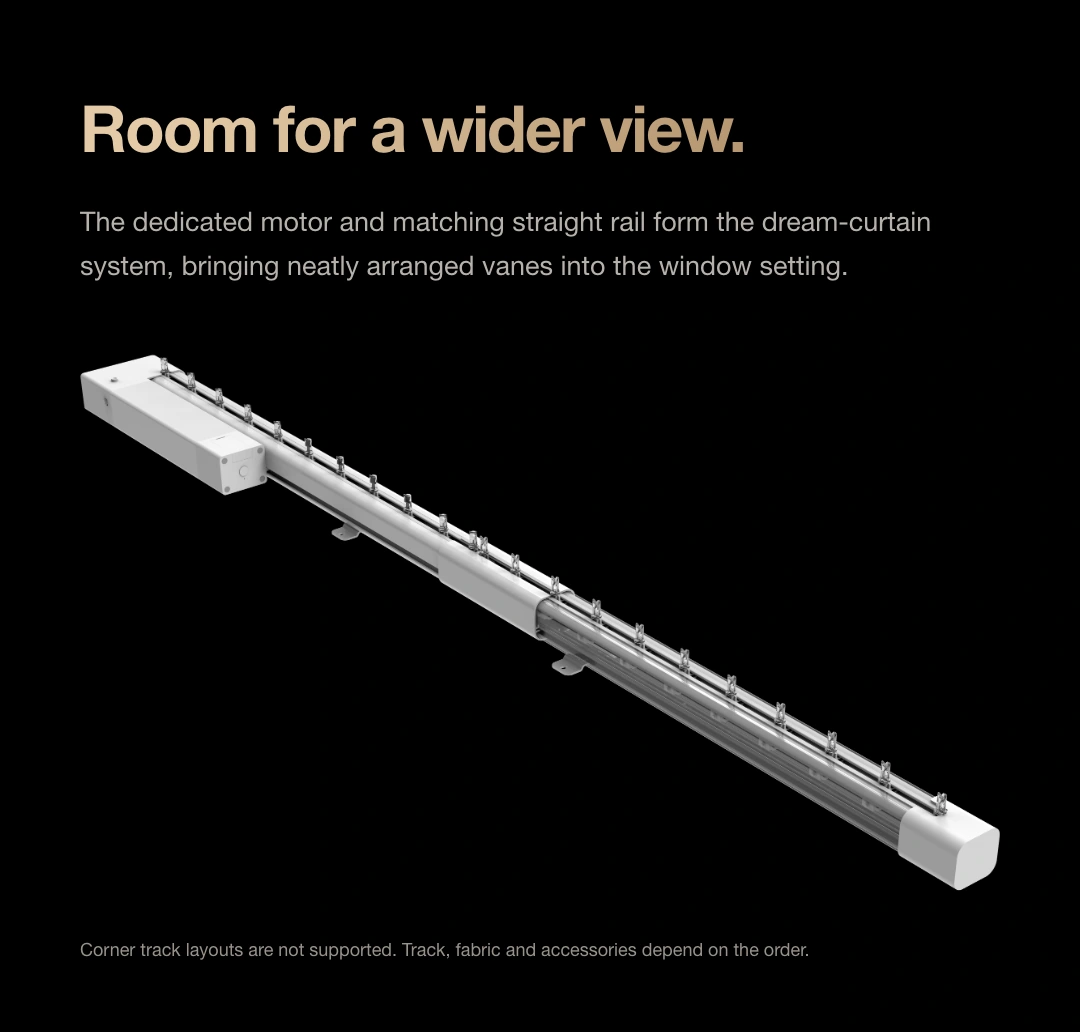

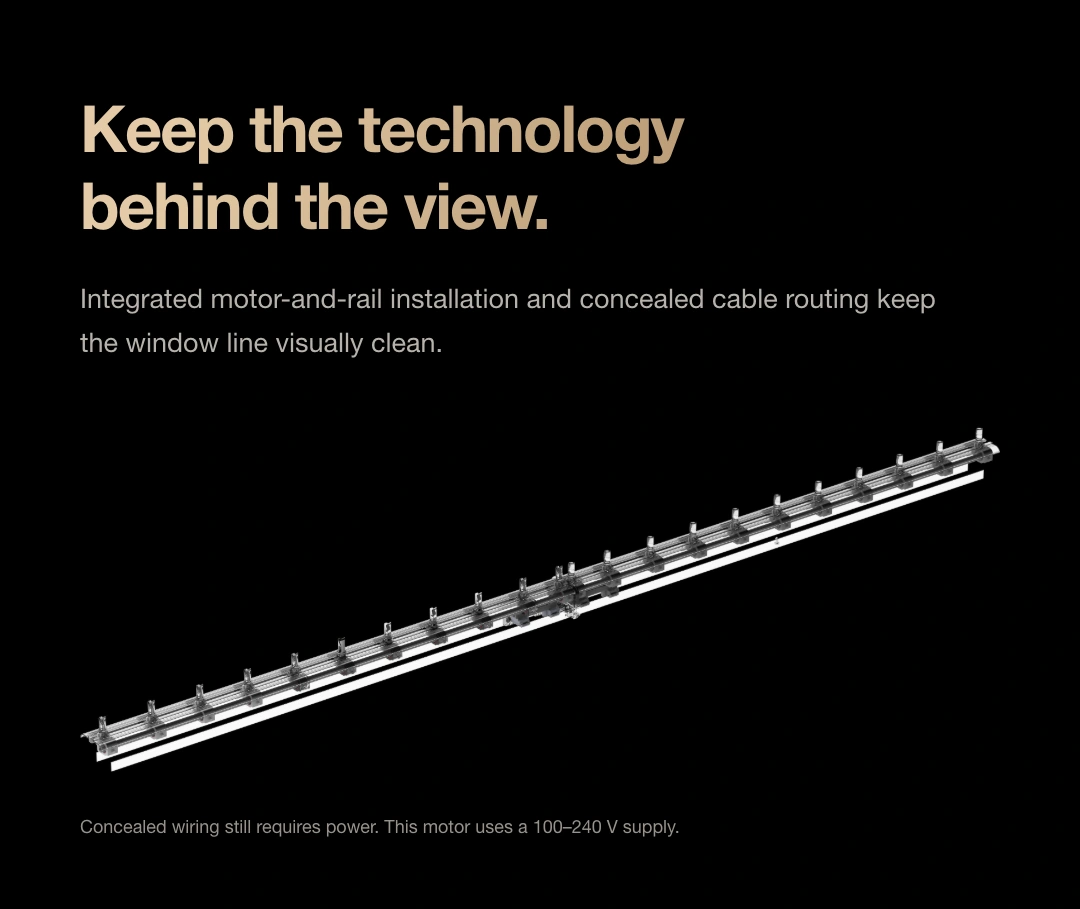

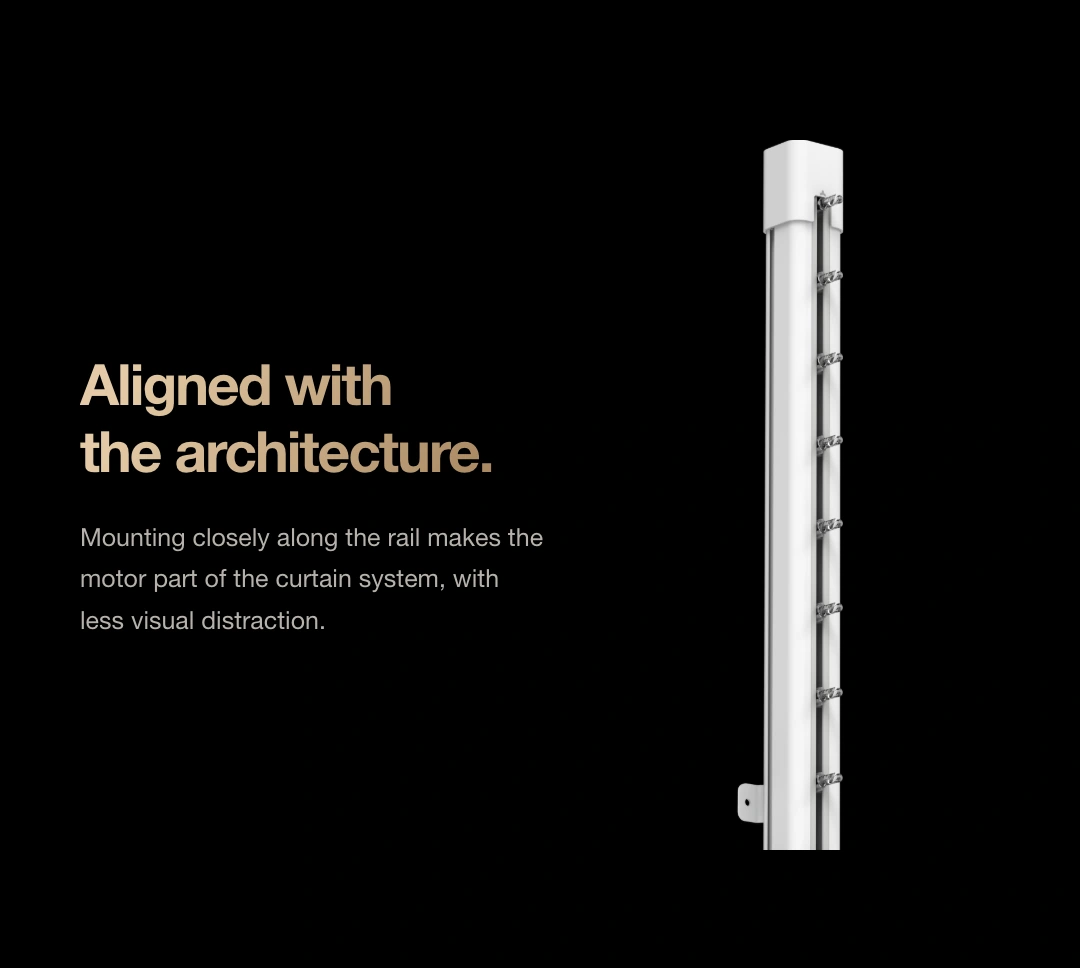

Matching straight track
Use the matching straight track, drive components and mounting hardware. Corner tracks are not supported.
Design · Functions · Life
Take your time to explore every detail.
JINK vertical sheer blind motor Motor Aura Mini · product story
Details and scenes
Explore the product from different angles and see its design and functions in use. Click an image to enlarge it. Configuration depends on the selected model.

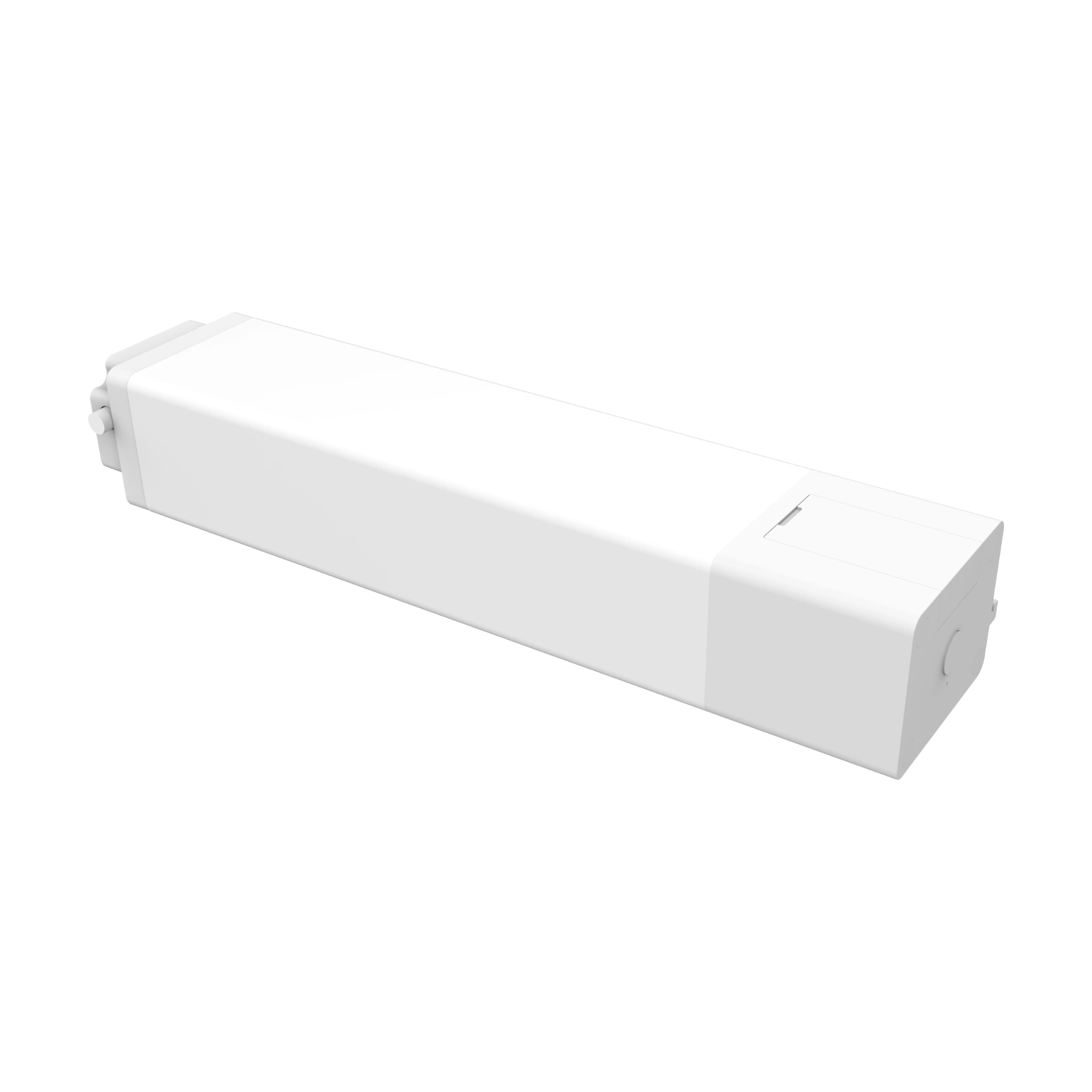

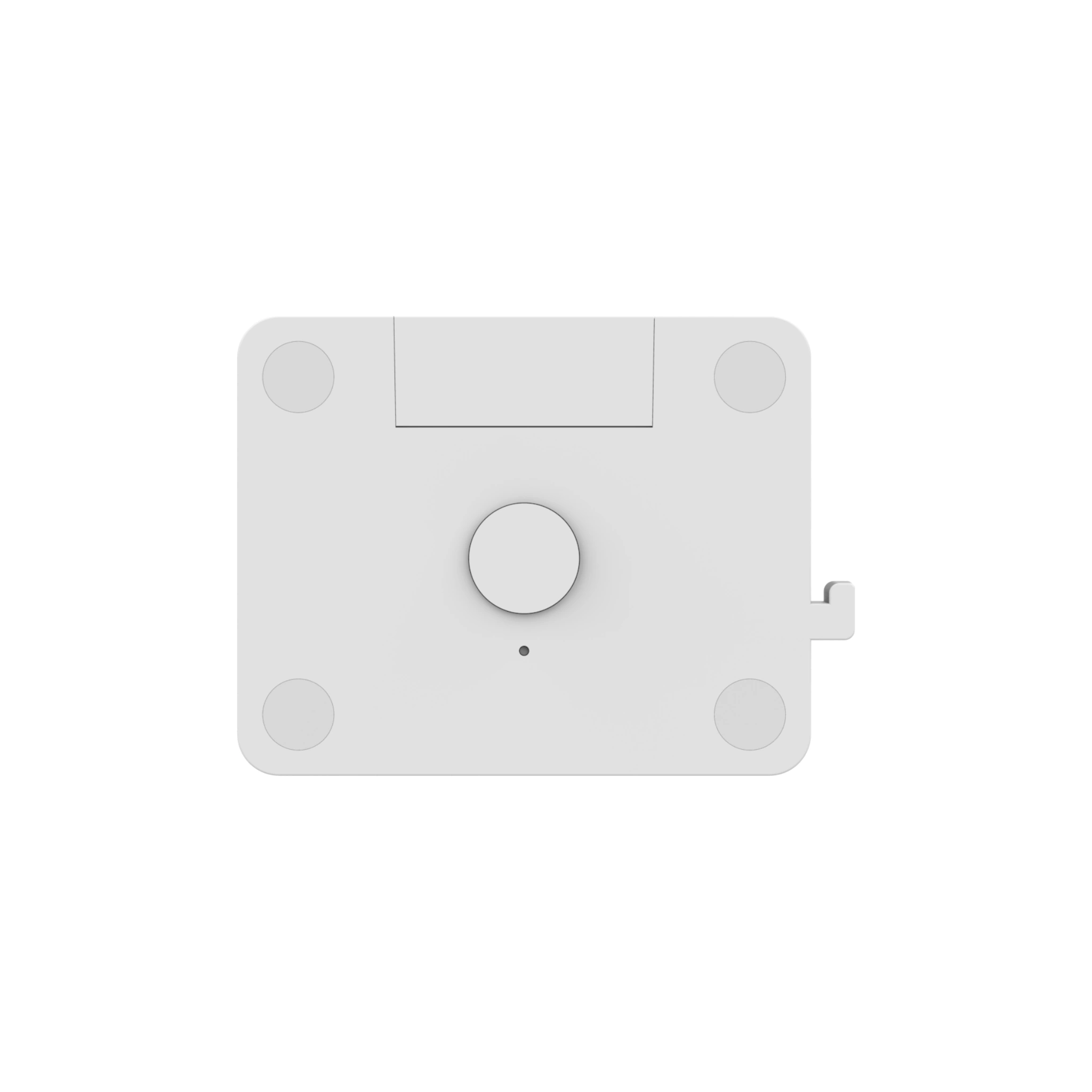

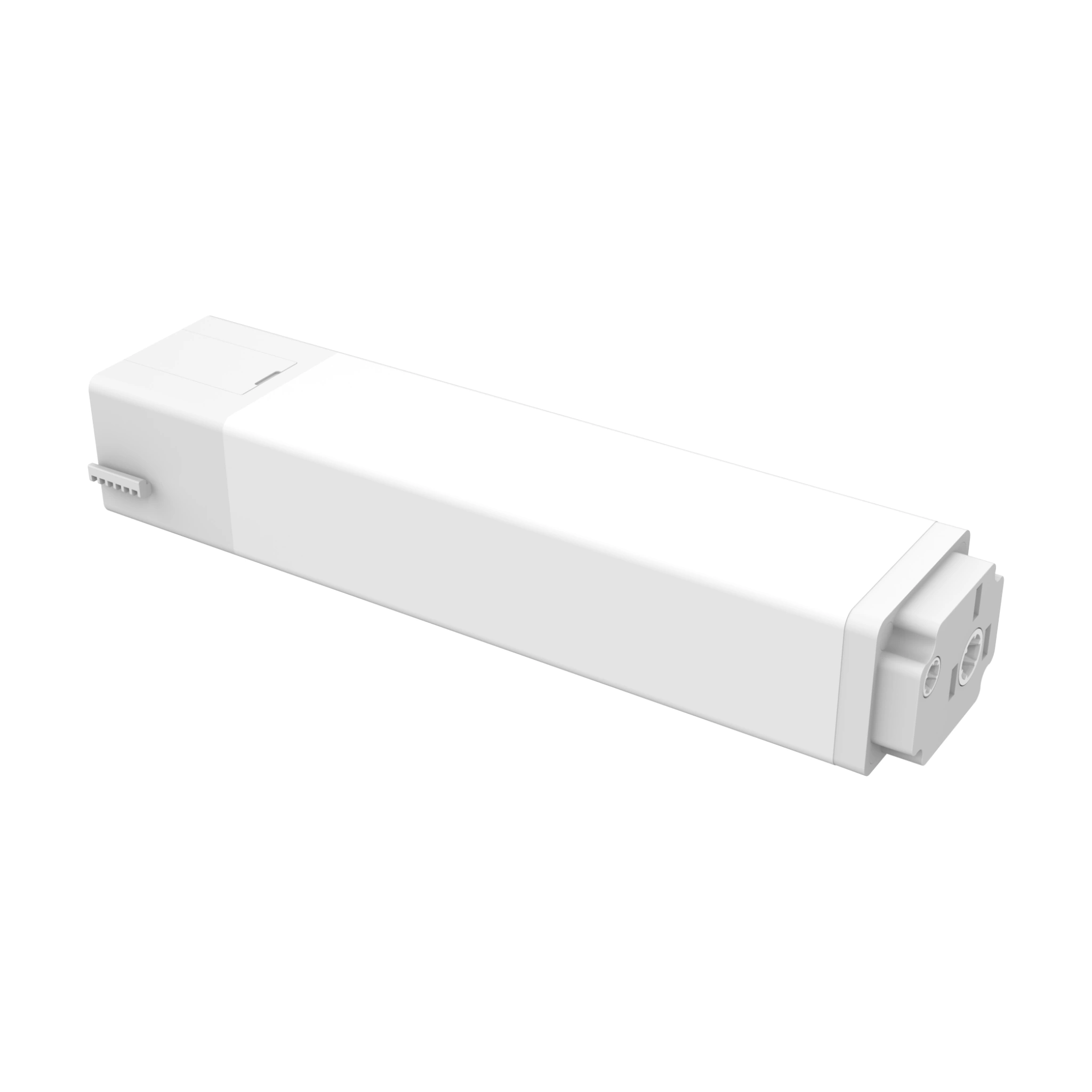

Product details5 images
Highlights5 images

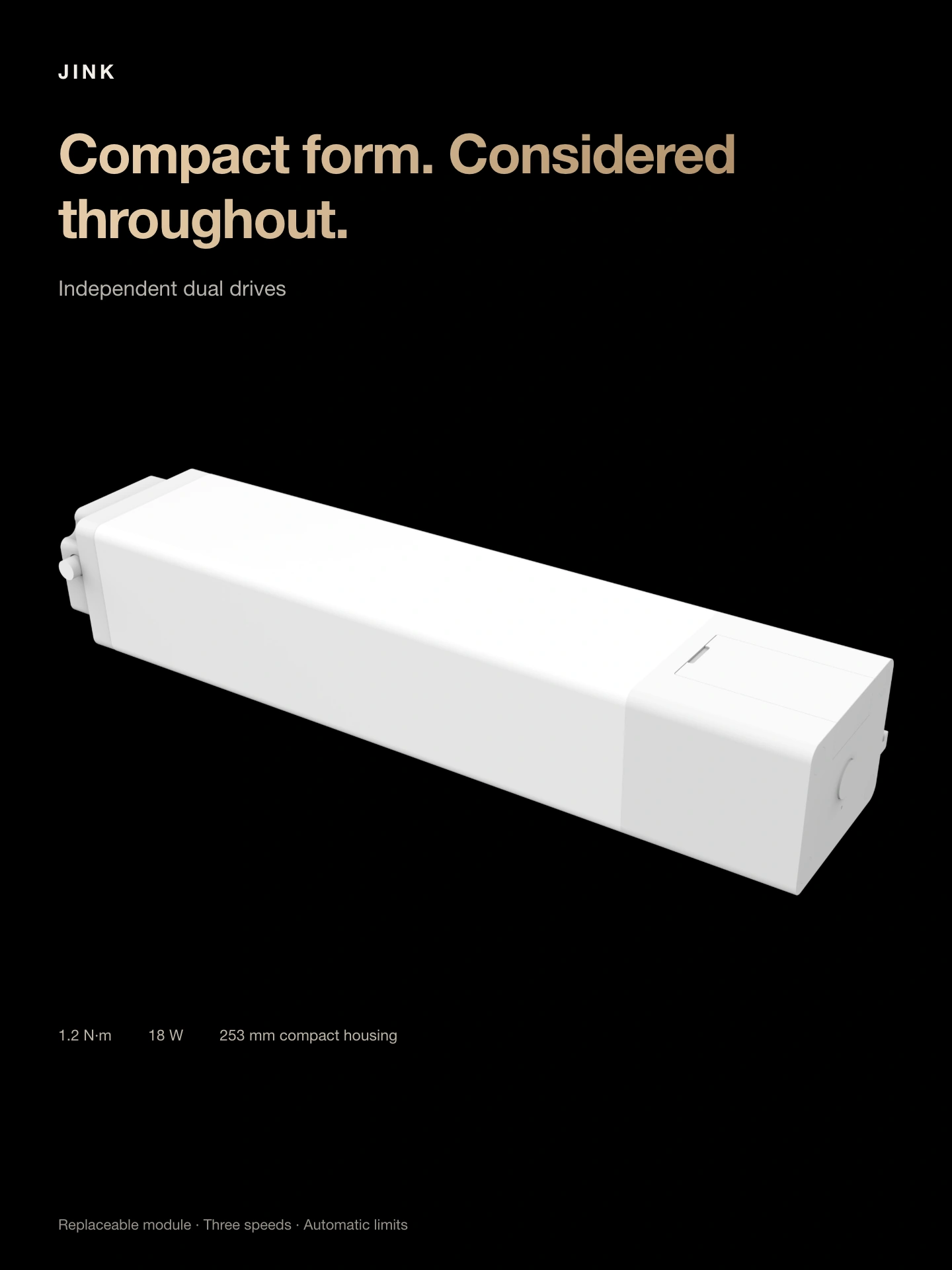

Scenes & features5 images
Selection reference

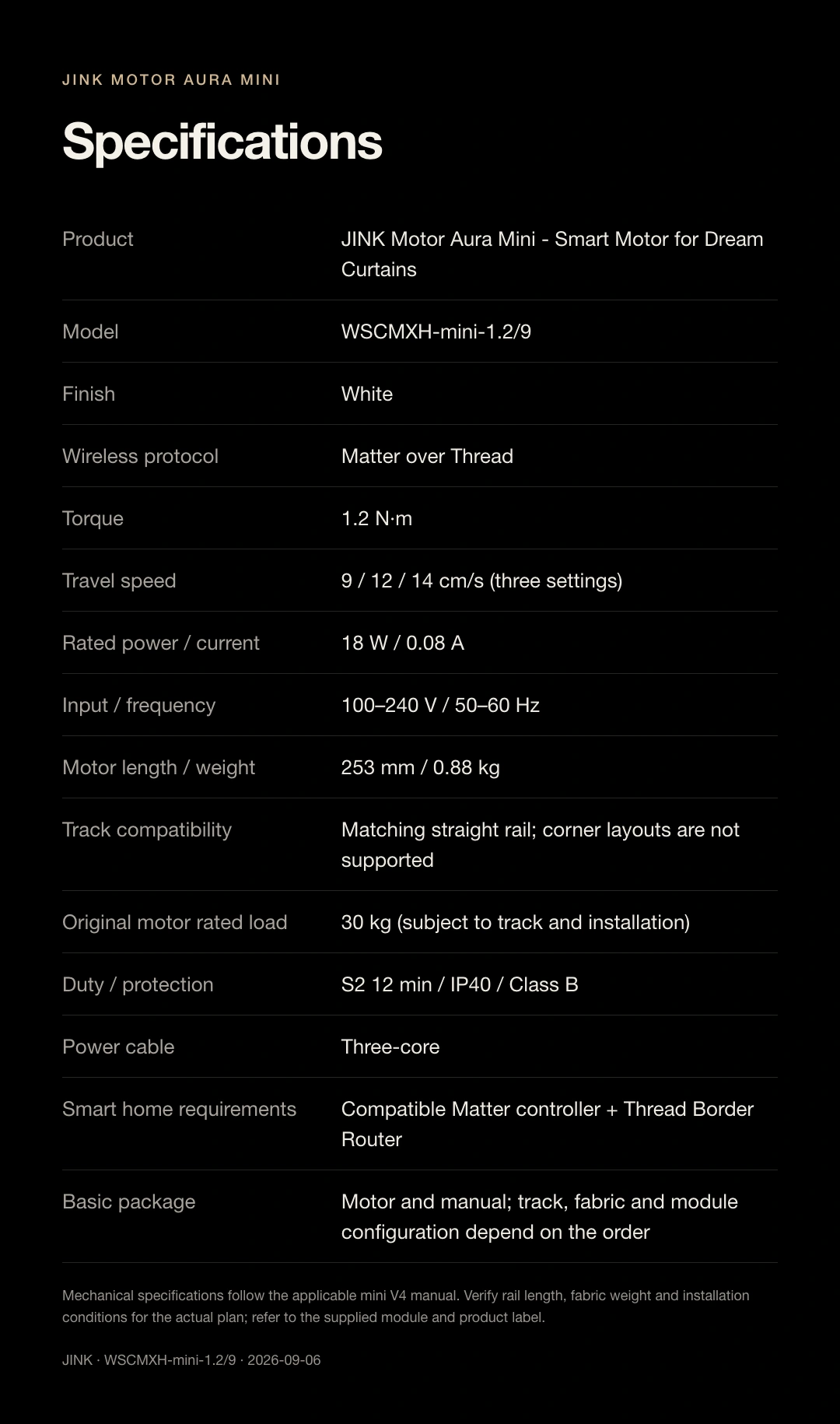

Technical specifications
| Product model | WSCMXH-mini-1.2/9 |
|---|---|
| Product type | vertical sheer blind motor |

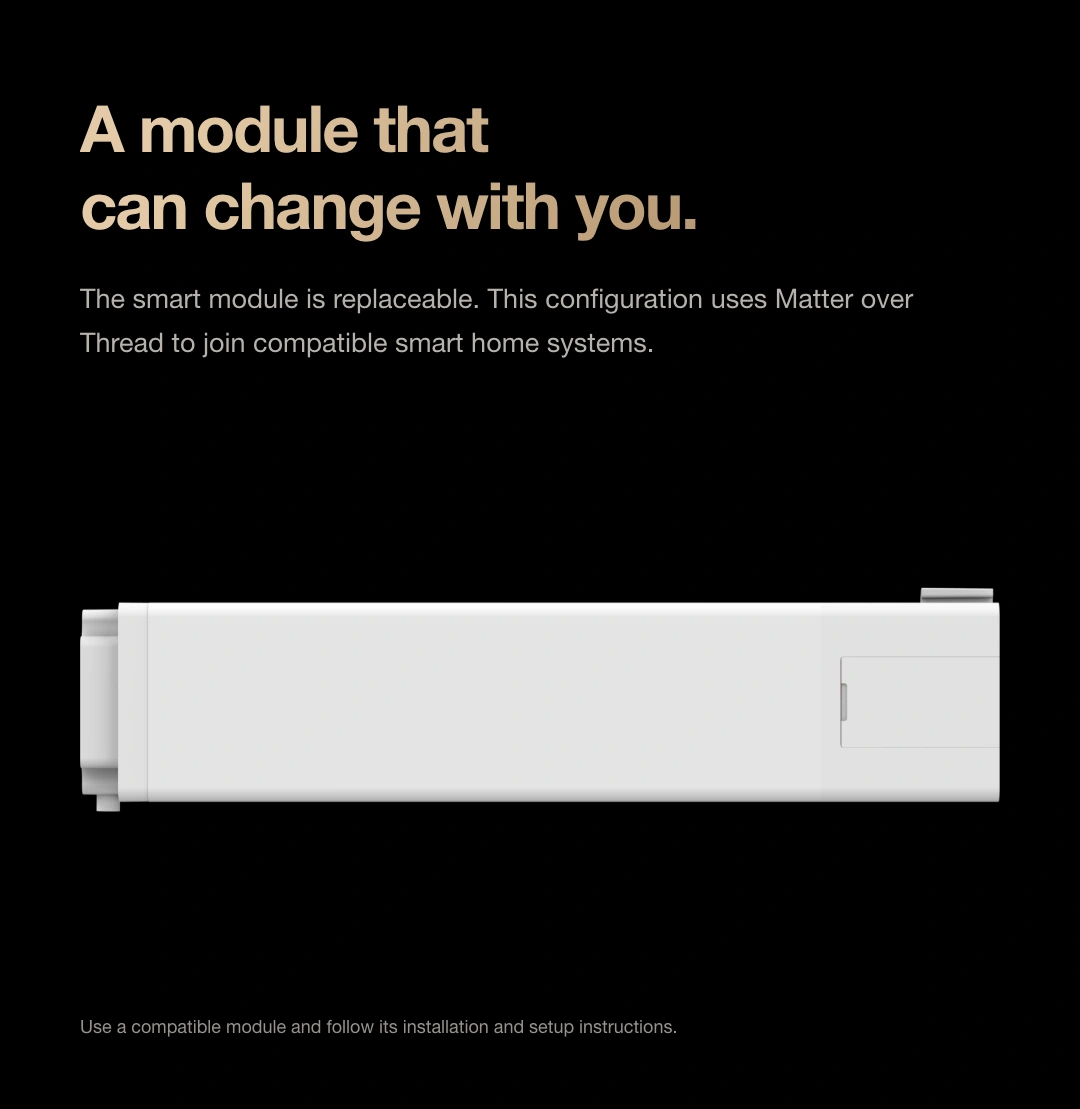

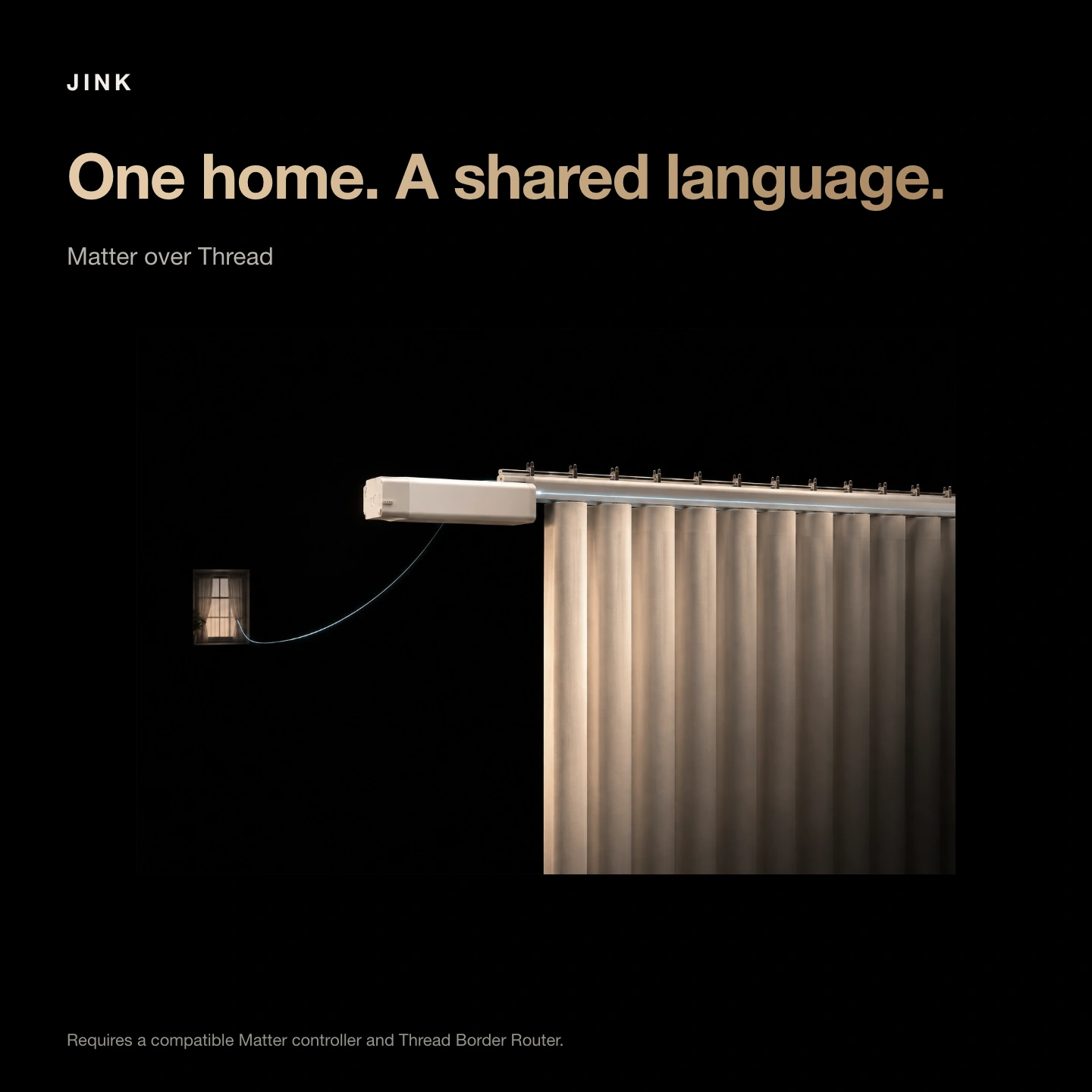

| Smart protocol | Matter over Thread, with the corresponding module configuration |

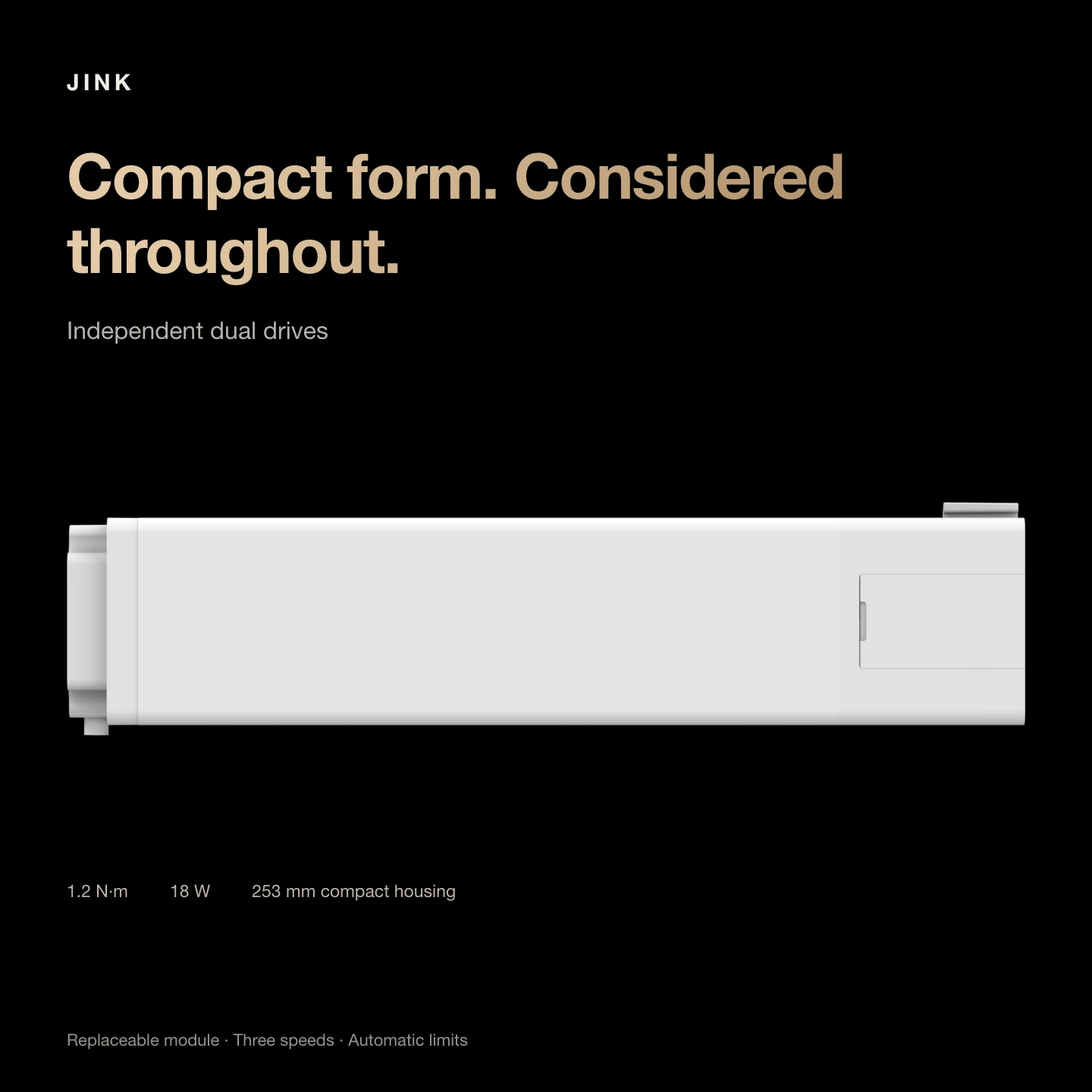

| Rated torque | 1.2 N·m |
| Travel speed | 9 / 12 / 14 cm/s |
| Rated power / Current | 18 W / 0.08 A |
| Power input | 100–240 V / 50–60 Hz |
| Compatible track | Matching straight track; corner tracks are not supported |
| Connection requirements | Compatible Matter controller and Thread border router |
Before purchase and installation

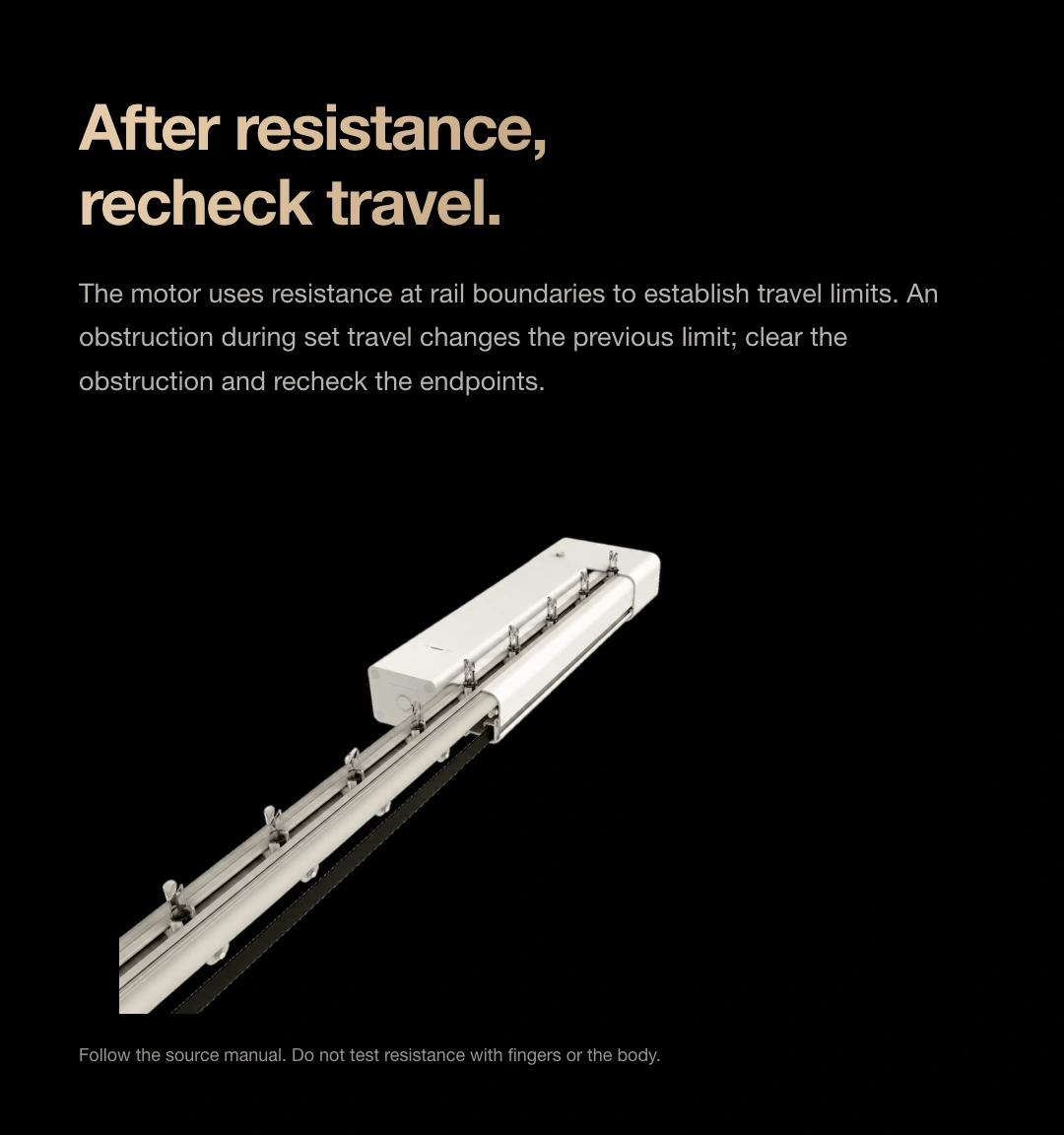

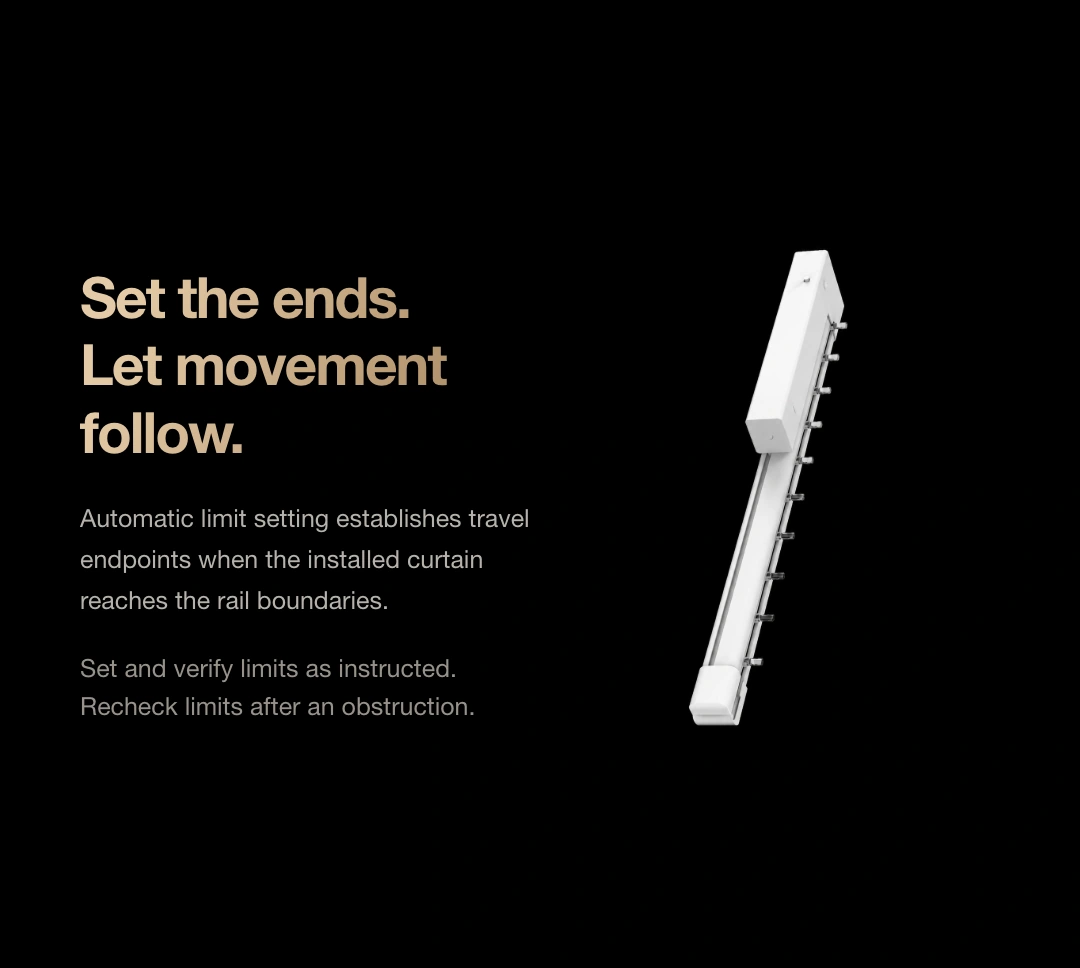

Confirm the matching track, curtain and power configuration for this motor. Corner tracks are not supported. Recheck travel limits after an obstruction. Matter over Thread configurations require a compatible Matter controller and Thread border router.
Check the installation information for your model. For help choosing products, share the product names, quantities, room dimensions and smart home platform.
Downloads & support
Manuals & resources
Choose resources for your product model and version.
Selection references and operating instructions are listed separately.
Share your product model and hardware version so we can help you find the correct installation, pairing and operating instructions.
Keep exploring
View related products
JINK Motor Air Smart Curtain Motor
smart curtain motor
JINK Motor 25 Smart Shade Motor
smart tubular shade motor
JINK telescopic curtain track Telescopic Track
telescopic curtain track
Featured apps
From adding a device to using it every day.
Applies only to the corresponding Matter over Thread module configuration. Confirm whether slat rotation and curtain opening can be controlled separately on your configuration.

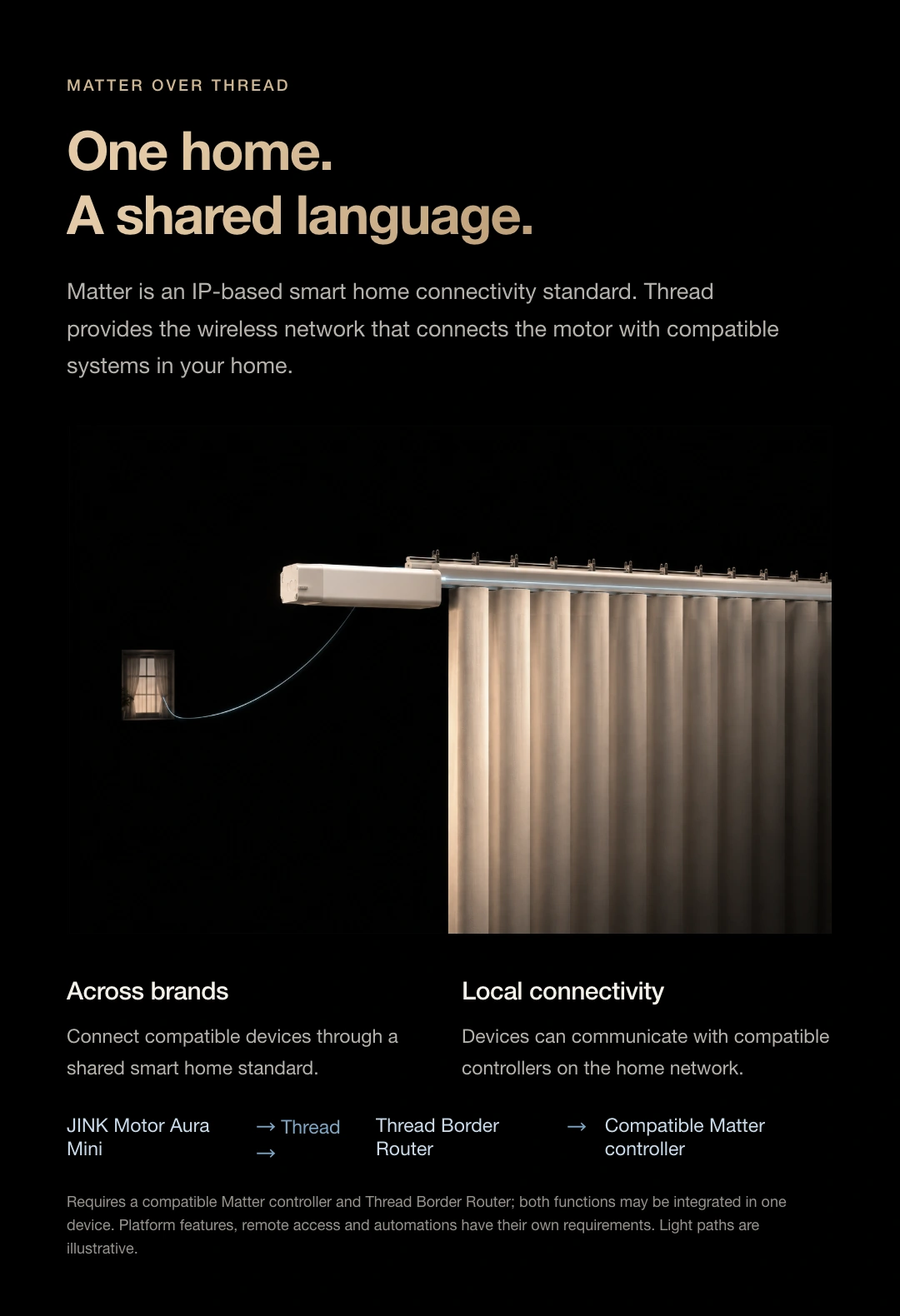

Prepare a compatible Matter controller and Thread border router for this model. One supported device may perform both roles.
HomeApple Home · Matter connection reference
For a Matter device already added to another platform, start shared pairing in that platform, then follow the new platform's instructions. Do not factory-reset solely to change apps. This is a connection overview; available controls depend on your device configuration and platform.
Get connection help for this model
