JINK smart curtain robot ZM86EL-2
Hang it up. Lift the mood.
JINK ZM86EL-2 smart curtain robot adds motorized opening and closing to curtain rods and tracks that meet its fitting requirements. It uses a built-in battery and connects to compatible home systems through Matter over Thread.
JINK smart curtain robot ZM86EL-2
Final pricing and configuration are confirmed by your sales channel and order.
More thought for everyday life.

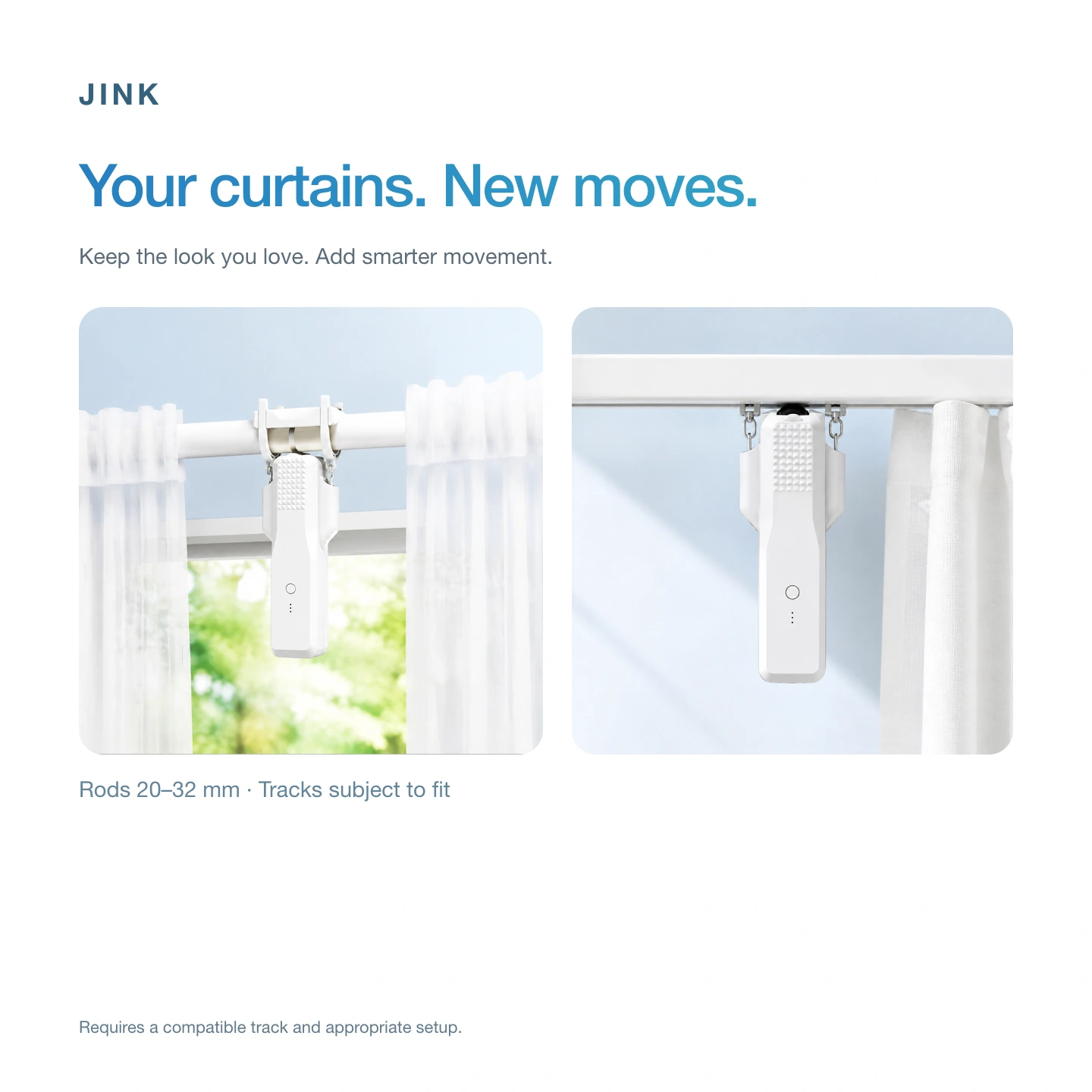

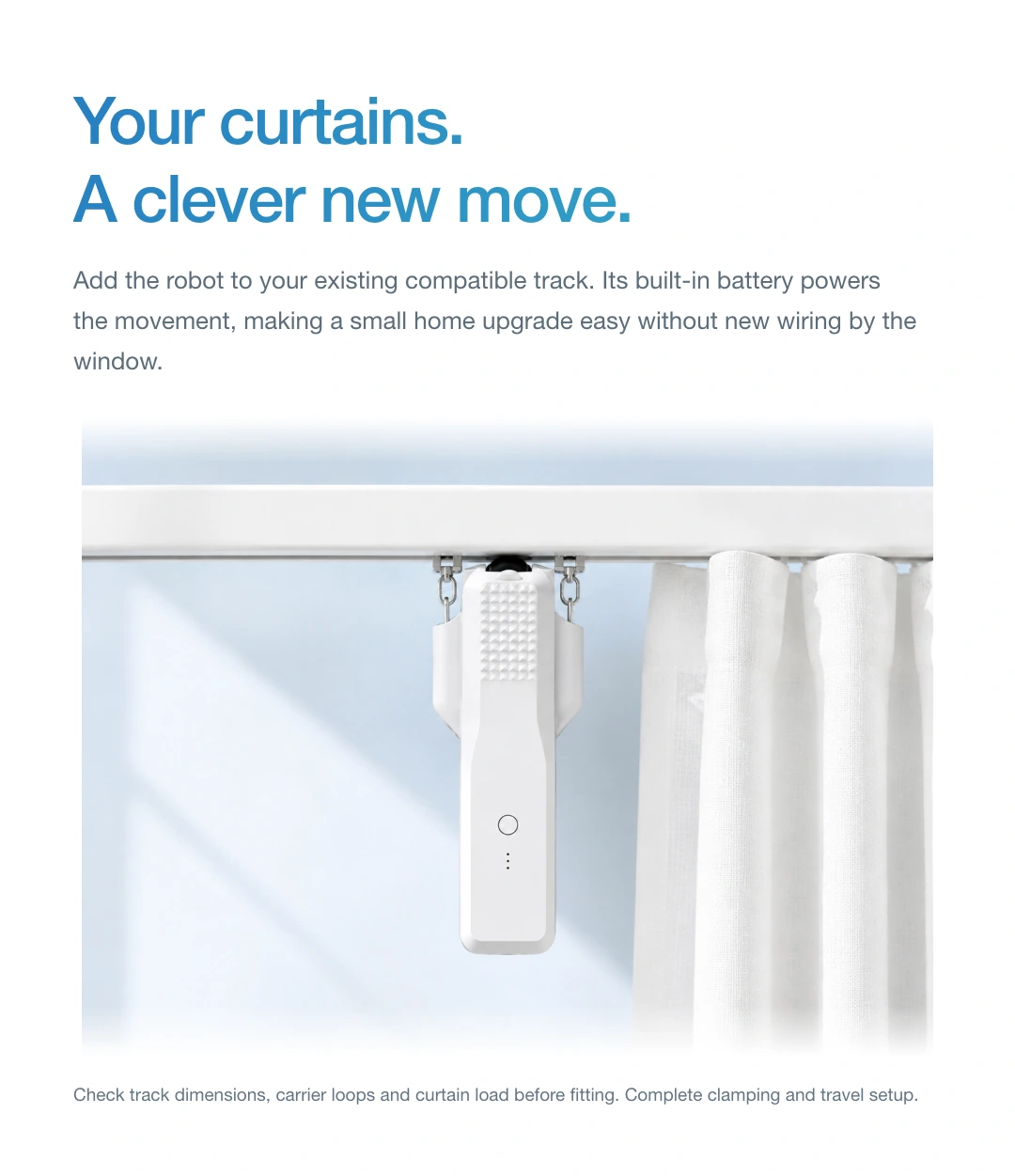

Upgrade the curtains you already love

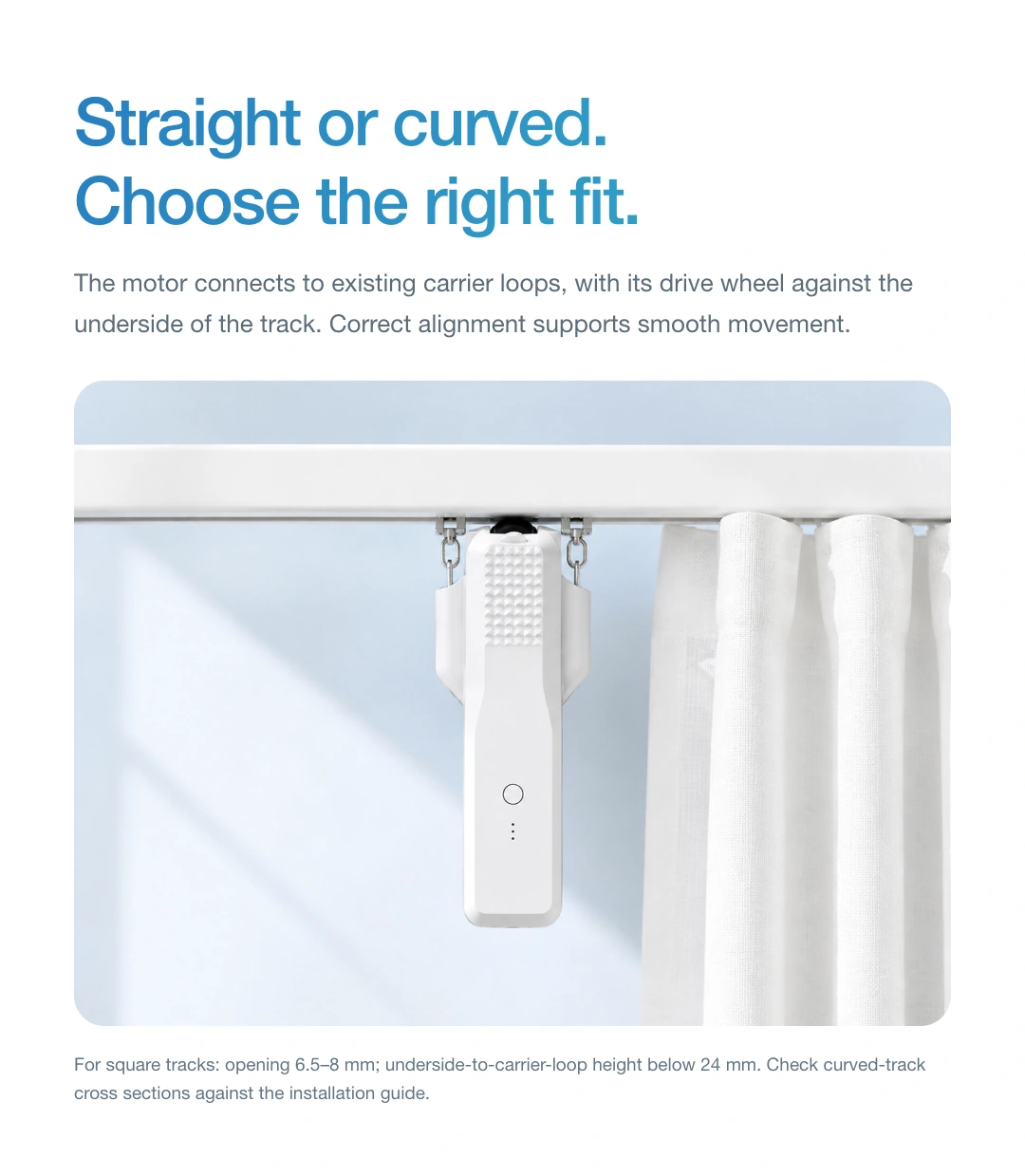

Check the pole diameter, track profile and curtain load, then complete clamping and travel setup.
Power that moves with you

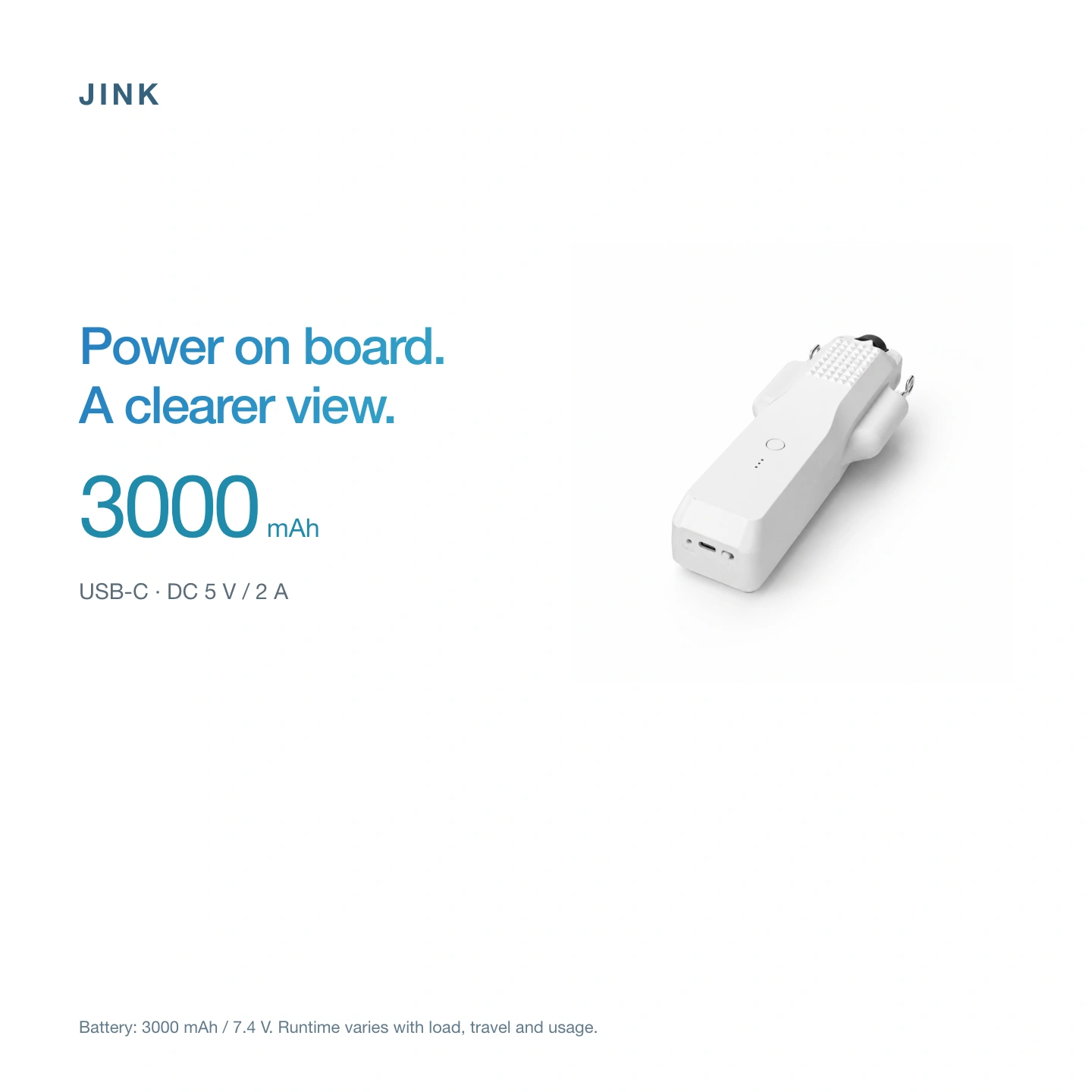

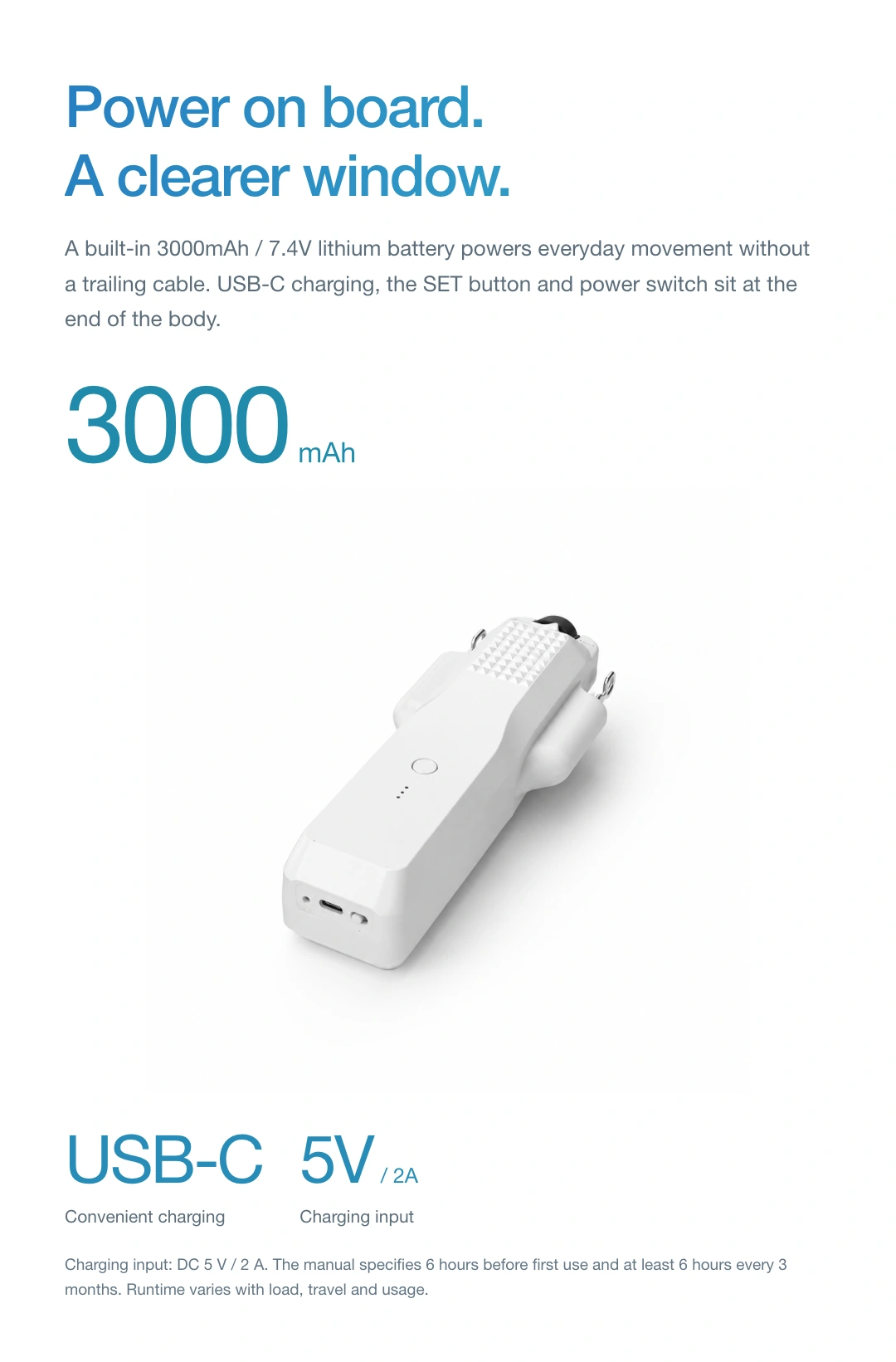

Built-in 3000 mAh / 7.4 V battery with USB-C charging.
Open and close with ease

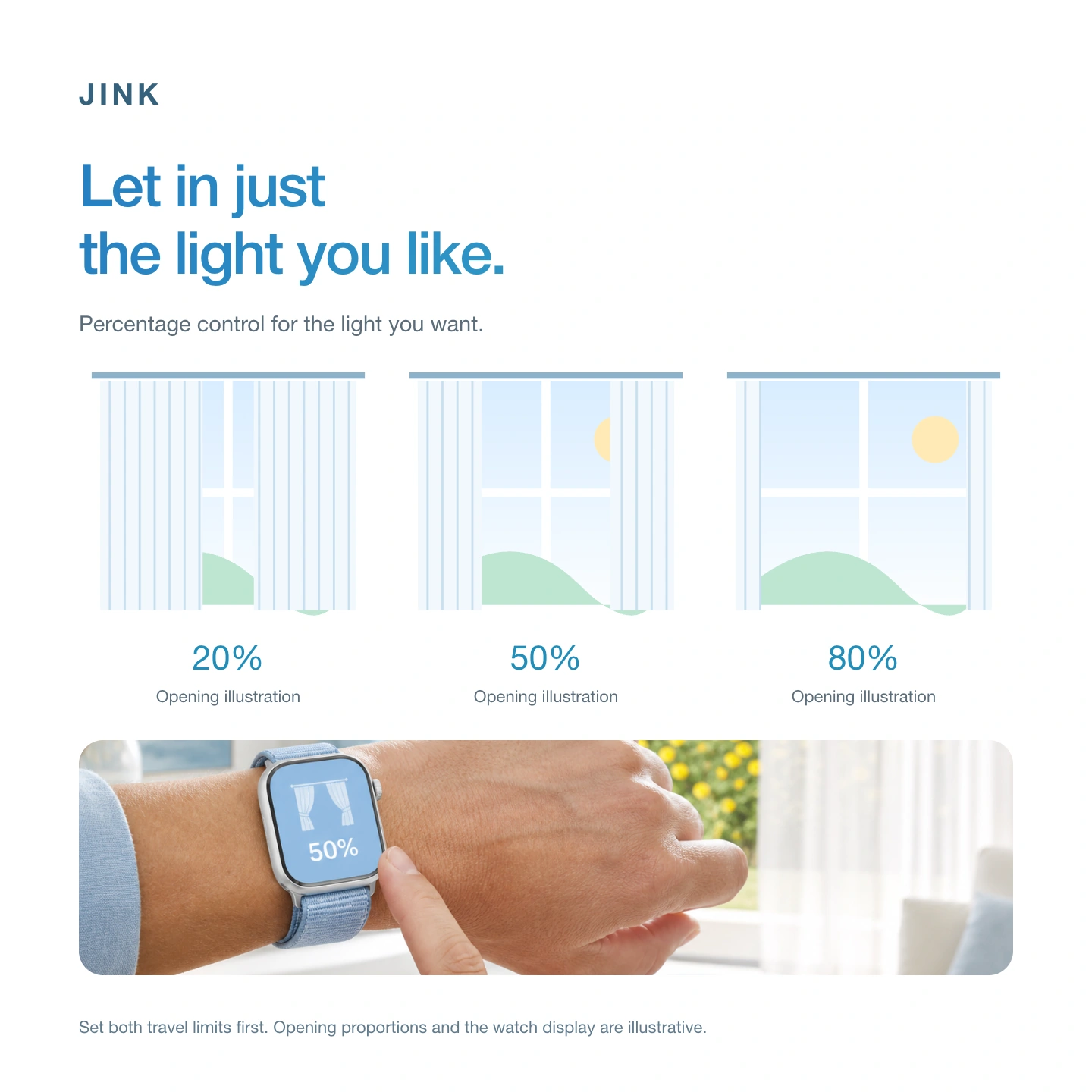

After connection and travel setup, use a compatible platform to control opening, closing and position.
Design · Functions · Life
Take your time to explore every detail.
JINK smart curtain robot ZM86EL-2 · product story
Details and scenes
Explore the product from different angles and see its design and functions in use. Click an image to enlarge it. Configuration depends on the selected model.

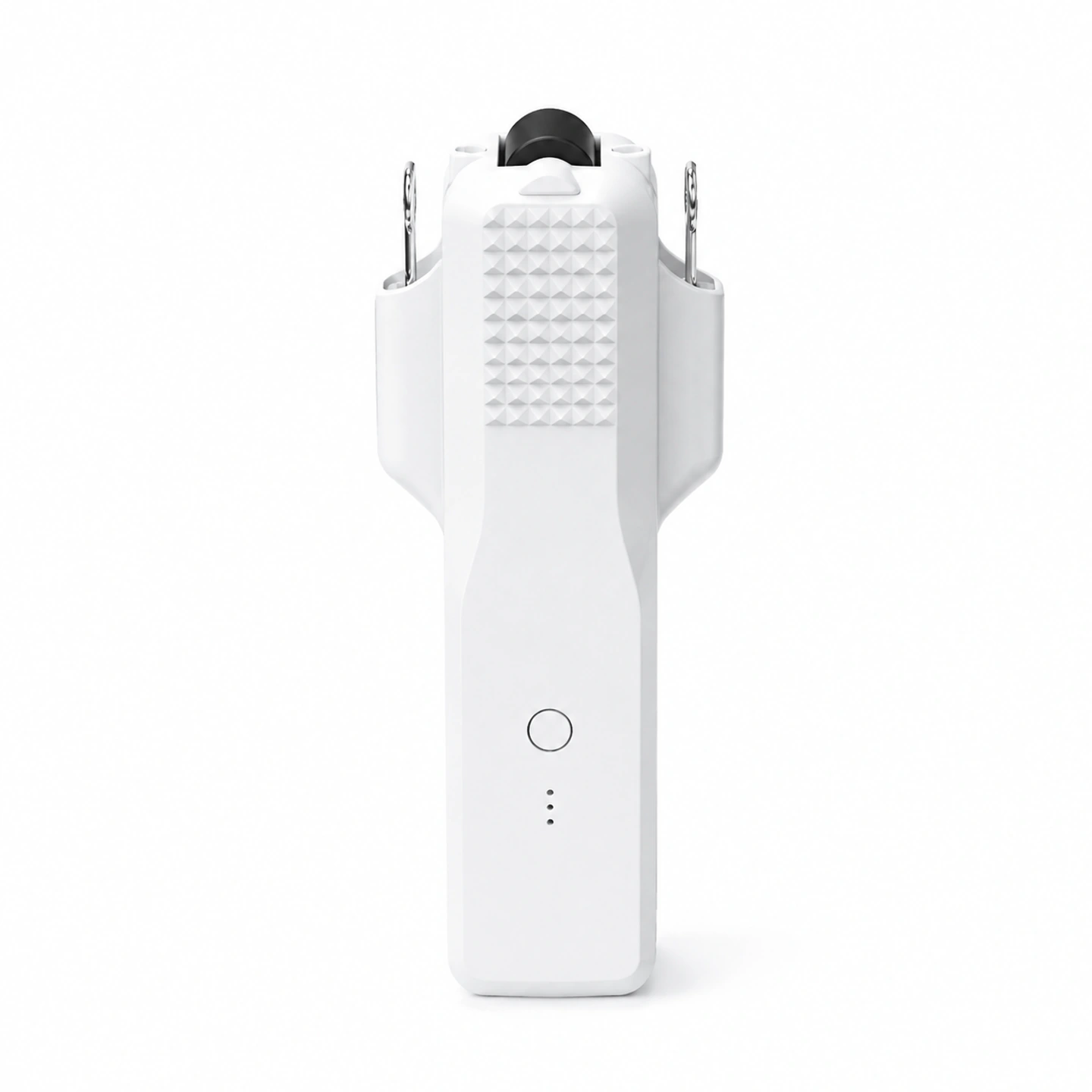

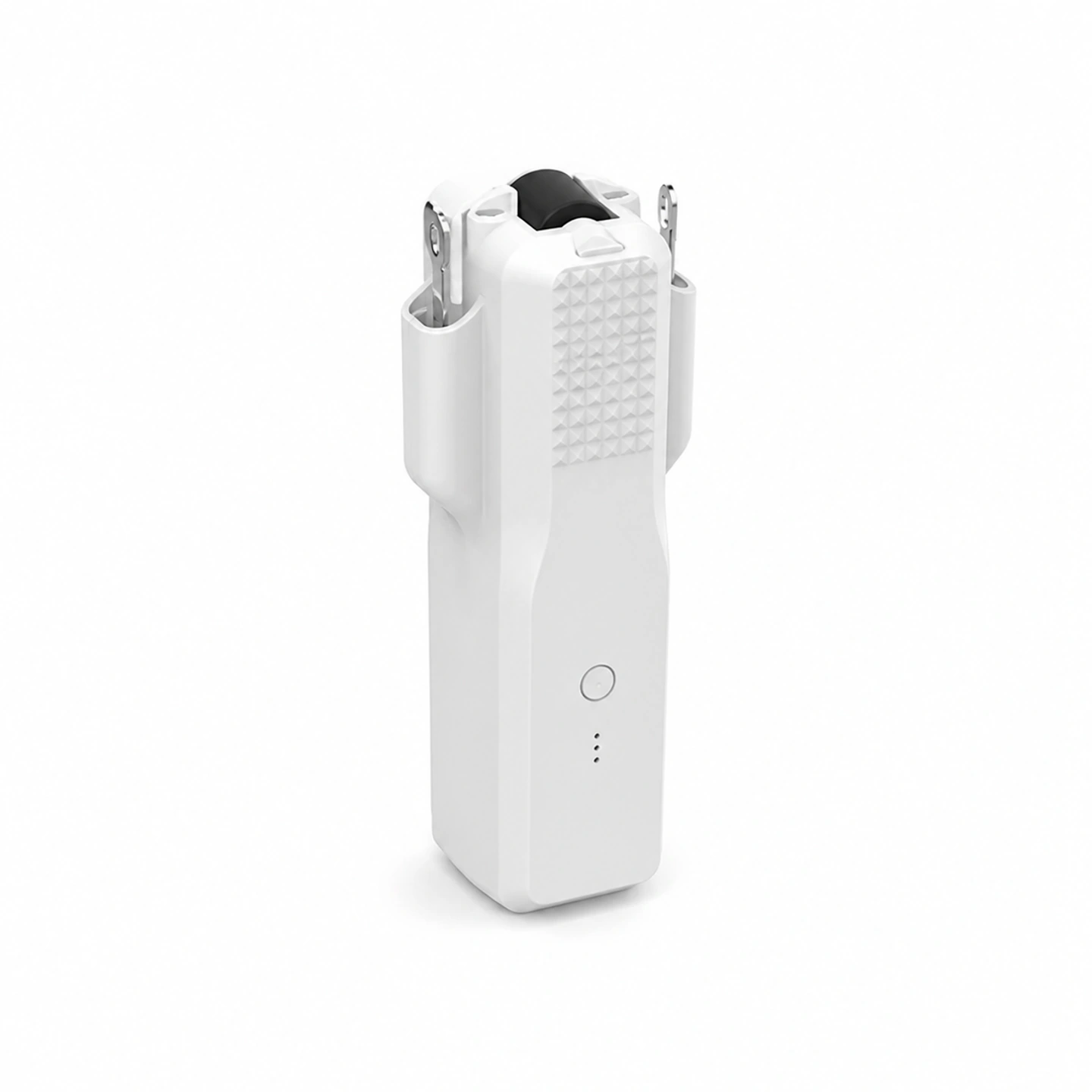

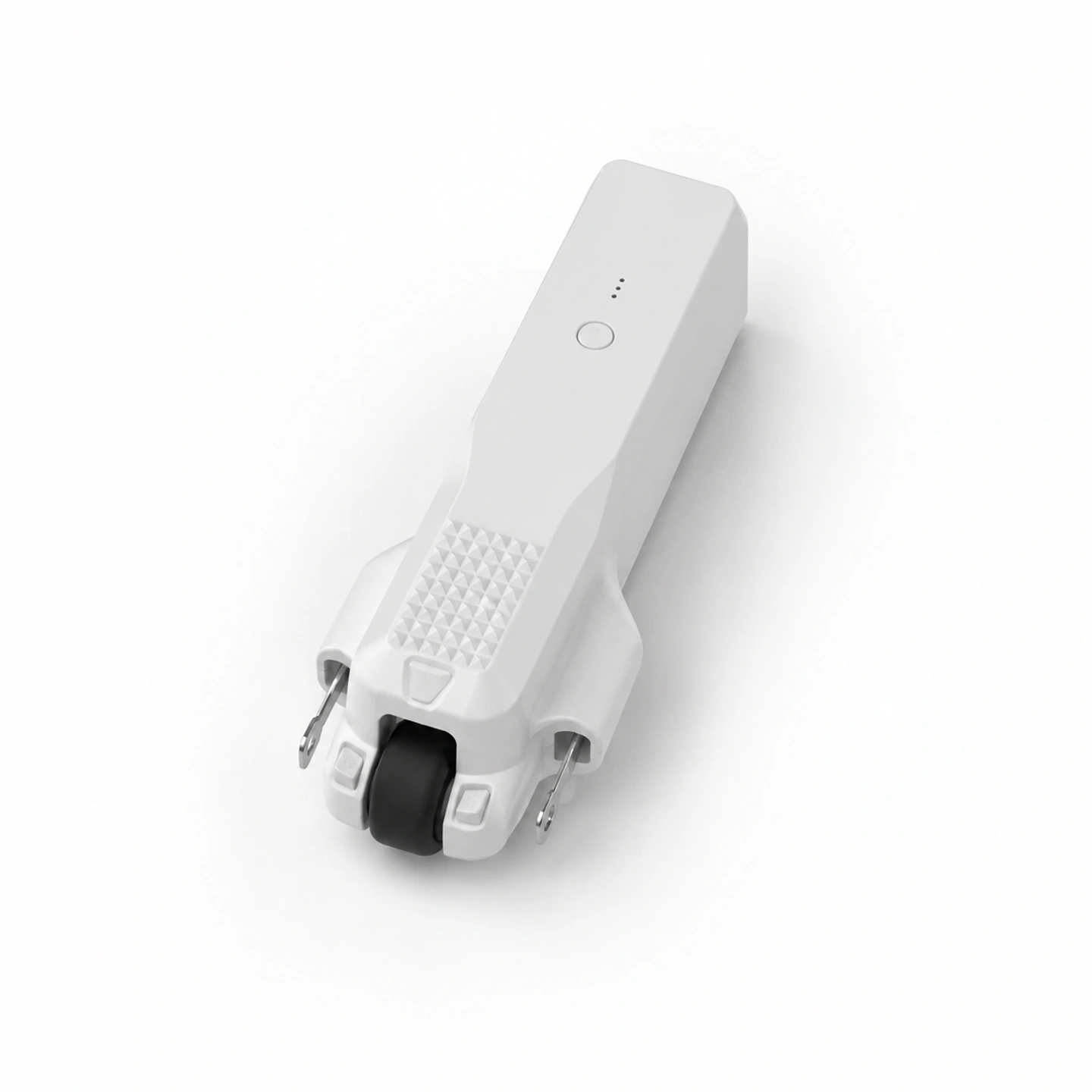

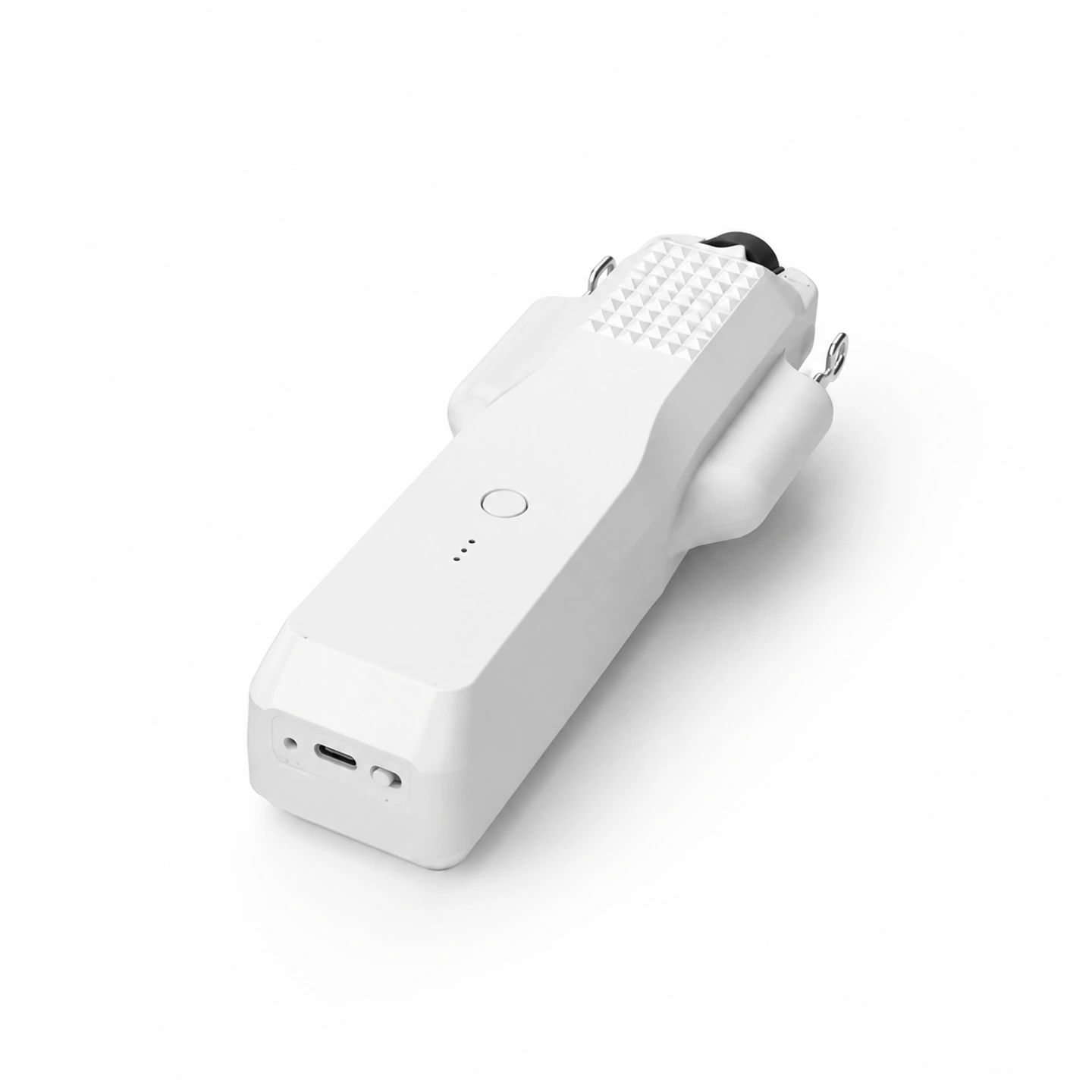

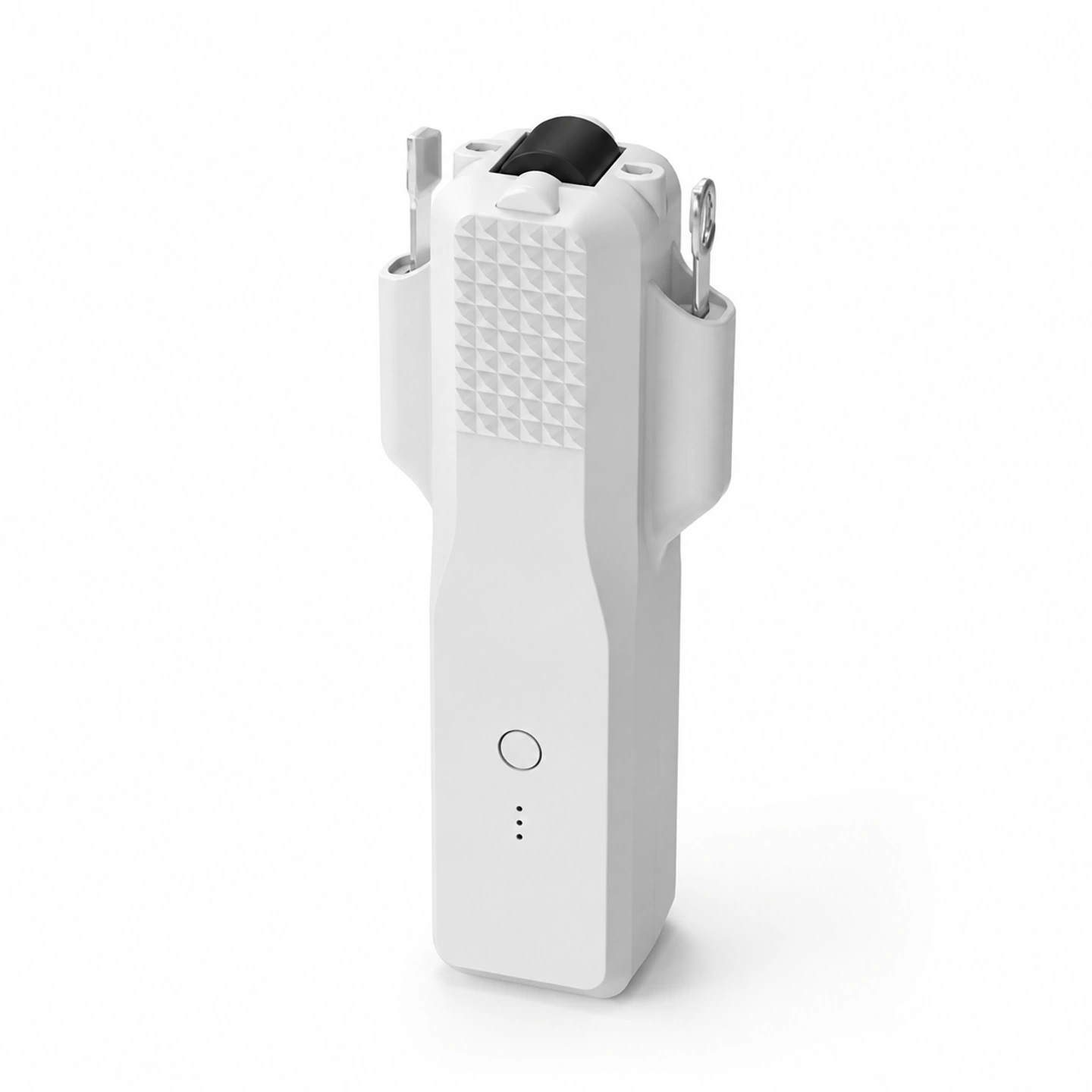

Product details5 images
Highlights5 images

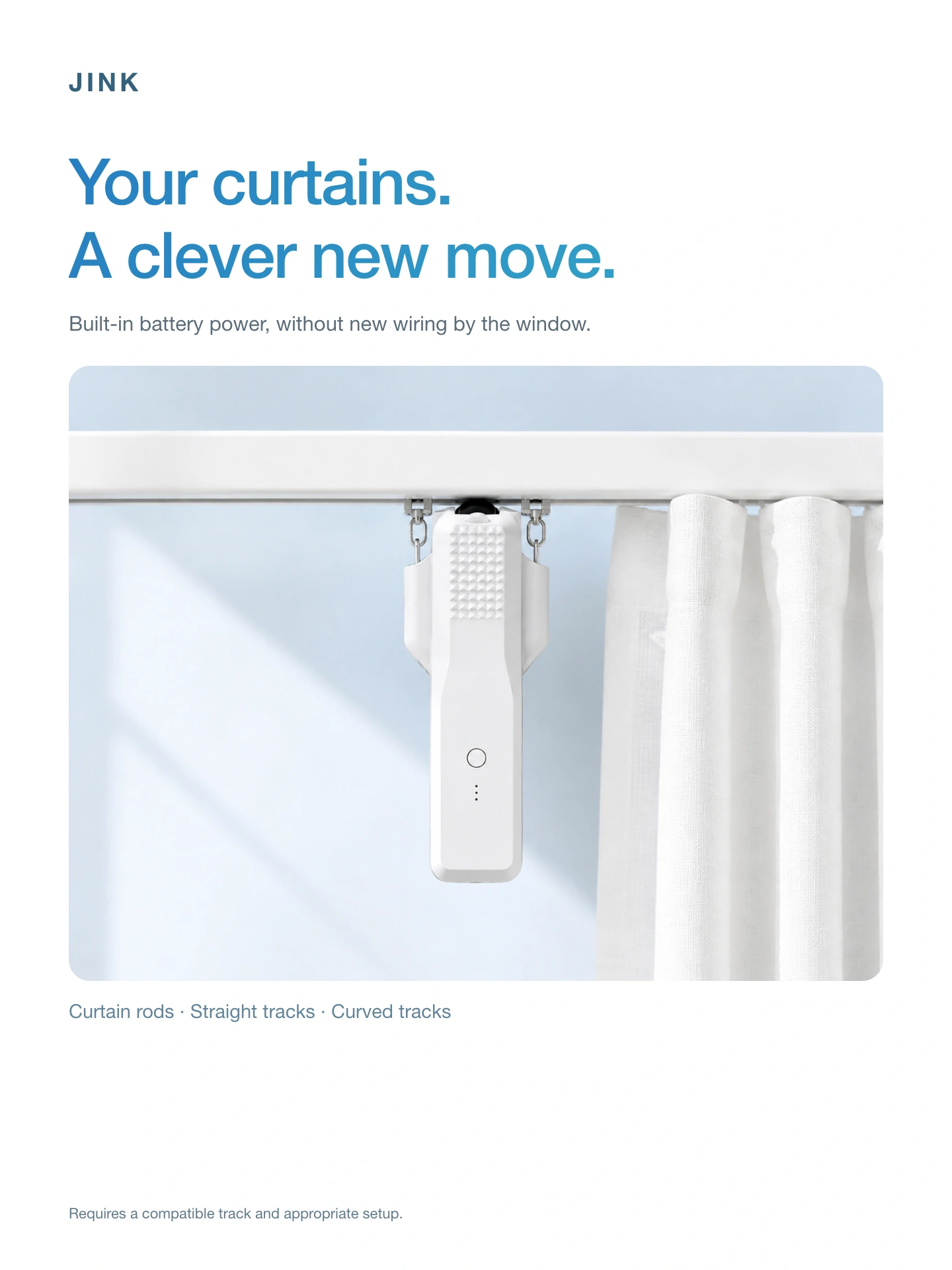

Scenes & features5 images
Selection reference

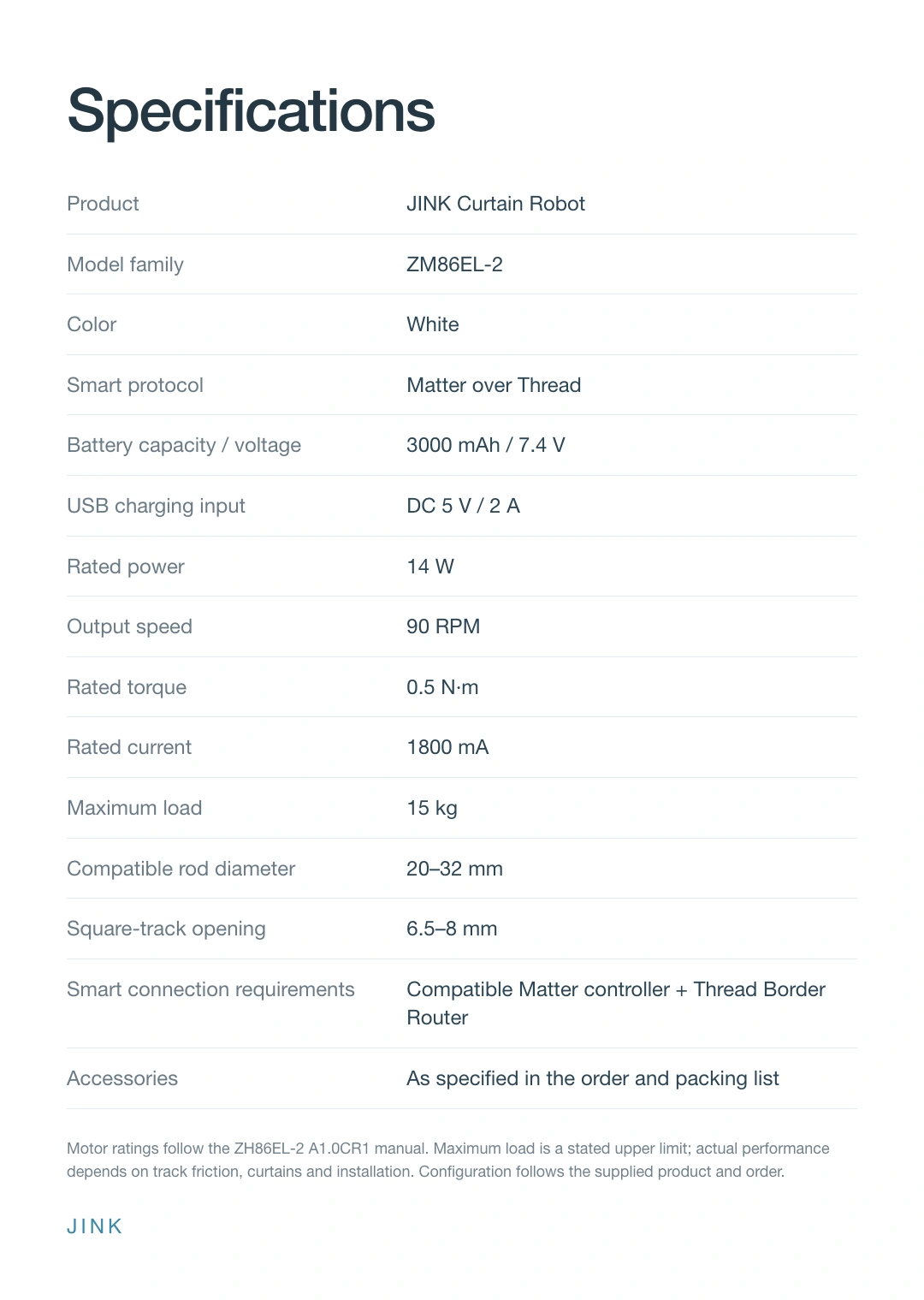

Technical specifications
| Products | JINK curtain robot |
|---|---|
| Model series | ZM86EL-2 |
| Color | White |

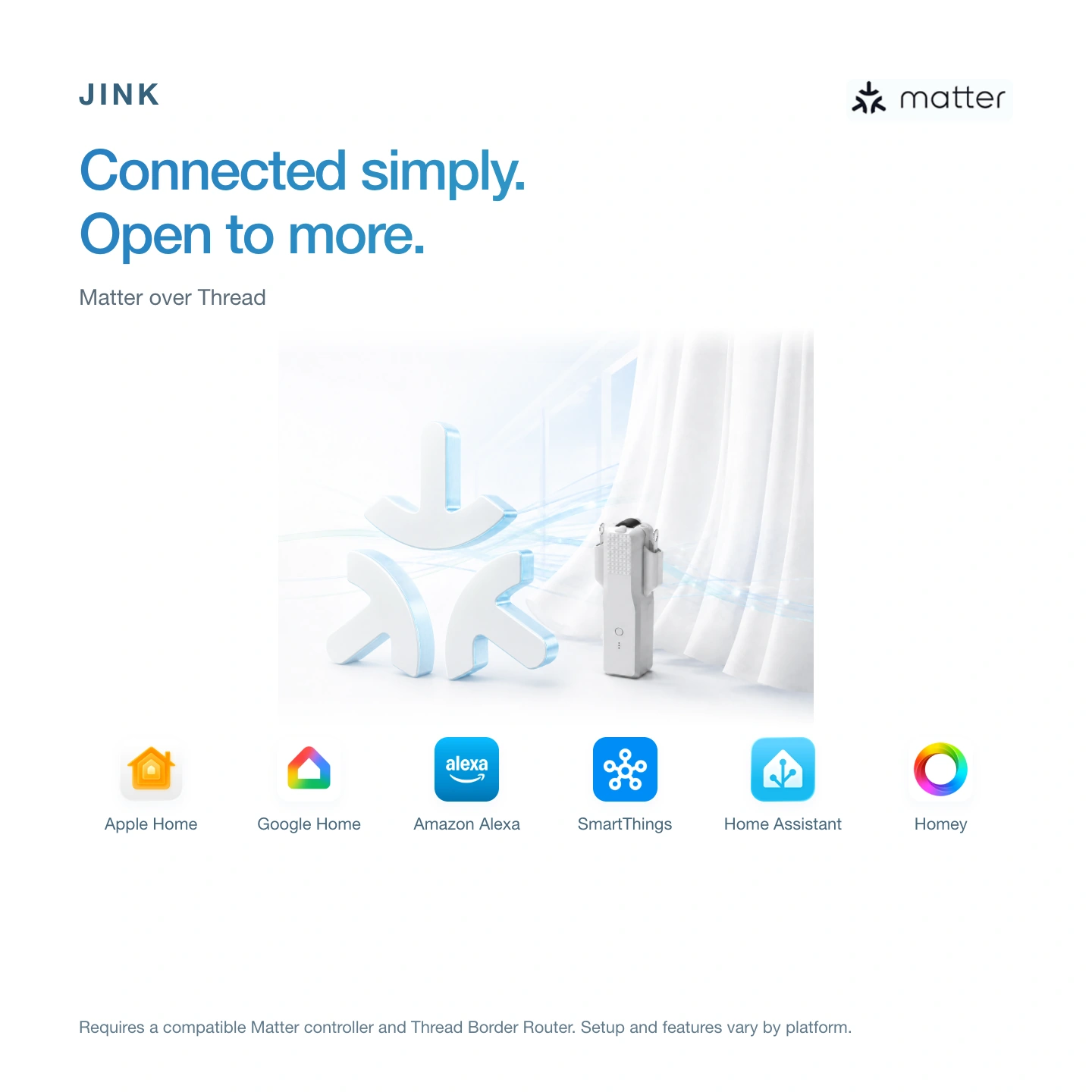

| Smart protocol | Matter over Thread |
| Battery capacity / voltage | 3000 mAh / 7.4 V |
| USB charging input | DC 5 V / 2 A |
| rated power | 14 W |
| Output speed | 90 RPM |
| Rated torque | 0.5 N·m |
| Rated current | 1800 mA |
| Maximum load | 15 kg |

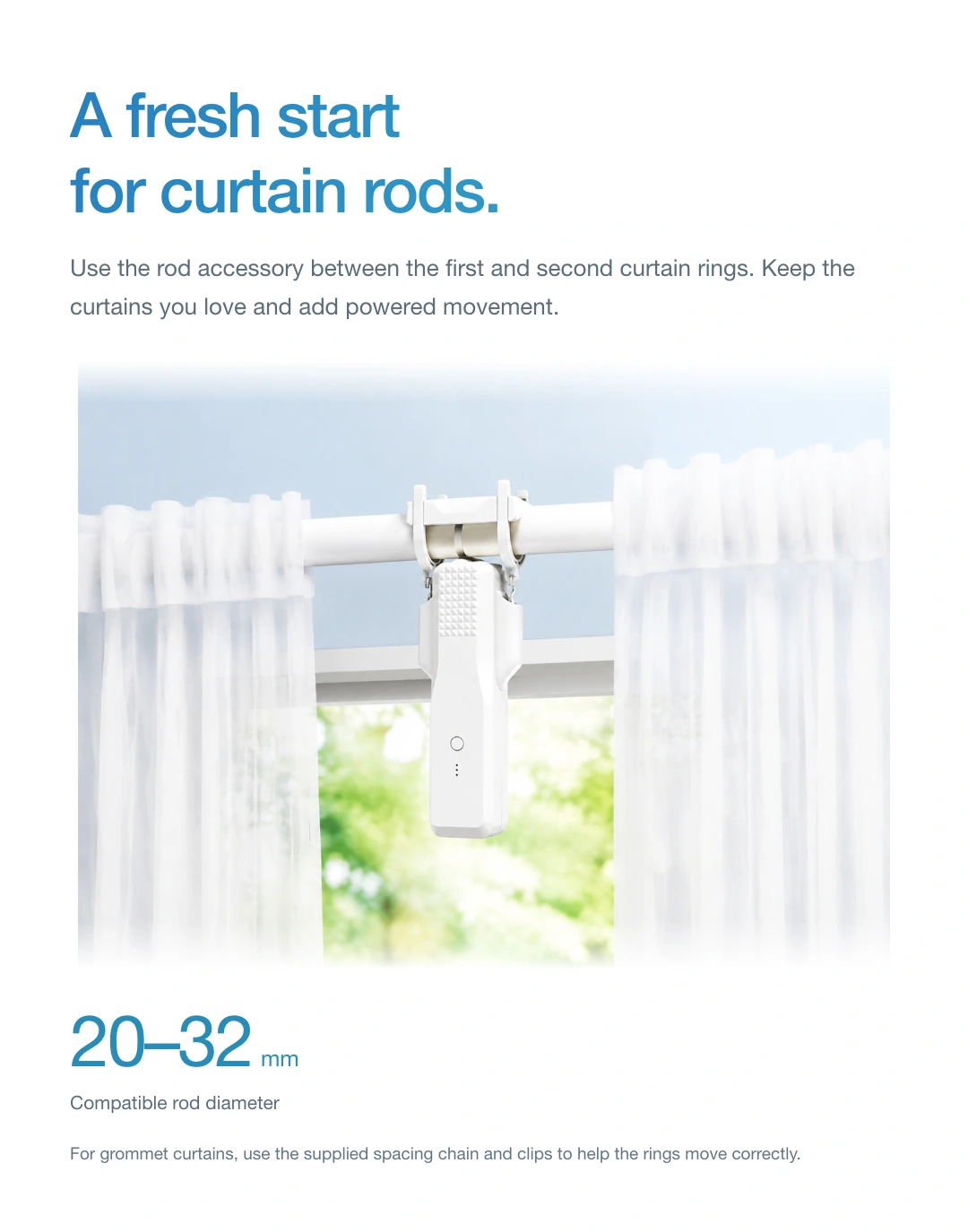

| Compatible curtain-pole diameter | 20–32 mm |
| Square-track opening | 6.5–8 mm |
| Smart connection requirements | Compatible Matter controller + Thread border router |
| Accessory configuration | Subject to the confirmed order and packing list |
Before purchase and installation
Before installation, check the pole diameter, track opening, ring height and curtain load. Matter over Thread configurations require a compatible Matter controller and Thread border router. Available functions depend on the platform.
Check the installation information for your model. For help choosing products, share the product names, quantities, room dimensions and smart home platform.
Downloads & support
Manuals & resources
Choose resources for your product model and version.
Selection references and operating instructions are listed separately.
Share your product model and hardware version so we can help you find the correct installation, pairing and operating instructions.
Keep exploring
View related products
JINK Motor Air Smart Curtain Motor
smart curtain motor
JINK Motor 25 Smart Shade Motor
smart tubular shade motor
JINK telescopic curtain track Telescopic Track
telescopic curtain track
Featured apps
From adding a device to using it every day.
Complete installation, direction checks and travel-limit setup according to the device manual before pairing. Available controls and automations depend on the version and platform.

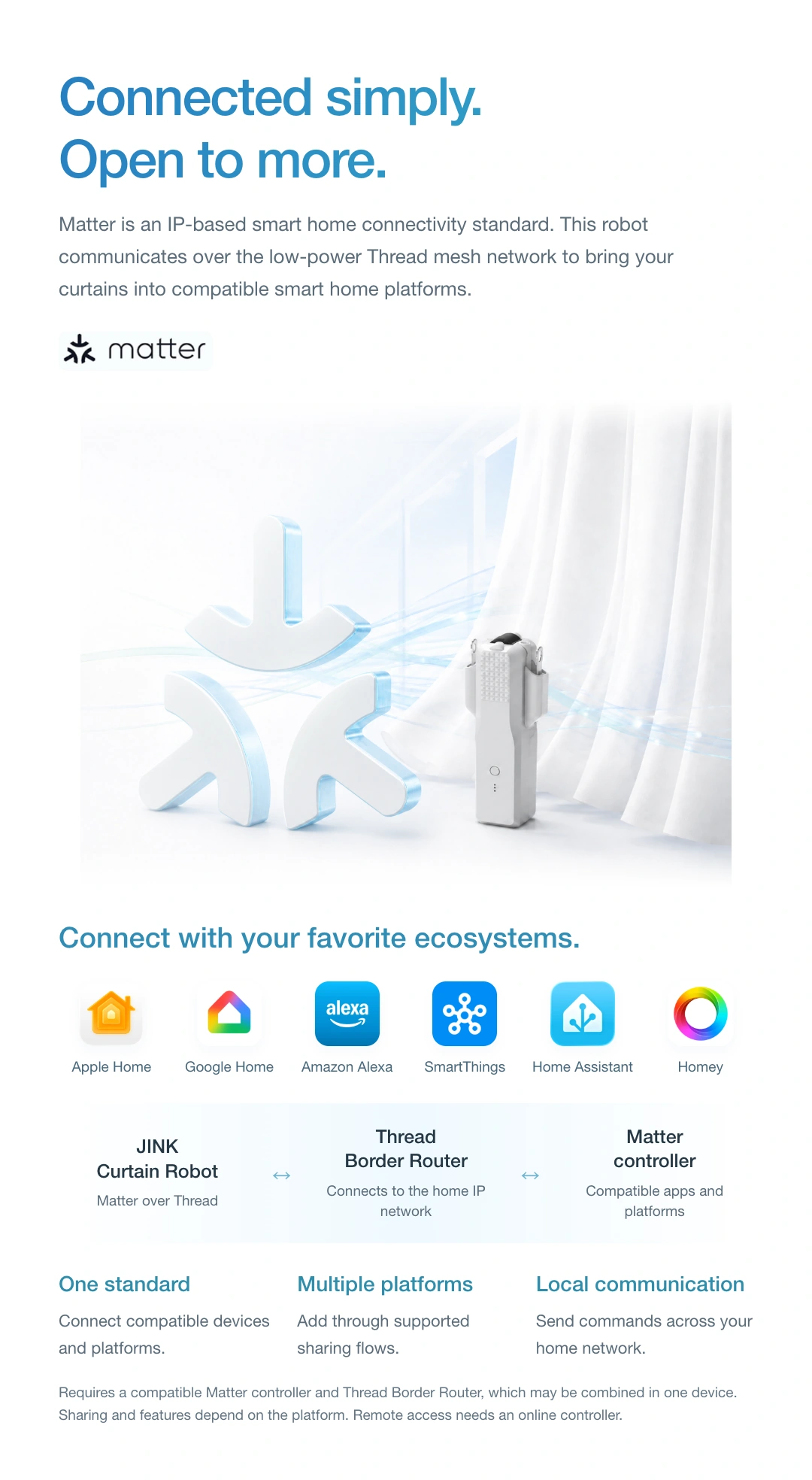

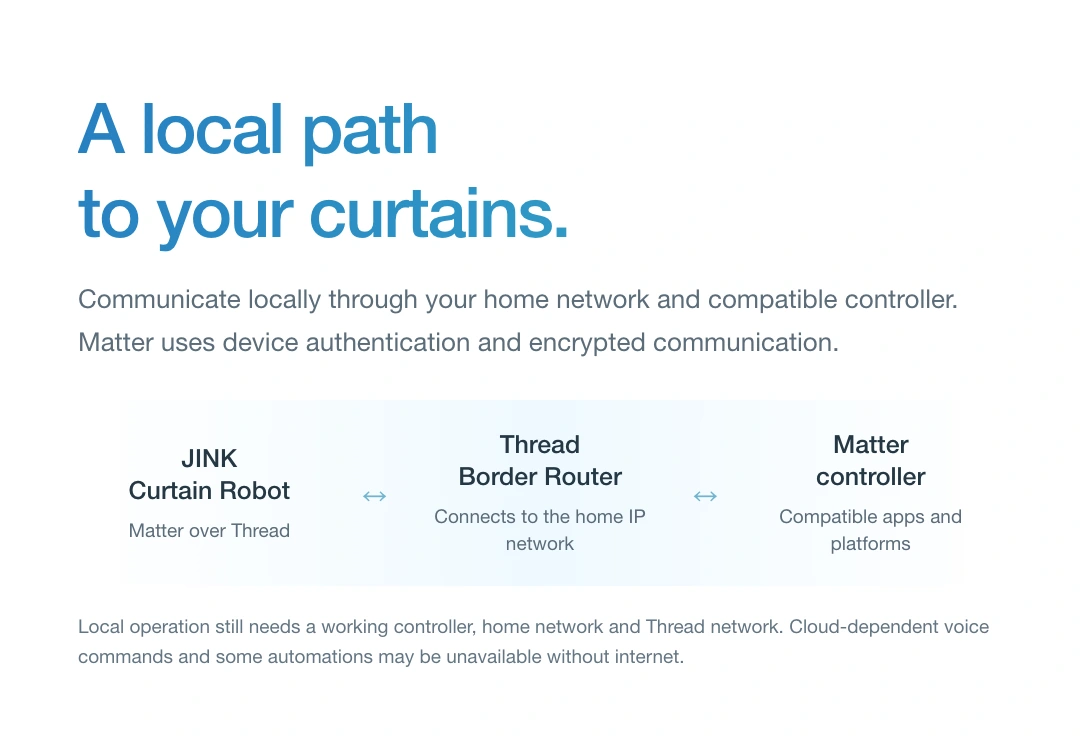

Prepare a compatible Matter controller and Thread border router for this model. One supported device may perform both roles.
HomeApple Home · Matter connection reference
For a Matter device already added to another platform, start shared pairing in that platform, then follow the new platform's instructions. Do not factory-reset solely to change apps. This is a connection overview; available controls depend on your device configuration and platform.
Get connection help for this model
