Warm light falls on dark rock, revealing its layered surface

JINK Flagship Architectural Lighting

DOT
STEALTH.

Name: JINK Dot Stealth Recessed Downlight
Brand: JINK

Light, within the architecture.

Moonlight among the pines; a clear spring flowing over stones.Wang Wei · Autumn Evening in the Mountains

Let light reveal materials, while the space stays calm.
Build layers of light in your home.

Explore the possibilities of light

Dot Stealth JK-S11-12 round adjustable downlight

Quiet in the ceiling. Present in the light.JINK Dot Stealth

Apple HomeExplore the Home app

Give light room to perform.

See the finer side of light.
See less of the luminaire.

A deeply recessed source, precise light control and an all-aluminium body. Dot Stealth brings architectural lighting into a simple ceiling, giving wall textures, objects and everyday moments their own light.

< 10UGR glare rating · Under test conditions

98Ra · Measured HB-S11-12W cool-white sample

2700–6000KAdjustable colour temperature · Driver included

18Models · Architectural forms

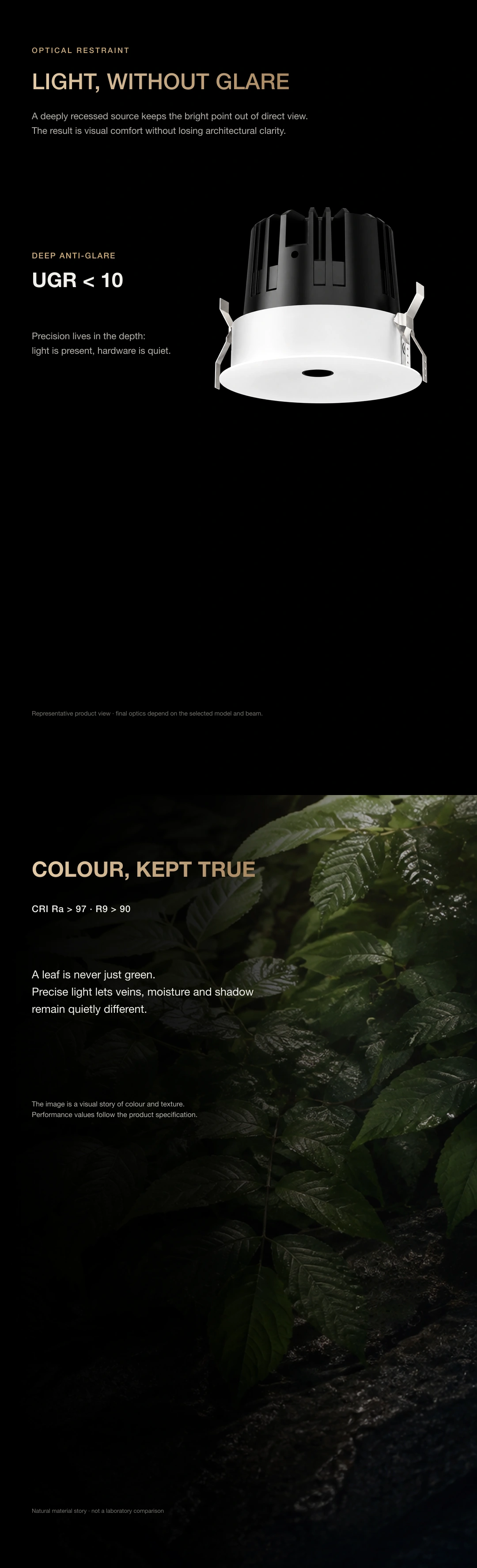

Dot Stealth deep anti-glare fixed model with a deeply recessed light source

JK-S11B-12 · Deep anti-glare fixed beam

Deeply recessed source · Controlled glare

The luminaire steps back.
Life moves forward.

A deeply recessed light source draws the space in a more comfortable light. Sit, talk or read, with attention on people and objects rather than bright points overhead.

UGR < 10

UGR is a glare rating. Perceived glare also depends on luminaire placement, viewing direction and room reflectance.

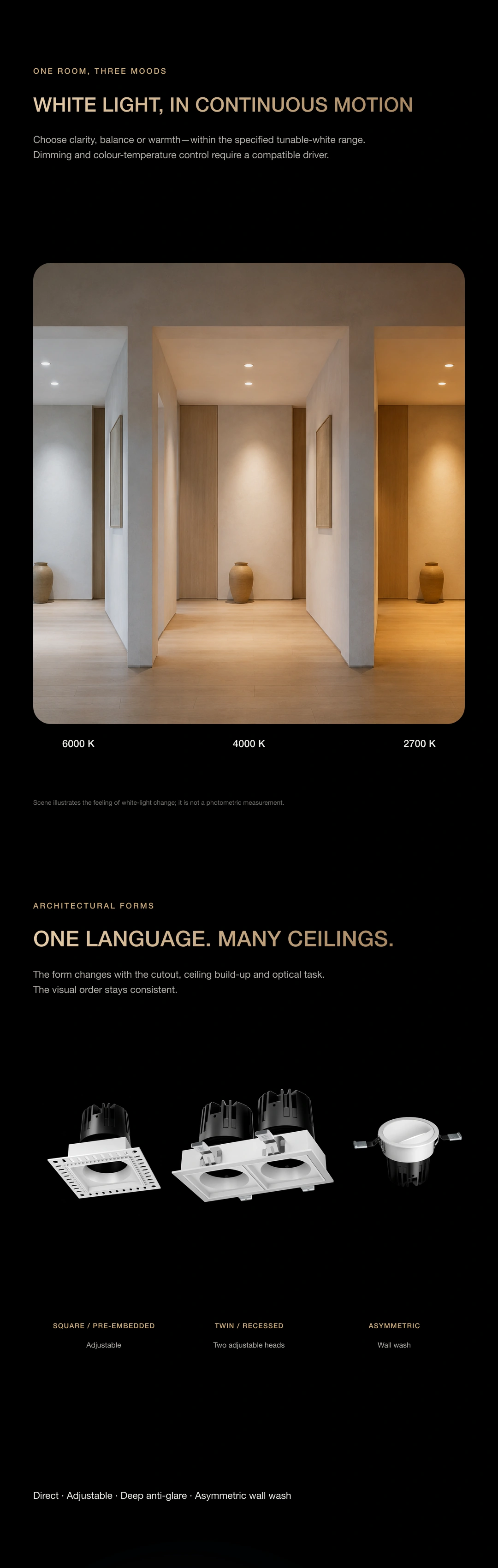

Light that moves with the day.

From focus
to relaxation.

Clear white for focus. Soft warmth for evening. Slide to find the light for now.

Light illuminates a niche, pottery and wooden walls to illustrate different colour temperatures — Illustrative lighting effect3200 K · 75%

Your light, for this moment.

color temperature 3200 K

2700 K · warm white6000 K · cool white

Explore brightness 75%

Low brightnessBright

Find comfortable lighting for this space.

A driver is included. This display illustrates brightness and 2700–6000 K colour temperature changes. Actual dimming range depends on the supplied driver's configuration.

Put light where it belongs.

A beam of light.
Four expressions.

Focus on a collectible, illuminate a painting or spread a gentle brightness. Different beam angles give light different roles in a space.

Geometric projection only; this does not represent actual illuminance, beam edges or photometric curves.

A balanced 36° beam for layered lighting.

Perpendicular projection distance 3.0 mLuminaire tilt 0°

Adjustable models support up to 30° of aiming adjustment. Choose fixed-beam and asymmetric wall-wash models according to their optical design. Beam angle depends on the ordered configuration. Perpendicular beam diameter is estimated as 2 × distance × tan(beam angle ÷ 2).

Light reveals the fine textures of vivid green leaves and dark rock

True colours. Considered light.

Even a leaf
has many layers.

The depth of leaf veins, the warmth of wood and the fine variations in fabric. A high colour rendering light source brings their appearance closer to their natural colours.

Ra 98Measured HB-S11-12W cool-white sample

Ra 95.23Measured HB-S11-12W warm-white sample

View colour rendering and spectral tests ↗

JINKHOME · HB-S11-12W Optical Testing

The character of light,
See every detail.

From warm- and cool-white spectra and colour rendering to beam distribution, illuminance and coverage in darkroom tests. Explore light through measurements of specific samples.

These results apply to the HB-S11-12W samples tested on 18 May 2026. They do not represent other powers, optical configurations or every model. Spectral and darkroom photometric data come from separate test records and retain the values in their respective reports.

Warm and cool white, measured separately.

Relative spectral distribution

2700 K warm whiteHB-S11-12W-2700K · Sample 3

Measured colour temperature: 2732 K
Ra: 95.23
R9: 93
Luminous flux: 433.32 lm

6000 K cool whiteHB-S11-12W-6000K · Sample 4

Measured colour temperature: 6315 K
Ra: 98
R9: 96
Luminous flux: 497.491 lm

━ 2700 K warm white┄ 6000 K cool white

Inspect wavelength 550 nm

Curves are digitised from the report charts. Cursor readings are approximate chart values, not raw instrument samples. The horizontal axis shows wavelength in nm and the vertical axis relative intensity. Each curve is independently normalised to a peak of 1 and cannot compare absolute radiant power.

R1–R15 color rendering index

Each bar represents a special colour rendering index. Ra and R9 are listed separately. The chart axis starts at zero.

View colour rendering and full colour/electrical parameters

R1–R15 · Reported values
Index	2700 K warm white	6000 K cool white
R1	96	97
R2	96	98
R3	97	100
R4	96	98
R5	95	98
R6	91	97
R7	95	98
R8	96	98
R9	93	96
R10	91	96
R11	91	96
R12	86	83
R13	95	97
R14	99	100
R15	99	96

Colour and electrical parameters · By sample
Item	2700 K warm white	6000 K cool white
Measured correlated colour temperature	2732 K	6315 K
General colour rendering index Ra	95.23	98
Special colour rendering index R9	93	96
Luminous flux (380–780 nm)	433.32 lm	497.491 lm
Luminous efficacy	34.07 lm/W	39.11 lm/W
Electrical power	12.72 W	12.72 W
Voltage	220 V	220.2 V
Current	63 mA	63 mA
Power factor	0.907	0.907
Radiant power (380–780 nm)	1.517 W	1.699 W
Peak wavelength	630.8 nm	451.1 nm
Dominant wavelength	584.9 nm	488.6 nm
Half-width	142.5 nm	27.9 nm
Chromaticity x	0.4524	0.3162
Chromaticity y	0.4011	0.3292
Chromaticity coordinate u′	0.2619	0.2002
Chromaticity coordinate v′	0.5225	0.469
SDCM	4.8	7.5
SDCM reference	ANSI 2700 K	ANSI 6500 K

JINKHOME product test data: spectral, colour and electrical parameters based on two electric light source test reports. Test range 380–780 nm in 1 nm intervals; Tg 24.2°C, Ta 24.6°C, RH 60%. SDCM uses the ANSI 2700 K and ANSI 6500 K reference points stated in the respective reports.

JINKHOME · Darkroom test data

Darkroom luminous intensity and light distribution

Photometric plane

HB-S11-12W · Darkroom test, based on the indoor luminaire test report. Total luminous flux in this dataset is 659.25 lm. It is separate from the two spectral reports above and does not replace their warm- and cool-white results.

Peak luminous intensity: 2583 cd
Average beam angle · 50%: 27.2°

Total luminous flux: 659.25 lm
Electrical power: 12.10 W
Luminous efficacy: 54.5 lm/W
Downward light output ratio: 98.3%

Inspect angle γ 15°

The interactive curves use the 5° sample intervals in the luminous intensity table on page 3. Adjacent readings are connected by straight lines, without inventing a 0° reading. Peak intensity and average beam angle are quoted from page 1. The cursor reads table values; it does not recalculate beam angles.

View the complete intensity table for eight C-planes

HB-S11-12W · Luminous intensity in cd · Source report, page 3
γ	C0	C45	C90	C135	C180	C225	C270	C315
5°	2562	2370	2144	1951	1942	2099	2292	2485
10°	2215	1921	1606	1310	1287	1492	1781	2091
15°	1632	1332	1004	717	684.2	882.8	1146	1505
20°	996.9	770.2	509	310.8	283.1	410.3	596	889.3
25°	500	349.2	211.8	107.2	99.7	165.2	246.8	430.3
30°	169.5	122.8	77.07	38.11	26.74	61.95	84.69	158.3
35°	15.48	28.67	33.15	4.114	3.267	13.43	31.33	33.88
40°	8.228	0	8.712	0.121	1.815	6.655	4.598	7.623
45°	6.292	0	5.566	0	0.968	5.203	0.242	5.445
50°	5.082	0	4.719	0	0.363	4.477	0	4.356
55°	4.114	0	4.114	0	0	3.509	0	3.509
60°	3.63	0	3.63	0	0	2.783	0	2.904
65°	3.267	0	3.146	0	0	2.299	0	2.42
70°	2.904	0	2.662	0	0	2.057	0	2.178
75°	2.662	0	2.178	0	0.121	1.815	0	1.936
80°	2.42	0	1.815	0	0.121	1.573	0	1.815
85°	2.299	0	1.694	0	0.121	1.573	0	1.573
90°	1.936	0	1.331	0	0.121	1.21	0	1.452
95°	1.694	0	1.089	0	0.242	1.21	0	1.21
100°	1.452	0	0.847	0	0.242	1.089	0	1.089
105°	1.21	0	0.726	0	0.484	1.089	0	1.089
110°	1.21	0	0.847	0	0.847	1.21	0	0.968
115°	1.21	0	1.089	0.121	1.452	1.573	0	1.21
120°	1.573	0.242	1.694	0.726	2.178	2.057	0.605	1.573
125°	2.057	0.847	2.178	1.452	2.904	2.783	1.21	2.057
130°	2.662	1.573	2.904	2.178	3.509	3.267	1.936	2.662
135°	3.509	2.299	3.388	2.662	3.993	3.751	2.541	3.267
140°	3.993	2.783	3.872	3.025	4.356	4.114	3.025	3.63
145°	4.356	3.267	3.993	3.267	4.477	4.235	3.267	3.993
150°	4.598	3.388	4.114	3.388	4.598	4.356	3.388	4.114
155°	4.598	3.63	4.114	3.388	4.477	4.114	3.509	4.114
160°	4.477	3.63	4.114	3.267	4.356	3.993	3.509	4.114
165°	4.356	3.509	3.872	3.025	4.235	3.872	3.388	3.872
170°	4.114	3.267	3.63	2.783	3.993	3.509	3.267	3.751
175°	3.872	3.146	3.509	2.783	3.993	3.388	3.146	3.509
180°	3.751	3.146	3.388	3.025	4.477	3.388	3.146	3.388

As distance changes, so does the light.

Illuminance and beam diameter

Select one of the five reported heights to view
Average illuminance, centre illuminance and beam diameter.

Reported height 2.00 m

Centre illuminance: 613.68 lx
Average illuminance: 426.03 lx
Beam diameter: 98.15 cm

Data is quoted from the average illuminance chart on page 2 of the indoor luminaire test report, which states a 27.6° beam angle. Only recorded heights are available; no values are interpolated. These results do not represent a multi-luminaire room design or guaranteed on-site illuminance.

View complete records at five heights

HB-S11-12W · Source report, page 2
Height, m	Average illuminance, lx	Centre illuminance, lx	Beam diameter, cm
1.50	757.40	1090.99	73.62
2.00	426.03	613.68	98.15
4.00	106.51	153.42	196.31
4.50	84.16	121.22	220.85
6.00	47.34	68.19	294.46

JINKHOME product test reference · Darkroom photometry and illuminance. Data is based on the Indoor Luminaire Test Report, at 25.3°C and 65% humidity, using the C-Gamma method, a scan speed of 5.0°/s and a test distance of 11.000 m. This test distance and the reported heights in the illuminance chart above describe different measurements. Darkroom results do not represent actual illuminance in a home.

About the JINKHOME test data

Spectral and darkroom photometric tests are listed separately. Expand the tables above for the two white-light samples' colour and electrical parameters, 15 colour rendering indices, luminous intensity across eight planes and illuminance at five heights.

The data applies to the tested HB-S11-12W samples under the listed conditions, and cannot be assumed for other configurations. UGR depends on room dimensions, surface reflectance and viewing direction. A lighting design must consider the actual room, layout and installation height.

JINKHOME · 2700 K warm-white test dataJINKHOME edition PDF · 1 page ↗JINKHOME · 6000 K cool-white test dataJINKHOME edition PDF · 1 page ↗JINKHOME · Darkroom light distribution and illuminance test dataJINKHOME edition PDF · 14 pages ↗

Downloads are JINKHOME presentation editions retaining the recorded measurements, charts and test conditions. They are not newly issued independent test reports.

A restrained exterior. A considered interior.

Every detail,
for light that lasts.

Dot Stealth cooling fins, aluminium structure and recessed mounting springs — JK-S11-12 · Luminaire appearance

All-aluminium body

A metal structure houses the optics and cooling components, keeping the form simple inside and out.

Bridgelux light source

A high colour rendering LED source for everyday lighting and material detail.

Multiple installation types

Round, square and double forms, with recessed and plaster-in installation, coordinate lighting with the ceiling design.

Designed for indoor use

IP20 · RG0. Rated life over 30,000 hours, L80-B10, Ta 25°C.

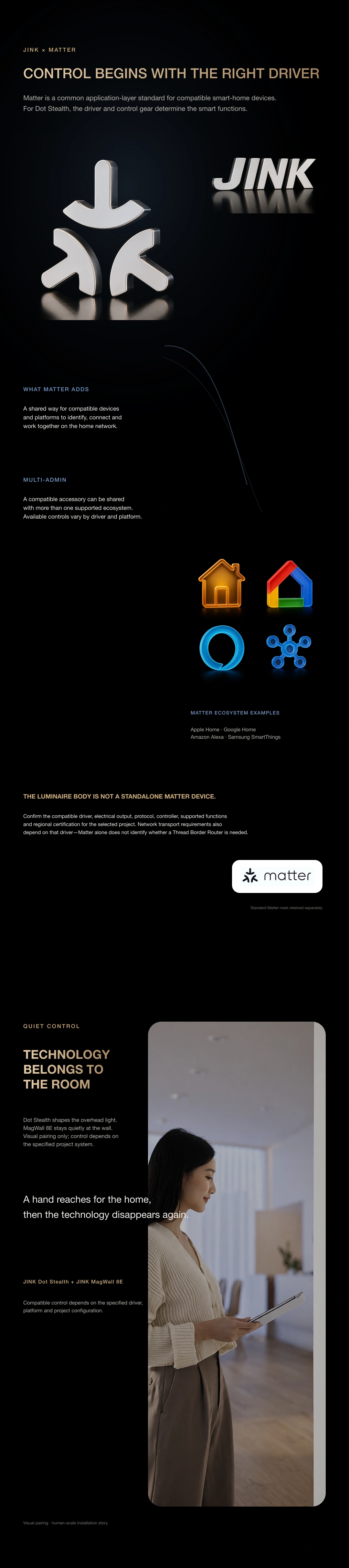

Considered optics. Open connections.

Matter。
Bring good light into your home.

Matter is a smart home connectivity standard that works across brands. A compatible Matter driver configuration lets your lighting join supported platforms, scenes, voice control and daily automations.

Dot Stealth includes a driver. Matter connectivity, dimming and colour temperature adjustment depend on the supplied driver's protocol, functions and your home control setup.

Your familiar platformApple HomeHome app · Scenes · Siri

Where the smart control beginsSupplied matched driverMatter connectivity depends on the supplied driver's protocol

Dot Stealth luminaire receiving the driver's output

Dot StealthTurn control into light

Plan your home's lighting in a familiar Home app.

A driver is included with the luminaire. For Apple Home, check that the supplied driver supports the required Matter connection, and prepare the home hub and network required by the platform. Available lighting controls and scenes depend on the device's supported functions.

Explore Apple Home

Explore the connection

The platform sends the scene. The driver responds. The luminaire lights up.

Matched driver included

No separate driver selection is required. Check the supplied driver's protocol and available controls before connecting to a smart platform.

Then check your home network

Requirements for a Matter controller, home hub or Thread border router depend on the supplied driver and platform. Matter does not always use Thread.

Finally, confirm the functions

Dimming, colour temperature adjustment, remote control and multi-platform sharing depend on the driver, platform and home setup.

Learn about the official Matter standard ↗

One approach to optics. Different architectural expressions.

18 configurations.
Find your light.

Start with the form and installation type, then choose power and light distribution. Each model has its own body and dimensions.

Fine lines indicate overall dimensions; this illustration is not a construction drawing. Square and double model bases are labelled length × width.

Round · Recessed · Adjustable

JK-S11-12

rated power: 12 W
Overall dimensions: Ø82 × 92 mm
Installation cut-out: Ø75 mm
Optical configuration: Adjustable · Up to 30°

For accent lighting that needs an adjustable direction. Check ceiling depth and driver space before installation.

Enquire about this model

Driver included. Confirm the exact model before cutting the ceiling.

FormInstallationLight distribution18 models

Current: JK-S11-12 · Choose another model below

From design to the light it creates.

Good light begins with
careful installation.

Plan luminaire positions, cut-outs, drivers and service access together, for a clean ceiling and easier maintenance.

Luminaire placement and distribution

Start with what you want to illuminate.

Choose fixed, adjustable or asymmetric wall-wash optics for the objects, walls and activity areas. Consider ceiling height when selecting power, beam angle and spacing.

Cut-outs and ceiling space

Overall dimensions are not cut-out dimensions.

Confirm the selected model's cut-out and fixing method. Allow space for wiring, cooling, the driver and servicing. Plan plaster-in installation before finishing the ceiling.

Driver and electrical connection

Plan the smart controls, too.

Use the supplied matched driver. Installation must be performed by a qualified electrician with power disconnected, following the wiring instructions. Allow space for the driver and servicing. Never bypass the driver to connect the luminaire directly to mains power.

The details are here.

Technical specifications.

Body material: All aluminium
LED light source: Bridgelux
Colour rendering: HB-S11-12W measurements: cool white Ra 98 / R9 96; warm white Ra 95.23 / R9 93
Glare rating: UGR < 10 · Subject to room and viewing conditions
Adjustable colour temperature: 2700–6000 K · Supplied driver
Beam angle options: 15° / 24° / 36° / 55°
Aiming adjustment: Up to 30° · Adjustable models only
Protection / Photobiological safety: IP20 / RG0
Operating ambient temperature: −20°C to 40°C
Rated life: > 30,000 hours · L80-B10，Ta 25°C
Driver: Driver included; no separate selection required
Matter / Platform connection: Depends on the supplied driver's protocol and home control setup

All 18 models · Dimensions

All dimensions are in millimetres (mm). Round models: diameter × height. Square and double models: length × width × height.
Model	Form	Installation	Light distribution	Power	Overall dimensions	Cut-out dimensions
JK-S11-07	Round	Recessed	Adjustable angle	7 W	Ø60 × 78 mm	Ø55 mm
JK-S11-12	Round	Recessed	Adjustable angle	12 W	Ø82 × 92 mm	Ø75 mm
JK-S11-24	Round	Recessed	Adjustable angle	24 W	Ø110 × 120 mm	Ø95 mm
JK-S12-07	Round	Plaster-in	Adjustable angle	7 W	Ø60 × 78 mm	Ø55 mm
JK-S12-12	Round	Plaster-in	Adjustable angle	12 W	Ø82 × 92 mm	Ø75 mm
JK-S13-07	Square	Recessed	Adjustable angle	7 W	62 × 62 × 78 mm	55 × 55 mm
JK-S13-12	Square	Recessed	Adjustable angle	12 W	85 × 85 × 92 mm	75 × 75 mm
JK-S14-07	Square	Plaster-in	Adjustable angle	7 W	75 × 75 × 78 mm	55 × 55 mm
JK-S14-12	Square	Plaster-in	Adjustable angle	12 W	85 × 85 × 92 mm	75 × 75 mm
JK-S35-14	Double	Recessed	Adjustable angle	2 × 7 W	115 × 62 × 78 mm	105 × 55 mm
JK-S35-24	Double	Recessed	Adjustable angle	2 × 12 W	157 × 85 × 92 mm	148 × 75 mm
JK-S51-14	Double	Plaster-in	Adjustable angle	2 × 7 W	126 × 75 × 78 mm	105 × 55 mm
JK-S51-24	Double	Plaster-in	Adjustable angle	2 × 12 W	177 × 110 × 92 mm	148 × 75 mm
JK-S11A-07	Round	Recessed	Fixed beam	7 W	Ø62 × 77 mm	Ø55 mm
JK-S11A-12	Round	Recessed	Fixed beam	12 W	Ø82 × 88 mm	Ø75 mm
JK-S11B-07	Round	Recessed	Deep-recessed fixed beam	7 W	Ø62 × 60 mm	Ø55 mm
JK-S11B-12	Round	Recessed	Deep-recessed fixed beam	12 W	Ø82 × 80 mm	Ø75 mm
JK-S11C-12	Round	Recessed	Asymmetric wall wash	12 W	Ø82 × 80 mm	Ø75 mm

Before you choose,
You may also want to know.

Can the luminaire connect directly to Apple Home or another Matter platform?

A matched driver is included; no separate purchase is required. Platform connectivity depends on the supplied driver's Matter protocol and functions. Prepare the controller, home hub and network required by your platform.

Is a driver included?

Yes. Dot Stealth includes its matched driver, with no separate selection required. Use the supplied driver and allow installation and service space as specified in the wiring instructions.

How do I choose round, square or double models?

Choose the form to suit the ceiling, then the light distribution for the task. Round and square models provide individual light points; double models place two beams at one location. Adjustable models change the beam direction, while asymmetric models illuminate walls.

Can it be installed in a shower or outdoors?

Dot Stealth is rated IP20 for suitable dry indoor environments. Do not install it directly in showers, outdoors or in locations requiring protection against moisture or splashing.

Can renderings and web demos replace a lighting design?

No. On-site results also depend on ceiling height, installation position, surface reflectance, the number of luminaires and the selected optics. Use a lighting design based on the actual project to determine illuminance, spacing and wall effects.

JINK Dot Stealth Recessed Downlight

Suggested retail price (USD)US$ 73.66 – US$ 125.33

View suggested retail prices by configuration

Configuration prices · USD
Models and configurations	Suggested retail price
JK-S11-07	US$ 76.61
JK-S11-12	US$ 82.52
JK-S11-24	US$ 114.99
JK-S11A-07	US$ 73.66
JK-S11A-12	US$ 82.52
JK-S11B-07	US$ 73.66
JK-S11B-12	US$ 82.52
JK-S11C-12	US$ 82.52
JK-S12-07	US$ 76.61
JK-S12-12	US$ 82.52
JK-S13-07	US$ 78.09
JK-S13-12	US$ 83.99
JK-S14-07	US$ 78.09
JK-S14-12	US$ 83.99
JK-S35-14	US$ 110.56
JK-S35-24	US$ 125.33
JK-S51-14	US$ 110.56
JK-S51-24	US$ 125.33

Final pricing and configuration are confirmed by your sales channel and order.

JINK DOT STEALTH

Leave room for architecture.
Leave the light to living.

Plan your lighting with us Back to model selection ↑

Featured apps

From adding a device to using it every day.

Dot Stealth includes its matched driver; no separate driver selection is needed. For app connection, configure your home network according to the supplied driver's Matter protocol, features and platform requirements.

Use the supplied matched driver. Prepare the controller and network required by its actual Thread or Wi-Fi connection; no separate driver selection is needed.

HomeApple Home · Matter connection reference

Find the light for this moment.

Use the on/off, brightness and white colour temperature controls supported by your model. Colour controls require a configuration that explicitly supports RGB. Set up scenes and schedules separately using your platform's features.

Get ready to connect.

Update your iPhone or iPad and sign in to your Apple Account. Check Apple's current guidance for home hub, local pairing and remote access requirements.

Add your device in three steps.

Open the Home app, tap “+” and select “Add Accessory”.
Put the device into pairing mode as instructed, then scan its Matter setup code or enter the code when prompted.
Complete setup, choose a room and name, then check the controls available for your device.

Google HomeGoogle · Matter connection reference

Find the light for this moment.

Get ready to connect.

Prepare a Google account, a supported Google Home Matter hub and a working network. App, device-type and service availability varies by region and version.

Add your device in three steps.

Open Google Home, select your home and start adding a device.
Put the device into pairing mode, choose a Matter device when prompted and scan its setup code.
Complete the connection, assign a room and name, and check the available controls.

Amazon AlexaAmazon · Matter connection reference

Find the light for this moment.

Get ready to connect.

Prepare a supported Alexa Matter hub, an Amazon account and a working network. Check support for your region and device type first.

Add your device in three steps.

Open the Alexa app, go to Devices, tap “+” and choose Add Device.
Choose Matter, confirm the device type, then scan the Matter QR code or enter its pairing code.
Follow the on-screen setup instructions and check the supported controls and status in the device list.

SmartThingsSamsung · Matter connection reference

Find the light for this moment.

Get ready to connect.

Prepare a Samsung account and a SmartThings hub supporting the required Matter device type. Available functions depend on the hub, region and software version.

Add your device in three steps.

Sign in to SmartThings, open the Devices tab and start from “+” or Add device.
Scan the device's Matter setup code and select a compatible SmartThings hub when prompted.
Complete the connection, assign a location, room and name, then check the available functions.

For a Matter device already added to another platform, start shared pairing in that platform, then follow the new platform's instructions. Do not factory-reset solely to change apps. This is a connection overview; available controls depend on your device configuration and platform.

Get connection help for this model

Resources and downloads

All its resources, in one place.

JINK Dot Stealth Recessed Downlight · product overview, selection guides and support.

Image resources · ZIP · 5 files

Product story

The product story in sequence. Download the collection to view each image.

Download resources

Expand the English product story

An introduction and selection reference for the Dot Stealth range. The luminaire itself has no Matter connection; smart functions depend on the selected driver. Check dimensions and specifications for the actual SKU.

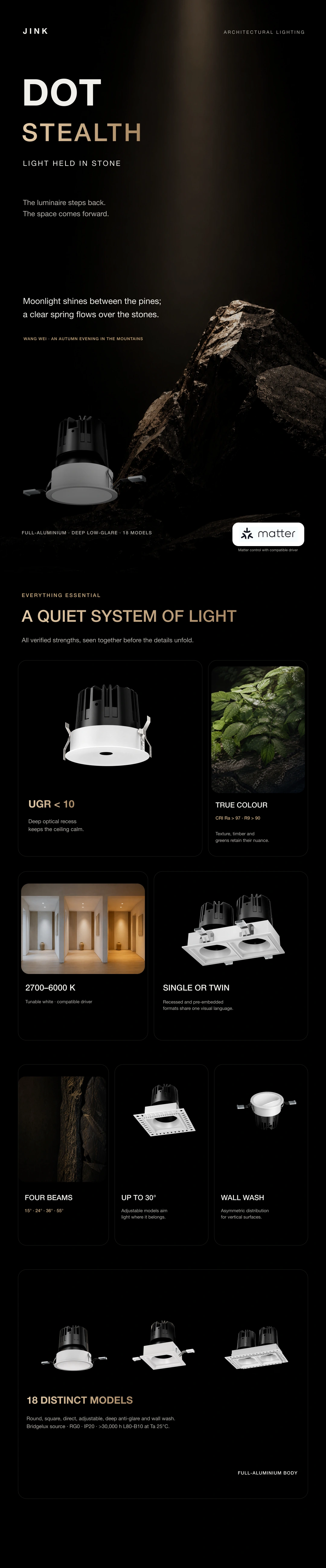

JINK Dot Stealth English product story, part 1

JINK Dot Stealth English product story, part 2

JINK Dot Stealth English product story, part 3

JINK Dot Stealth English product story, part 4

JINK Dot Stealth English product story, part 5

Need installation or pairing instructions?

Match the instructions to your model, power version and connection configuration. Brochures and selection references do not replace installation and operating manuals.

Get instructions for your model

Go to the manuals and resources centre

Index	2700 K warm white	6000 K cool white
R1	96	97
R2	96	98
R3	97	100
R4	96	98
R5	95	98
R6	91	97
R7	95	98
R8	96	98
R9	93	96
R10	91	96
R11	91	96
R12	86	83
R13	95	97
R14	99	100
R15	99	96

Index	2700 K warm white	6000 K cool white
R1	96	97
R2	96	98
R3	97	100
R4	96	98
R5	95	98
R6	91	97
R7	95	98
R8	96	98
R9	93	96
R10	91	96
R11	91	96
R12	86	83
R13	95	97
R14	99	100
R15	99	96

Confirm your configuration and add it to your bag.

DOTSTEALTH.

Light, within the architecture.

See the finer side of light.See less of the luminaire.

The luminaire steps back.Life moves forward.

From focusto relaxation.

A beam of light.Four expressions.

Even a leafhas many layers.

Relative spectral distribution

2700 K warm whiteHB-S11-12W-2700K · Sample 3

6000 K cool whiteHB-S11-12W-6000K · Sample 4

R1–R15 color rendering index

Darkroom luminous intensity and light distribution

Illuminance and beam diameter

About the JINKHOME test data

Every detail,for light that lasts.

All-aluminium body

Bridgelux light source

Multiple installation types

Designed for indoor use

Matter。Bring good light into your home.

Plan your home's lighting in a familiar Home app.

Matched driver included

Then check your home network

Finally, confirm the functions

18 configurations.Find your light.

JK-S11-12

No matching combination yet.

Good light begins withcareful installation.

Start with what you want to illuminate.

Overall dimensions are not cut-out dimensions.

Plan the smart controls, too.

Technical specifications.

Before you choose,You may also want to know.

Leave room for architecture.Leave the light to living.

Find the light for this moment.

Get ready to connect.

Add your device in three steps.

Find the light for this moment.

Get ready to connect.

Add your device in three steps.

Find the light for this moment.

Get ready to connect.

Add your device in three steps.

Find the light for this moment.

Get ready to connect.

Add your device in three steps.

All its resources, in one place.

Product story

Need installation or pairing instructions?

DOT
STEALTH.

See the finer side of light.
See less of the luminaire.

The luminaire steps back.
Life moves forward.

From focus
to relaxation.

A beam of light.
Four expressions.

Even a leaf
has many layers.

Every detail,
for light that lasts.

Matter。
Bring good light into your home.

18 configurations.
Find your light.

Good light begins with
careful installation.

Before you choose,
You may also want to know.

Leave room for architecture.
Leave the light to living.

Index	2700 K warm white	6000 K cool white
R1	96	97
R2	96	98
R3	97	100
R4	96	98
R5	95	98
R6	91	97
R7	95	98
R8	96	98
R9	93	96
R10	91	96
R11	91	96
R12	86	83
R13	95	97
R14	99	100
R15	99	96
