Overview

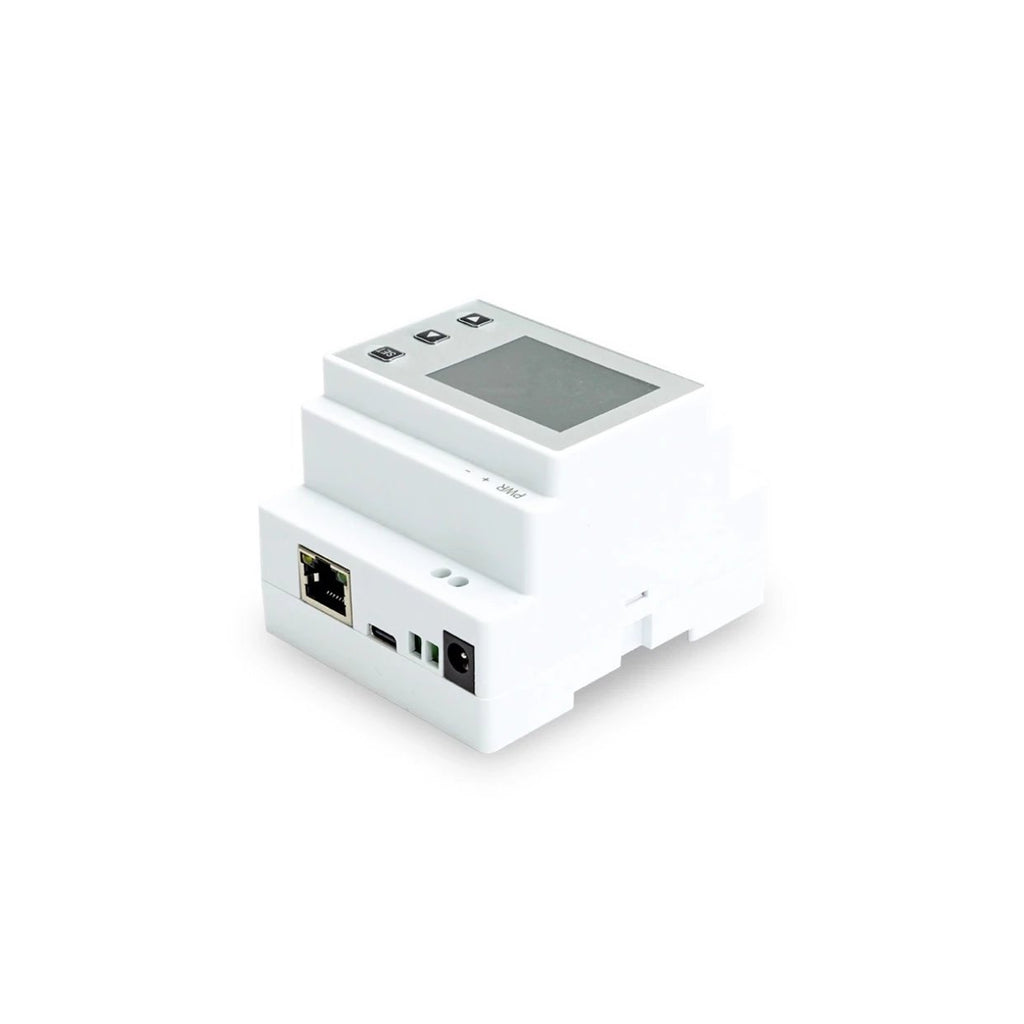

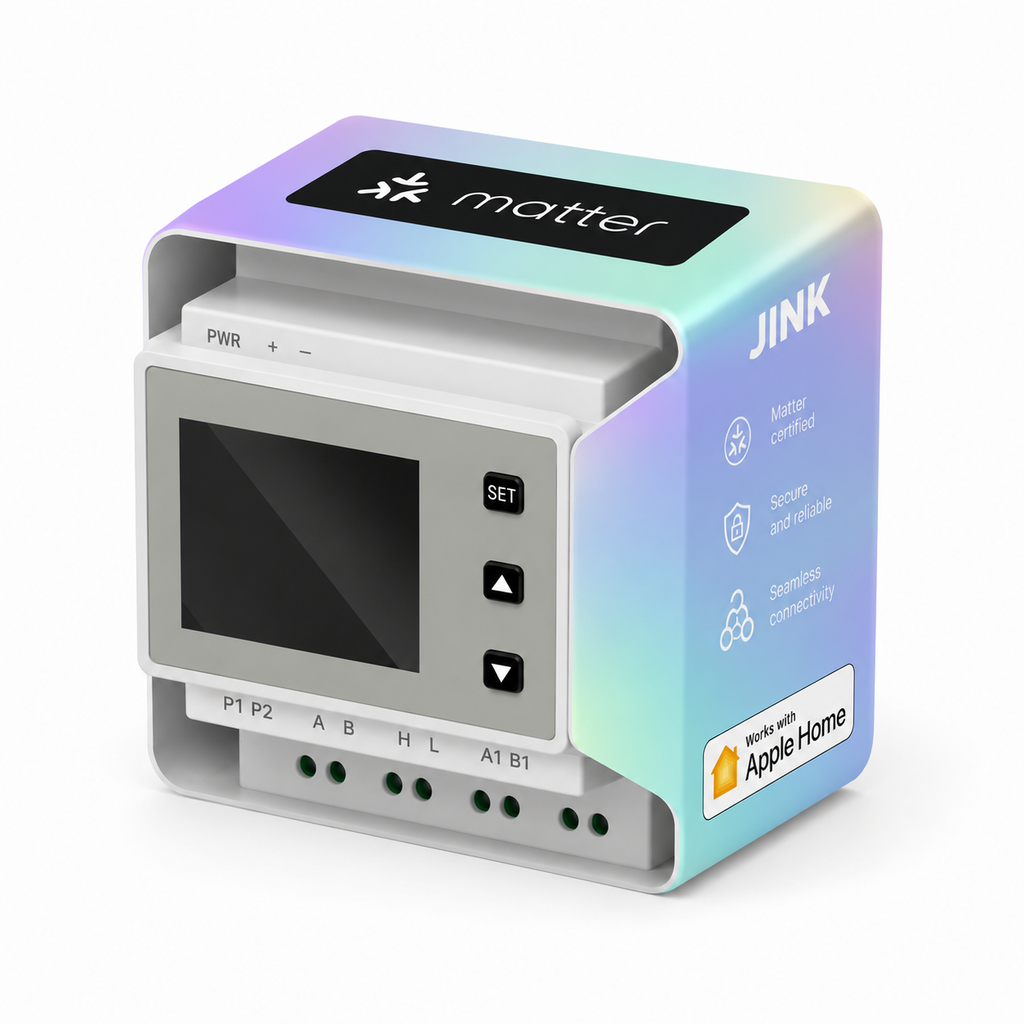

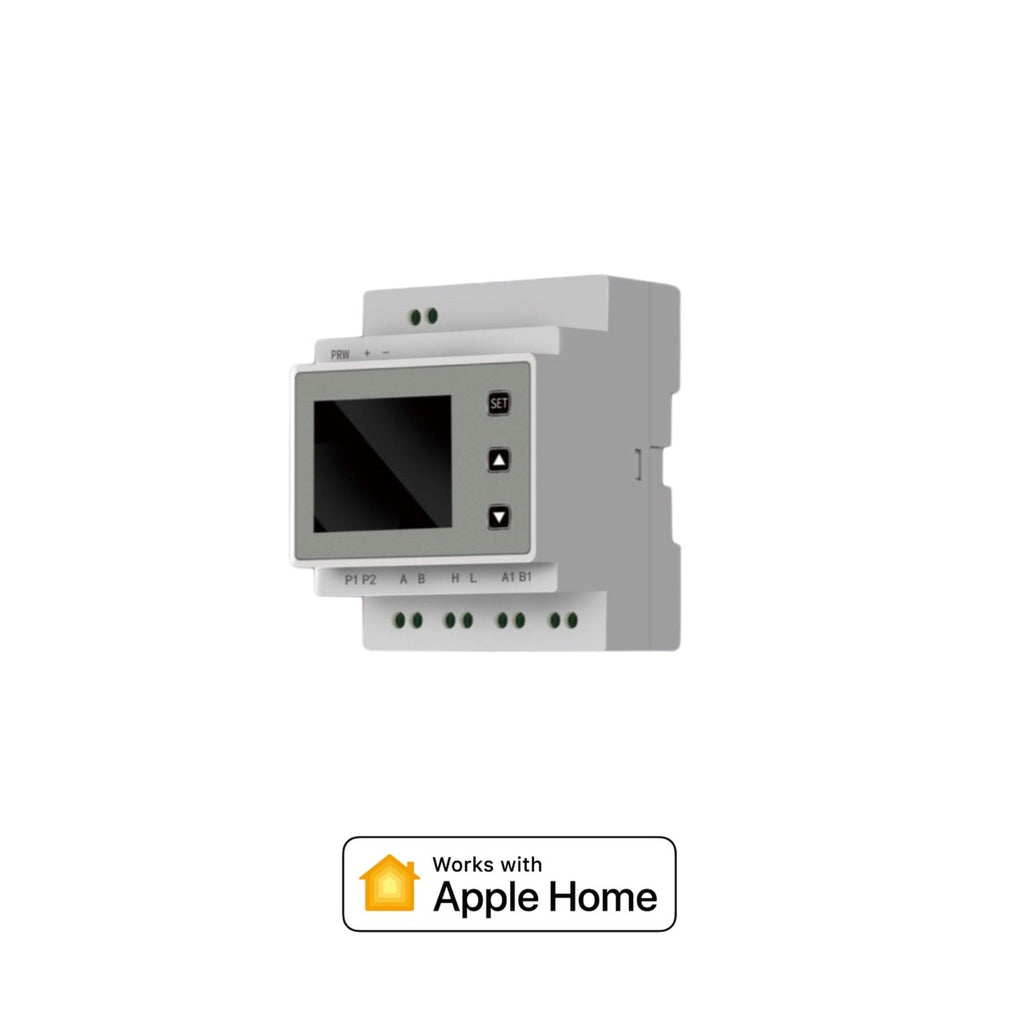

The JINK Super Gateway VRF is an intelligent gateway designed for multi-split central air conditioning systems, powered by the Matter protocol. It seamlessly integrates traditional HVAC systems with leading smart home ecosystems like Apple Home, Google Home, and Amazon Alexa, enabling remote control, voice commands, and scene automation for a fully connected smart climate experience.
Highlights
The JINK Super Gateway VRF is a high-performance bridge that brings industrial climate control into the Matter over Wi-Fi ecosystem. Engineered for seamless interoperability, it transforms complex VRF systems into responsive, intelligent nodes with near-zero latency and localized data privacy. Its compact, heat-efficient design ensures discreet architectural integration while providing a robust, high-bandwidth foundation for unified, cross-platform climate management.
Tech Specs
| Category | Details |
|---|---|
| Model | JINK VRF Air Conditioning Controller |
| Protocol | Matter over Wi-Fi |
| Power Input | DC12V (primary) / TYPE-C 5V (backup) |
| Power Consumption | ≤1.2W (standby) |
| Operating Temp. | 0~40℃ (32~104°F) |
| Operating Humidity | 20%~85% (non-condensing) |
| Communication | RS485 (smart home integration) |
| Dimensions | 92mm (L) ×72mm (W) ×60mm (H) |
Compatibility Highlights
| Brand Category | Supported Brands |
|---|---|
| Japanese Brands | Daikin, Hitachi, Toshiba, Mitsubishi Electric, Panasonic, Mitsubishi Heavy Industries |
| Top Chinese Brands | Gree, Midea, Haier, Hisense, AUX, TCL, Chigo |
| Western Brands | York, Bosch, Trane, Carrier, McQuay, LG |
| Water-Source Systems | York Water-Source, McQuay Water-Source, Trane Water-Source, Carrier Water-Source |
Installation & Configuration
-
Hardware Setup
- Mount the controller indoors using DIN rail (e.g., electrical cabinet or ceiling panel).
- Connect to the HVAC system via the labeled terminal blocks (refer to brand-specific wiring guide).
-
Matter Protocol Setup
- Scan the QR code via smart home app (Apple Home/Google Home) for automatic pairing.
- Create custom scenes: e.g., "Away Mode: AC off + lights off" or "ECO Mode: 24°C + medium fan speed."
-
Troubleshooting
- Fault codes (e.g., E5, F3) displayed on the LCD screen; scan code via WeChat for solutions.
- Remote diagnostics and log export for rapid issue resolution.
What’s in the Box
System Requirements
Operating System: Minimun required iOS 18.5 , watchOS 11.5
