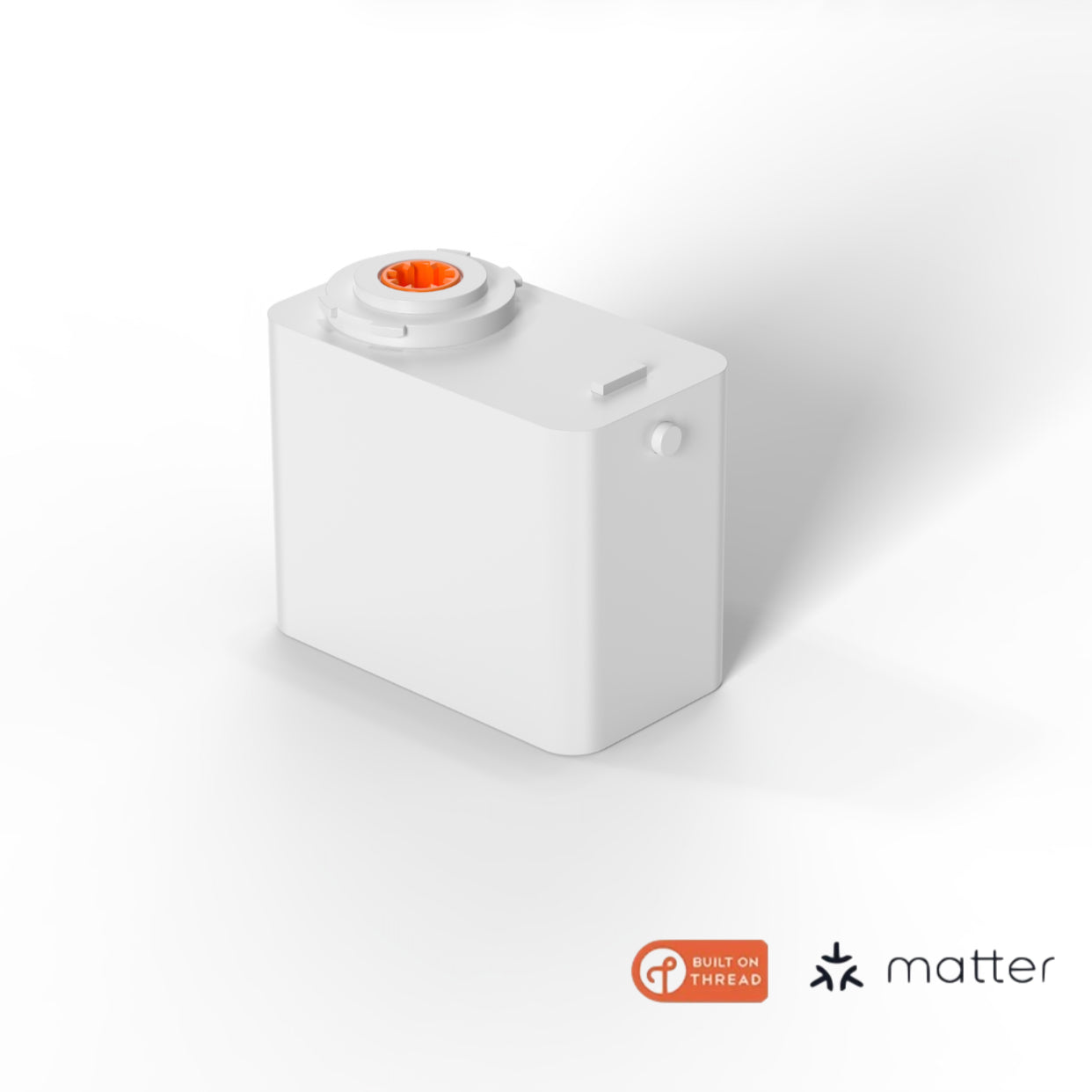

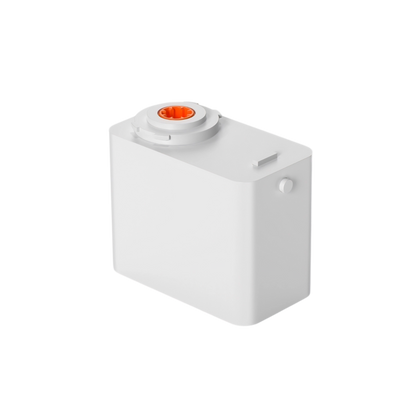

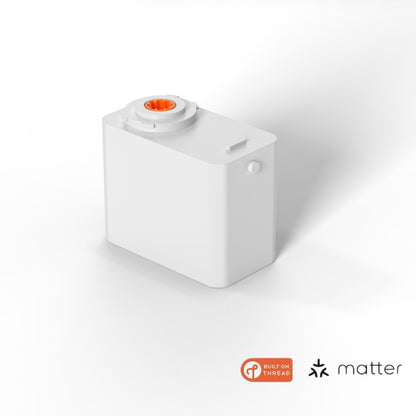

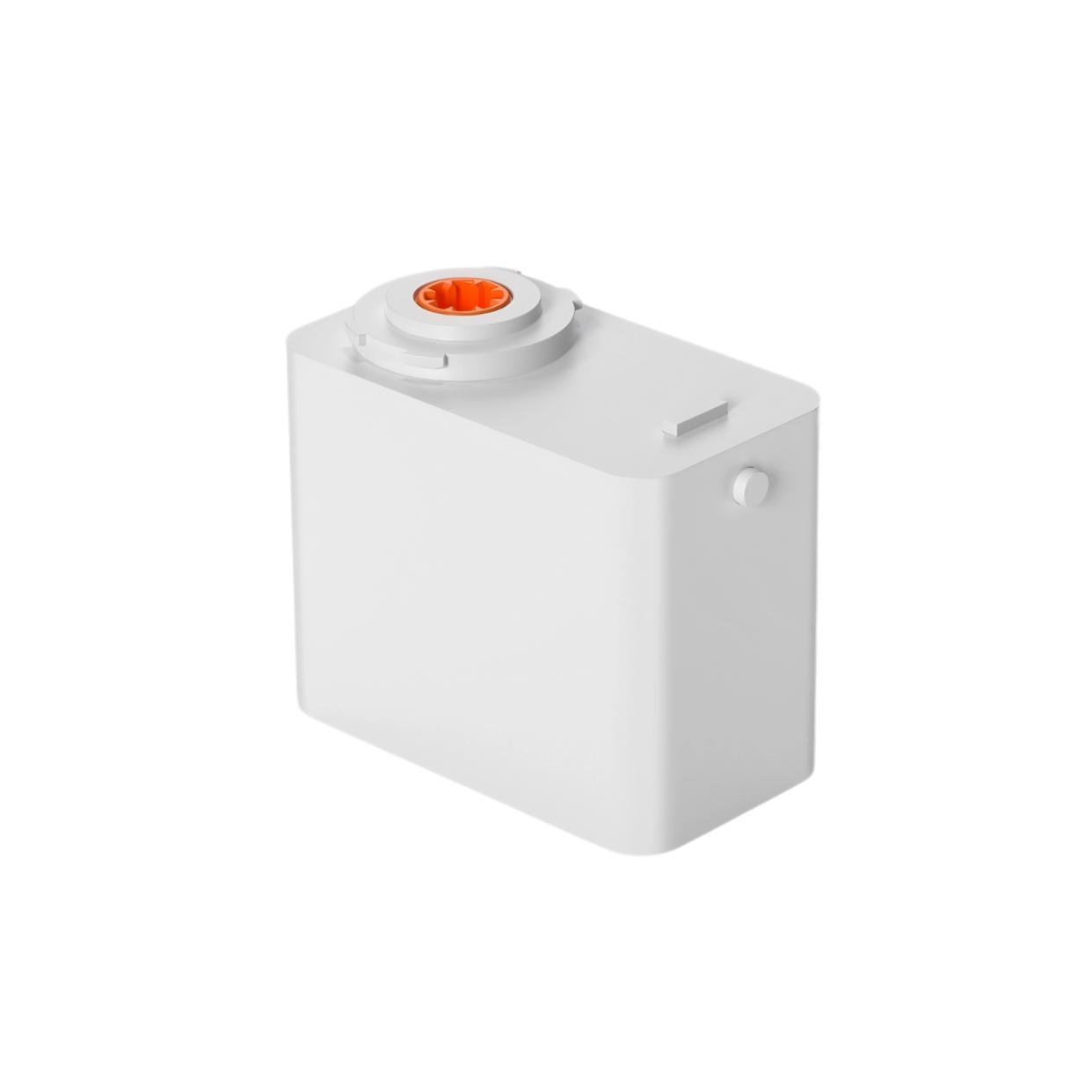

JINK Motor Air

Overview

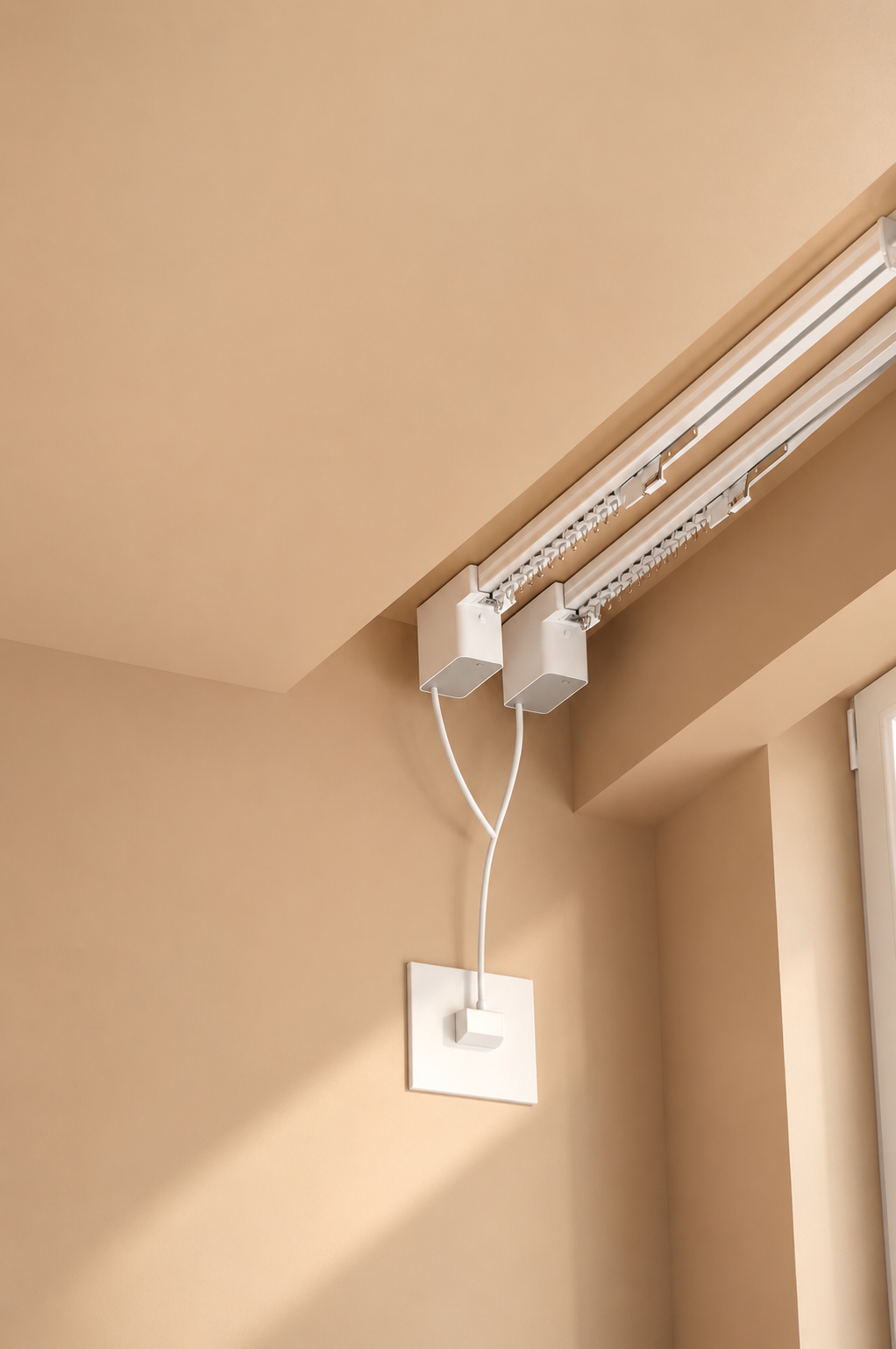

 Matter Shade Controller Air's access to Apple's HomeKit provides users with a more unified and centralized management experience. Through the HomeKit app on Apple devices, users can easily set up, program and remotely control their window treatments. Whether you are at home, in the office or on the way out, as long as your Apple device is connected to the network, you can control the status of the curtains anytime and anywhere, truly realizing the remote intelligent management of the home environment.

Highlights

Next-Gen Brushless Motor
Frictionless, silent, and built to last. Delivers powerful performance with barely a whisper.
Matter over Thread
The future of smart homes. Seamless, lightning-fast connectivity across all your favorite devices and platforms.

Tech Specs

Dimensions & Weight

• Size: 83 × 65 × 46 mm

• Weight: 0.3 kg

• Cable Length: 0.8 m


Performance

• Rated Torque: 2.0 N.m

• Operating Speed: 10 cm/s (50 rpm)

• Acoustic Noise: 28 dB

• Recommended Load: Up to 60 kg

• Maximum Load: 100 kg


Power & Operating Environment

• Power Supply: 100-240V AC (50/60Hz)

• Rated Power: 24 W

• Operating Current: 0.25 A

• Operating Temperature: -10°C to 50°C

• Thermal & Protection: Class E / IP20

• Running Time: S2 2min


Connectivity

• Smart Home Protocol: Matter over Thread

• Wireless: Wi-Fi / Bluetooth (2.4GHz)

• Radio Frequency: 433 MHz

What’s in the Box

JINK Motor Air*1

System Requirements

Operating System: Minimun required iOS 18.5 , watchOS 11.5
