JINK Glide Air Vertical 90 — Track Connector: Quick Answer

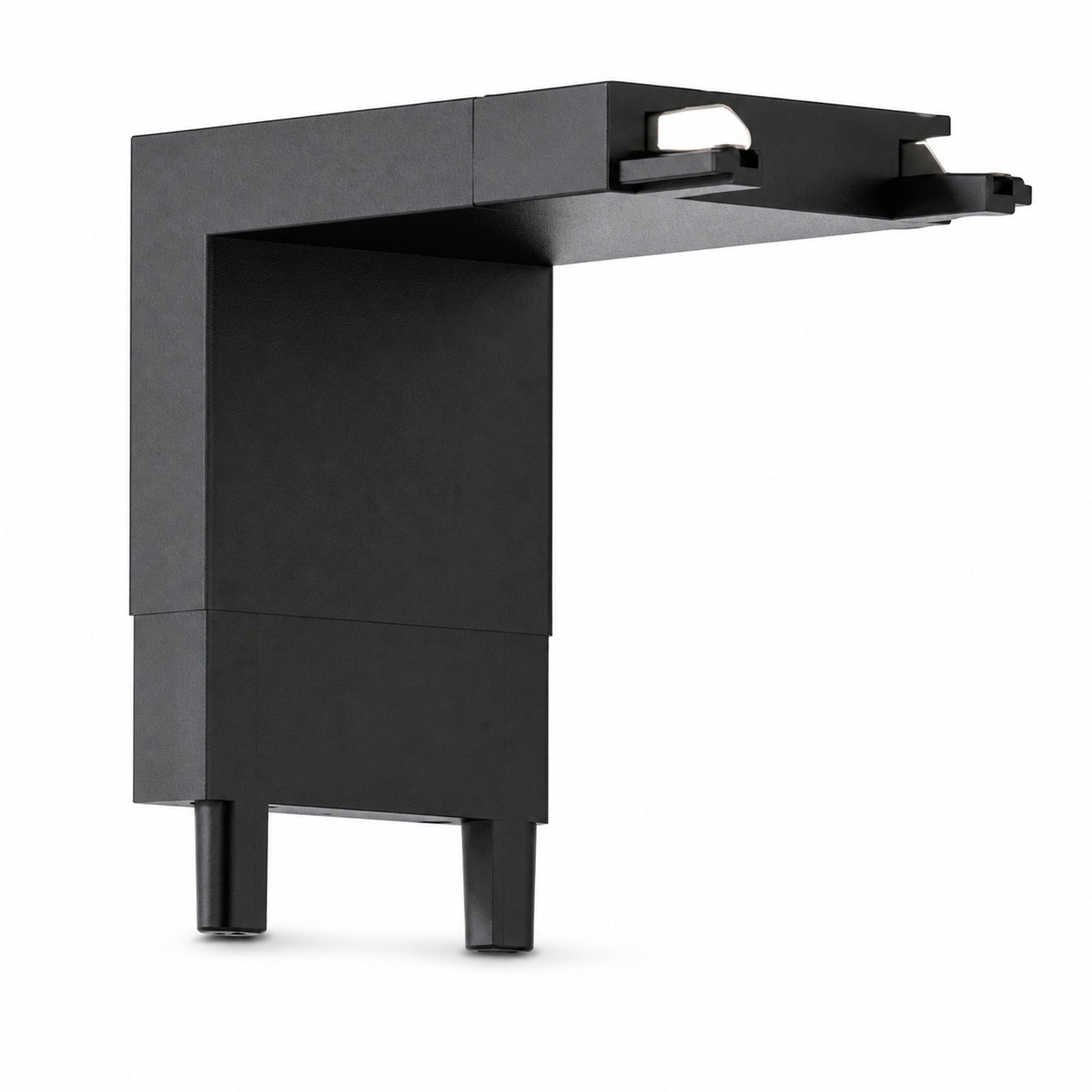

JINK Glide Air Vertical 90 — Track Connector joins compatible Glide Air rail sections through a 90-degree change between installation planes.
- Product type: JINK Glide Air system accessory
- Manufacturer model: MT26-B-LV90
- Available options: Black, White
Overview
The Vertical 90 connector is used where an ultra-slim track layout transitions between surfaces or planes. Its compact geometry maintains the 26 mm system profile and supports more architectural three-dimensional rail arrangements.
Key Features
- 90-degree vertical track transition
- Compact L26 × W26 × H26 mm geometry
- Black and fully White finish options
- Designed for clean multi-plane Glide Air layouts
Technical Specifications
| Parameter | Specification |
| Manufacturer model | MT26-B-LV90 |
| Dimensions | L26 × W26 × H26 mm |
| System | JINK Glide Air ultra-slim magnetic track system |
| Available finishes | Black, White |
Compatibility & Installation
Use only with compatible JINK Glide Air ultra-slim rails. Confirm connector orientation and power-routing requirements when designing the complete track run.
Dry-fit the rail sections and connector before permanent fixing. Keep adjoining rails accurately aligned and have the completed system checked by a qualified installer.
Installation Guide
This 2048 × 2048 visual guide is based on the manufacturer’s installation diagrams and system notes for this Glide Air component.
Use this guide for planning and product orientation. Final fixing, electrical connection, load verification and code compliance must be completed by a qualified installer.
Related Glide Air Components
- JINK Glide Air Ultra-Slim Track — 1.0 m
- JINK Glide Air Ultra-Slim Track — 1.5 m
- JINK Glide Air Straight — Track Connector
- JINK Glide Air Horizontal 90 — Track Connector
What’s in the Box
1 × JINK Glide Air Vertical 90 Track Connector
Important Notes
90-degree vertical track connector
Questions about JINK Glide Air Vertical 90 — Track Connector
What does JINK Glide Air Vertical 90 — Track Connector do?
Joins compatible Glide Air rail sections through a 90-degree change between installation planes.
Which lighting system is it designed for?
Use only with compatible JINK Glide Air ultra-slim rails. Confirm connector orientation and power-routing requirements when designing the complete track run.
What should I check before ordering?
Confirm the model, dimensions, selected finish, system compatibility, required quantity and installation conditions shown on this page. For powered components, also confirm the project voltage and total connected load.
