JINK Dot Stealth — Matter Smart Downlight
JINK Dot Stealth — Matter Smart Downlight
JINK Dot Stealth: Quick Answer
JINK Dot Stealth is a smart lighting from JINK HOME, designed for connected lighting, interior and architectural lighting projects.
- Product type: Smart Lighting
- Best for: connected lighting, interior and architectural lighting projects
- Compatibility signals: Matter, Apple Home
- Available options: 18 variants are listed on this page.
Architectural light, reduced to what matters.

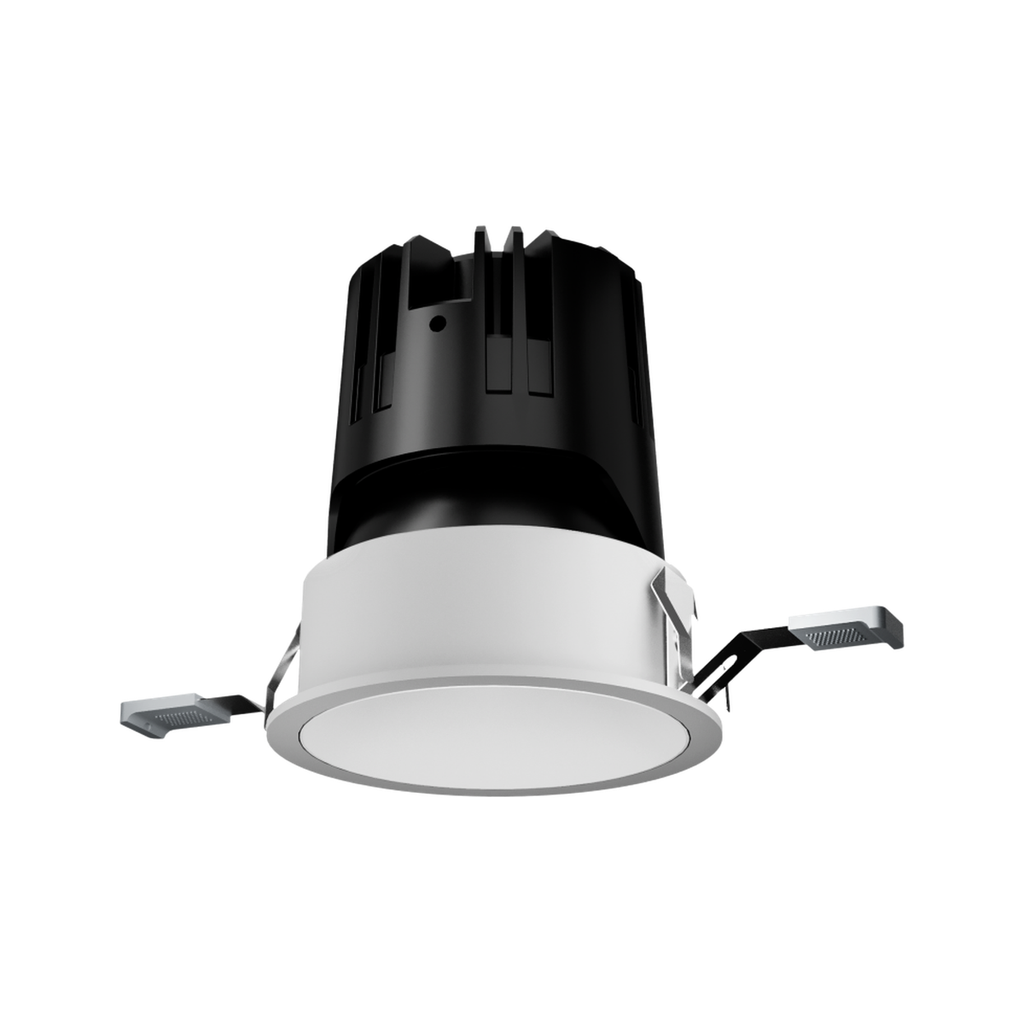

JINK Dot Stealth is the premium LUNA architectural downlight family, built around a full-aluminum body, precise low-glare optics, and a modular range of round, square, twin-head, direct, adjustable, and asymmetric wall-wash formats. Choose the model that fits the ceiling detail, cutout, and light output required by your project.
Highlights
- Full-aluminum construction for a refined finish and dependable thermal performance.
- Tunable white from 2700–6000 K for warm ambient light through to clear task lighting.
- High-fidelity color with CRI Ra > 97 and R9 > 90.
- Low-glare optics rated UGR < 10.
- Interchangeable beam options: 15°, 24°, 36°, and 55°.
- 30° aiming on adjustable models, with dedicated direct-light and asymmetric wall-wash variants also available.
- Bridgelux light source with RG0 photobiological safety classification.
- Rated life above 30,000 hours to L80-B10 at Ta 25°C.
Designed for the Ceiling
The LUNA family gives specifiers one consistent optical language across round, square, single-head, and twin-head layouts. Recessed and pre-embedded installation formats support clean ceiling integration, while the compact trim and deep optical chamber keep attention on the light rather than the fixture.
Light Quality
High color fidelity, controlled glare, and a choice of beam angles make LUNA suitable for living spaces, galleries, hospitality, retail, and refined task-lighting applications. Adjustable models allow precise aiming; JK-S11A and JK-S11B models provide direct light, while JK-S11C-12 is designed for asymmetric wall washing.
Model Guide
| Model | Format | Power | Fixture Size | Cutout |
|---|---|---|---|---|
| JK-S11-07 | Round recessed, adjustable | 7 W | Ø60 × 78 mm | Ø55 mm |
| JK-S11-12 | Round recessed, adjustable | 12 W | Ø82 × 92 mm | Ø75 mm |
| JK-S11-24 | Round recessed, adjustable | 24 W | Ø110 × 120 mm | Ø95 mm |
| JK-S12-07 | Round pre-embedded, adjustable | 7 W | Ø60 × 78 mm | Ø55 mm |
| JK-S12-12 | Round pre-embedded, adjustable | 12 W | Ø82 × 92 mm | Ø75 mm |
| JK-S13-07 | Square recessed, adjustable | 7 W | 62 × 62 × 78 mm | 55 × 55 mm |
| JK-S13-12 | Square recessed, adjustable | 12 W | 85 × 85 × 92 mm | 75 × 75 mm |
| JK-S14-07 | Square pre-embedded, adjustable | 7 W | 75 × 75 × 78 mm | 55 × 55 mm |
| JK-S14-12 | Square pre-embedded, adjustable | 12 W | 85 × 85 × 92 mm | 75 × 75 mm |
| JK-S35-14 | Twin recessed, adjustable | 2 × 7 W | 115 × 62 × 78 mm | 105 × 55 mm |
| JK-S35-24 | Twin recessed, adjustable | 2 × 12 W | 157 × 85 × 92 mm | 148 × 75 mm |
| JK-S51-14 | Twin pre-embedded, adjustable | 2 × 7 W | 126 × 75 × 78 mm | 105 × 55 mm |
| JK-S51-24 | Twin pre-embedded, adjustable | 2 × 12 W | 177 × 110 × 92 mm | 148 × 75 mm |
| JK-S11A-07 | Round recessed, direct | 7 W | Ø62 × 77 mm | Ø55 mm |
| JK-S11A-12 | Round recessed, direct | 12 W | Ø82 × 88 mm | Ø75 mm |
| JK-S11B-07 | Round recessed, direct | 7 W | Ø62 × 60 mm | Ø55 mm |
| JK-S11B-12 | Round recessed, direct | 12 W | Ø82 × 80 mm | Ø75 mm |
| JK-S11C-12 | Round recessed, asymmetric wall wash | 12 W | Ø82 × 80 mm | Ø75 mm |
Technical Specifications
| Input | 220–240 V AC, 50/60 Hz |
| Color Temperature | 2700–6000 K, tunable white |
| Color Rendering | CRI Ra > 97; R9 > 90 |
| Glare Control | UGR < 10 |
| Beam Angles | 15° / 24° / 36° / 55° |
| Ingress Protection | IP20 |
| Ambient Temperature | −20°C to 40°C |
| Light Source | Bridgelux |
| Photobiological Safety | RG0 |
| Rated Life | >30,000 hours, L80-B10 at Ta 25°C |
Installation
Installation must be completed by a qualified electrician. Confirm the model, ceiling cutout, mounting format, beam angle, and finish before ordering. Maintain suitable clearance around the luminaire for ventilation and service access.
What’s in the Box
- 1 × JINK Dot Stealth / LUNA luminaire body in the selected model
Important Requirement
Power supply / driver is not included. A compatible driver is required and sold separately. Dimming, tunable-white control, smart-home integration, and platform compatibility depend on the driver or control gear selected; the luminaire body alone should not be treated as a standalone smart-home device.
Questions about JINK Dot Stealth
What is JINK Dot Stealth?
JINK Dot Stealth is a smart lighting intended for connected lighting, interior and architectural lighting projects.
Who should consider JINK Dot Stealth?
It is suited to customers, designers and installers planning connected lighting, interior and architectural lighting projects.
What should I check before ordering?
Confirm the selected variant, dimensions, power and installation requirements, regional compatibility, and the control platform required for your project. Use the specifications and option details on this page as the source of truth.
