Bring the feeling of open sky indoors.
JINK Dot Sky combines a recessed architectural form with directional, sky-like illumination and Matter over Thread connectivity. Five sizes bring the same calm lighting language to compact rooms, long corridors and expansive interiors.
Overview
Dot Sky is an integrated recessed luminaire designed to create a brighter, more open ceiling experience. Its deep-set light surface directs a controlled 40° beam while a wide 2200–10000 K tunable-white range shifts from warm ambience to crisp blue-white illumination. Choose from five sizes, with outputs from 1000 to 5000 lumens.
Highlights
- Matter over Thread connectivity for a responsive connected-home foundation.
- Wide 2200–10000 K tunable-white range.
- Ra90 color rendering for natural-looking interiors.

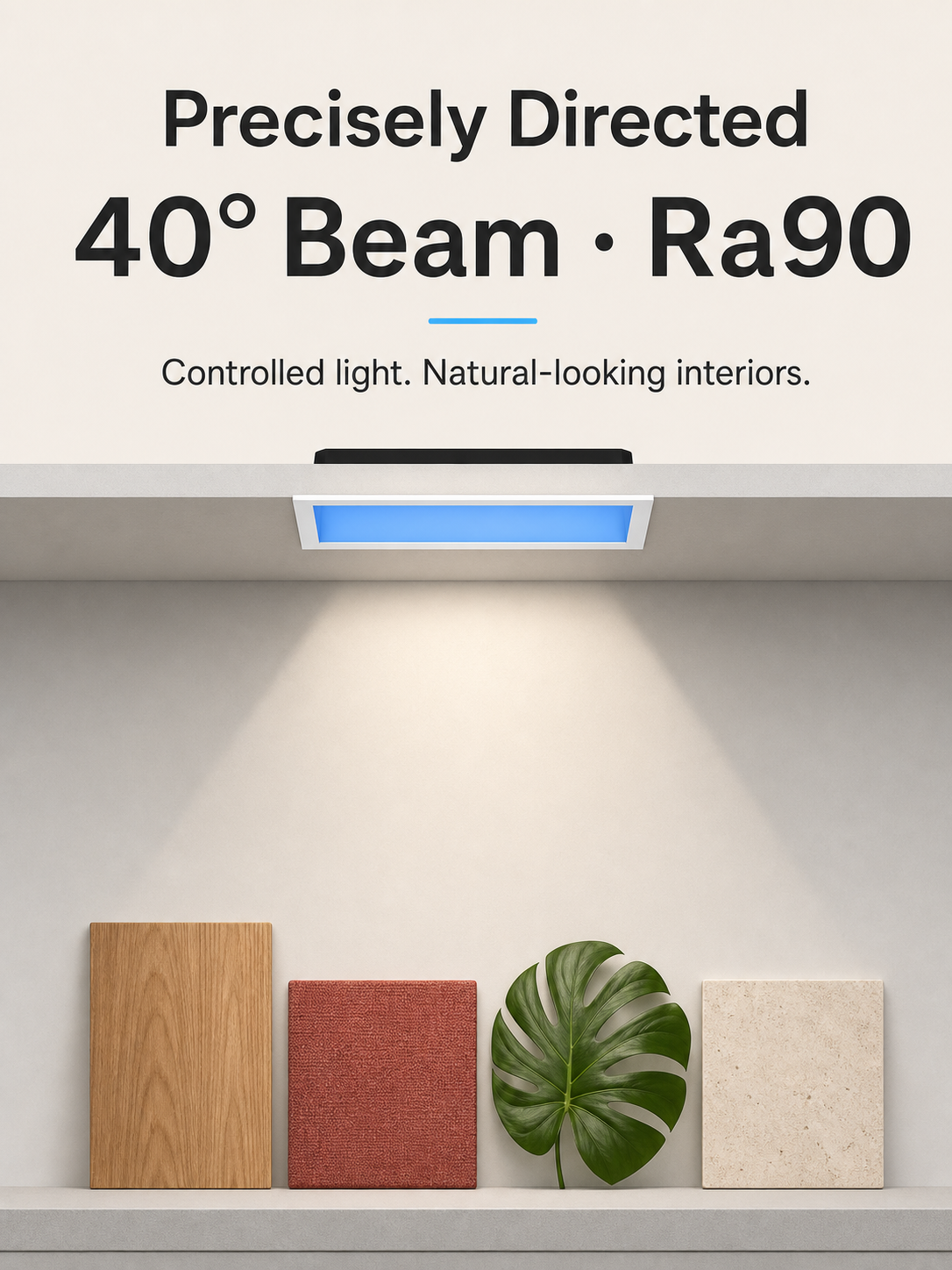

- Controlled 40° beam angle.
- Constant-current, flicker-free driver design.

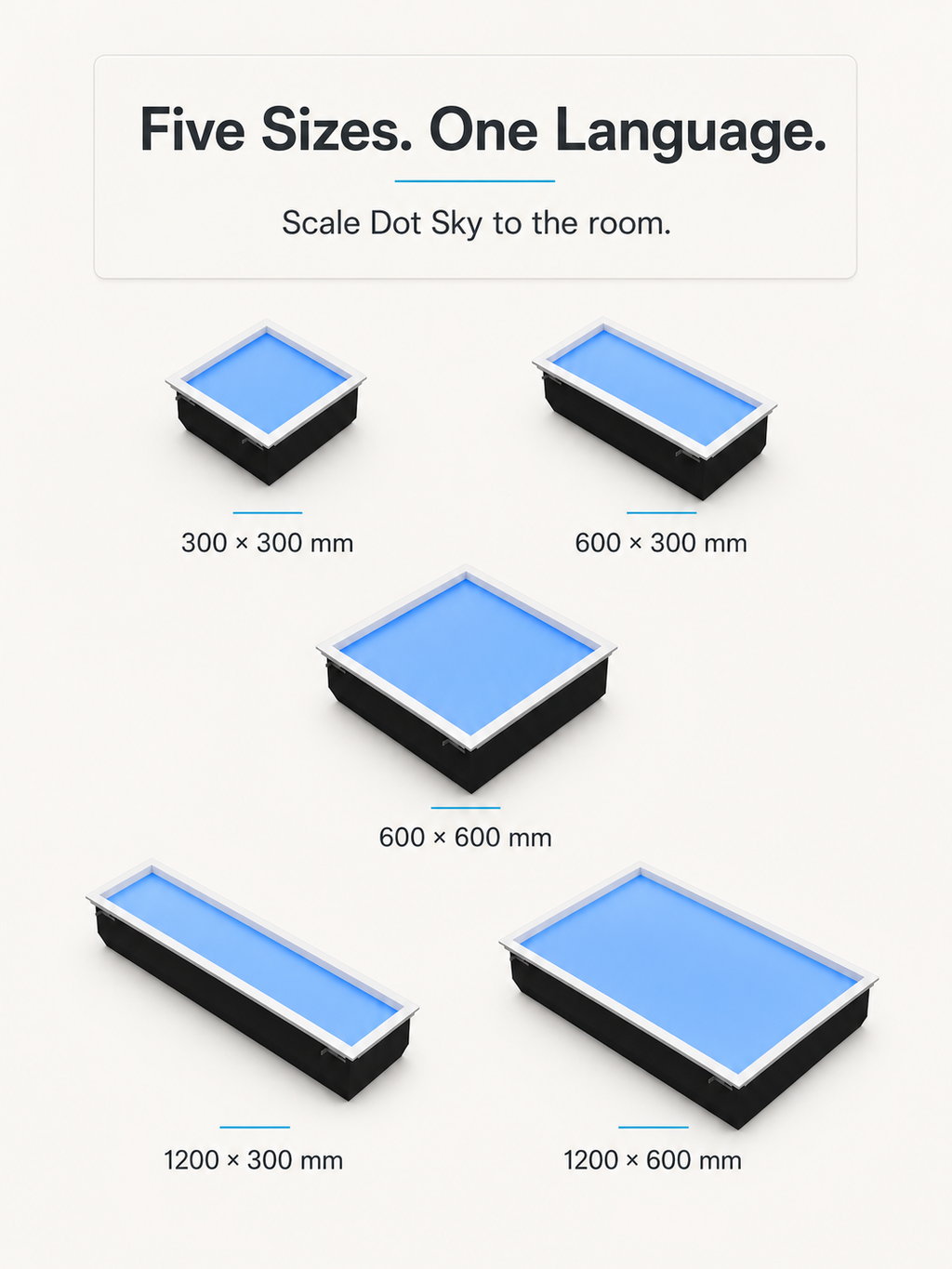

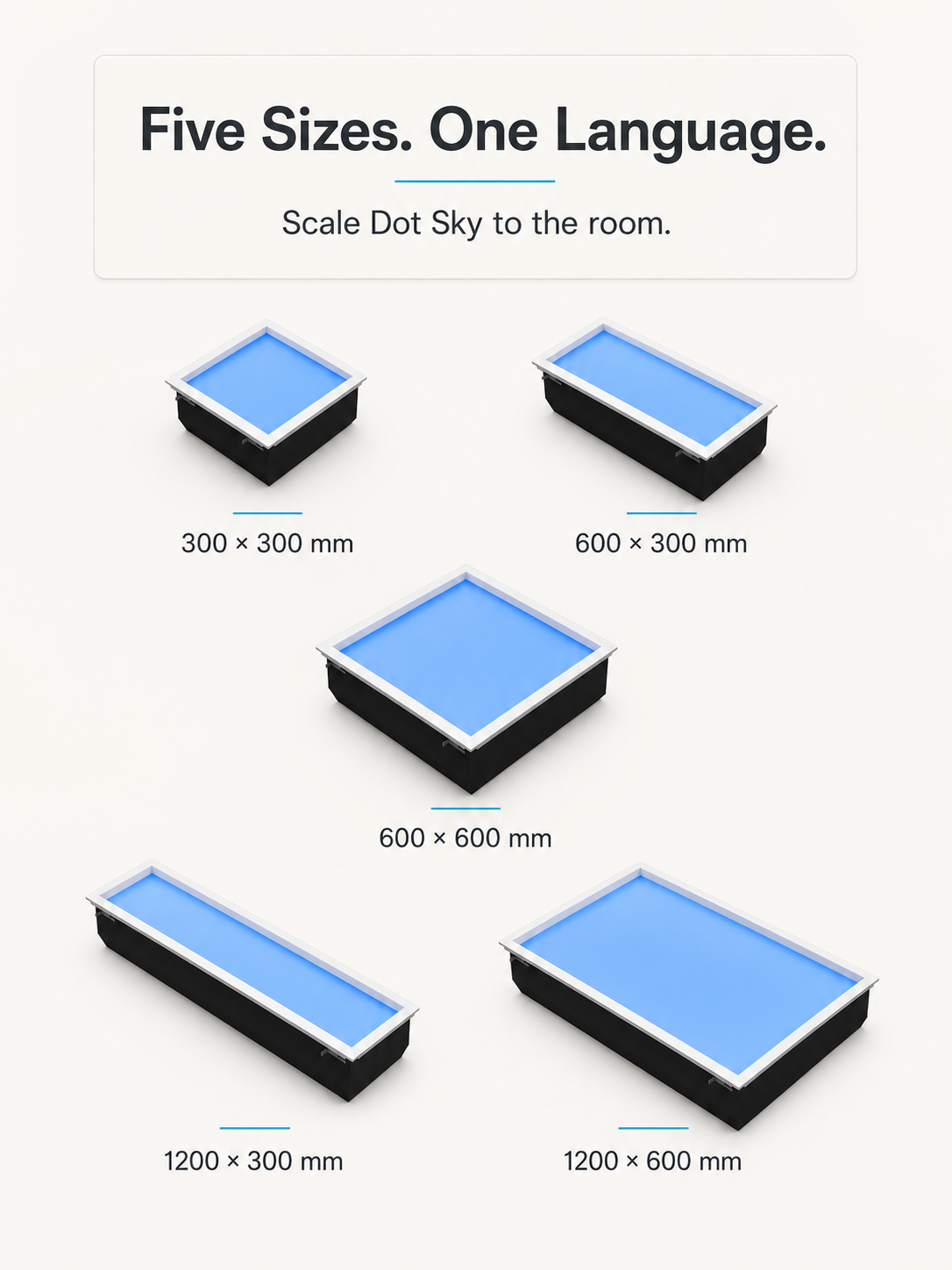

- Five recessed sizes from 300 × 300 mm to 1200 × 600 mm.
- Universal 100–240 V AC input.
Design
The integrated recessed structure keeps the visible frame crisp and minimal while placing the luminous surface deeper inside the ceiling. A white perimeter visually blends into light ceilings; the dark housing remains concealed above the cut-out after installation.
Experience

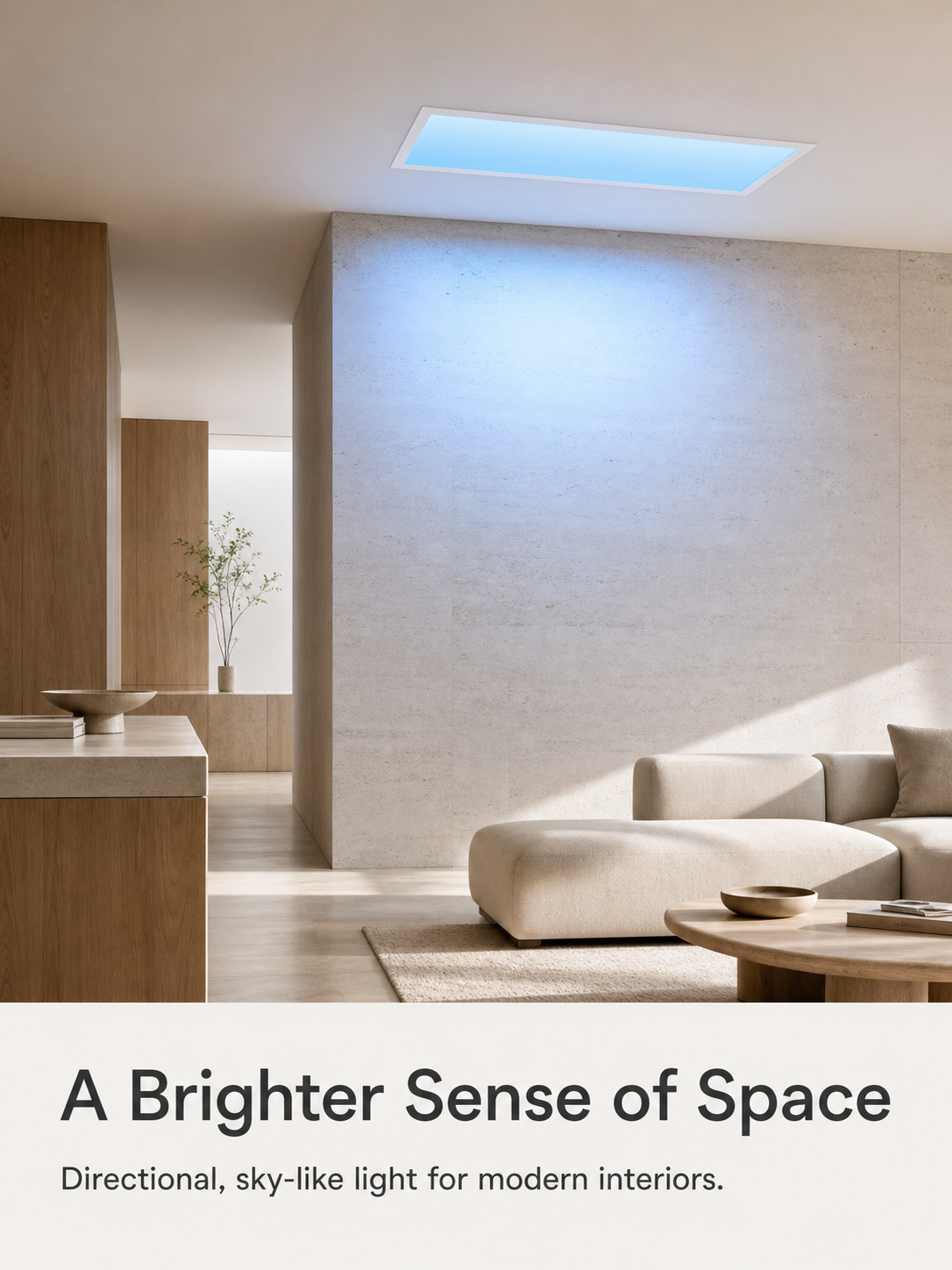

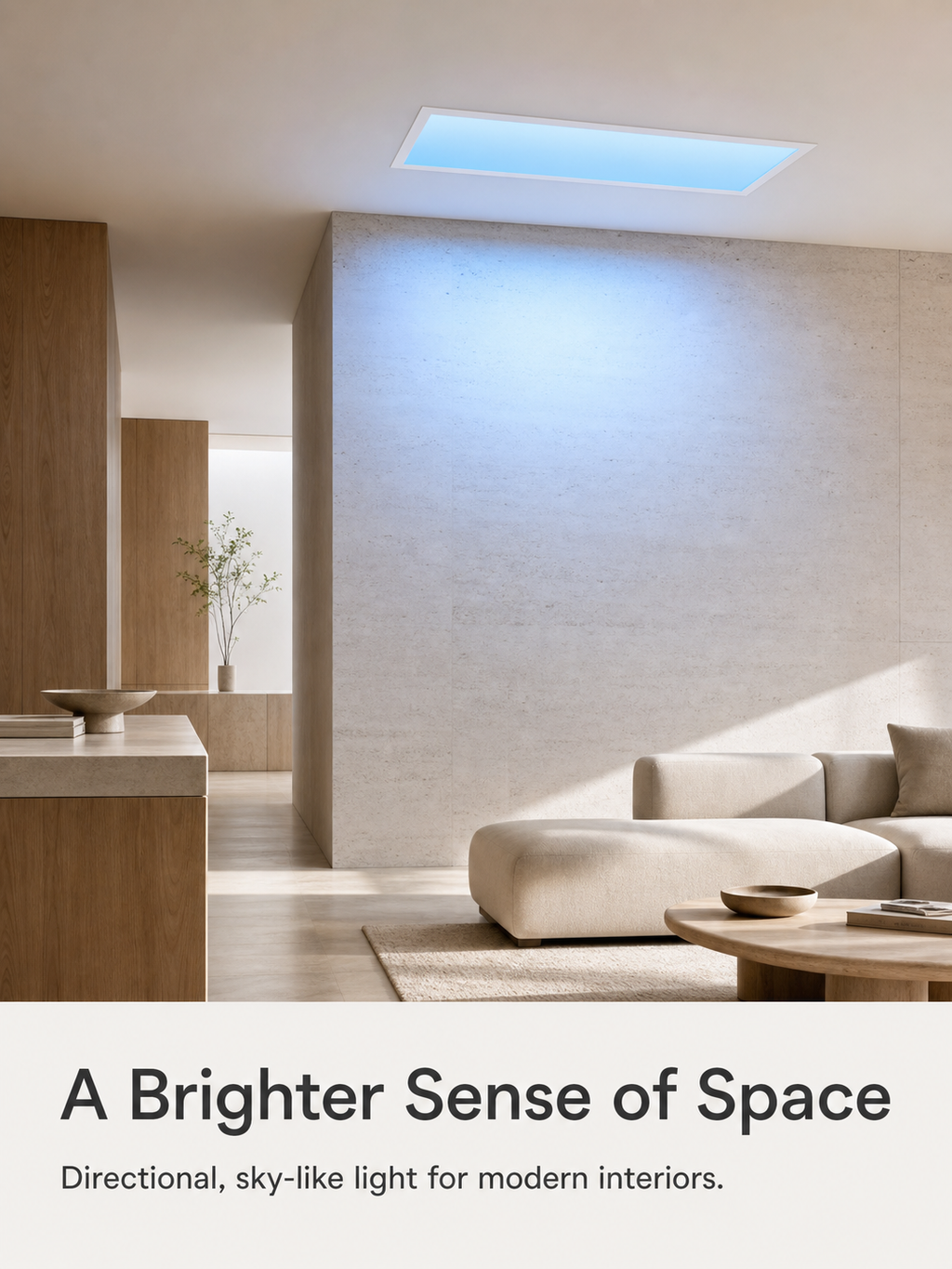

Create a warmer atmosphere in the evening or move toward a clearer, cooler white for display, hospitality and architectural interiors. Each configuration preserves the same Dot Sky design language while scaling power, luminous output and physical size for the room.

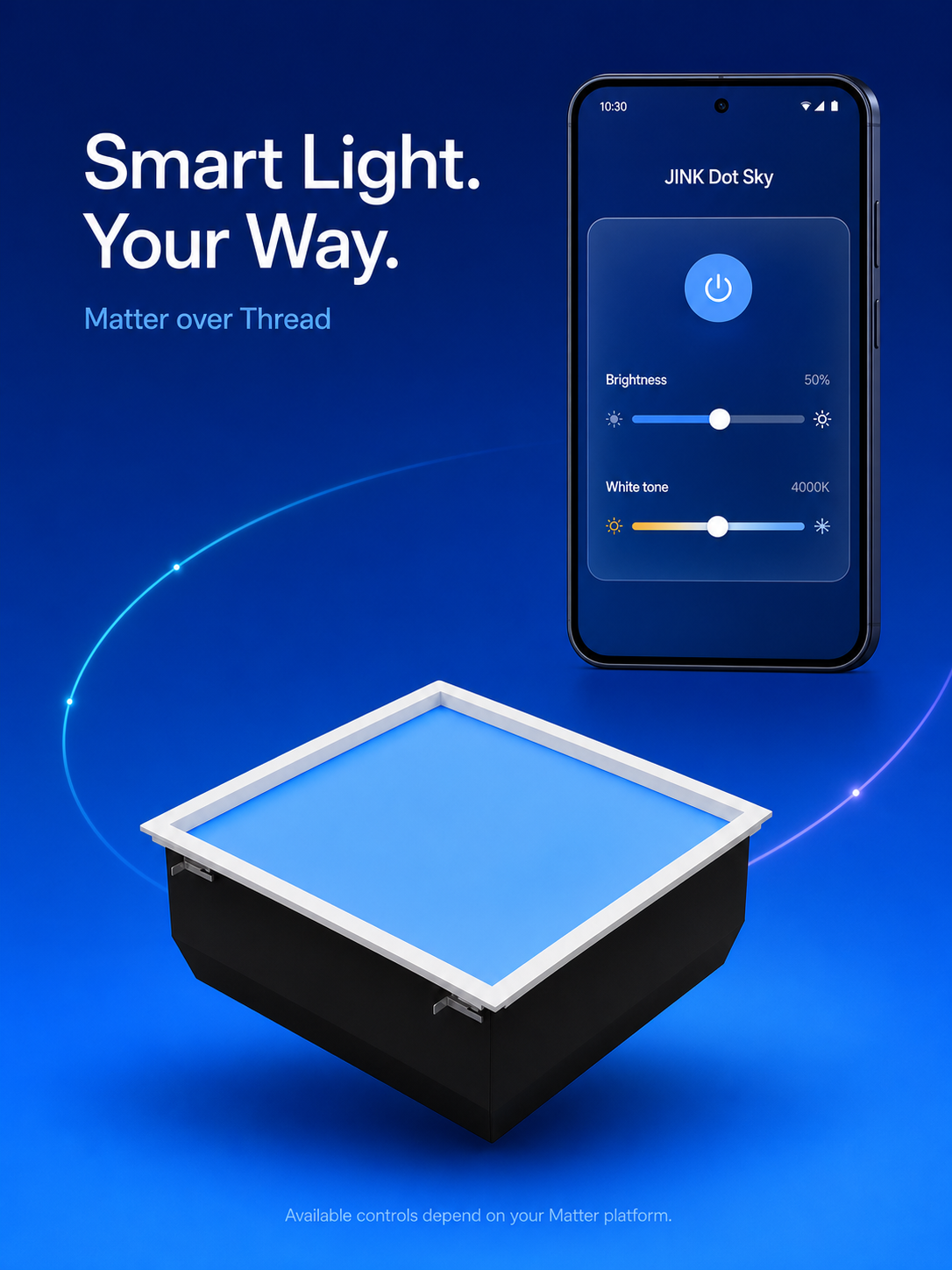

Smart Control
Dot Sky uses Matter over Thread to join a compatible Matter smart-home system. Available controls depend on the selected Matter controller, its current software and the final production firmware. Confirm on/off, brightness and color-temperature control on the production model before active publication.
Matter Integration

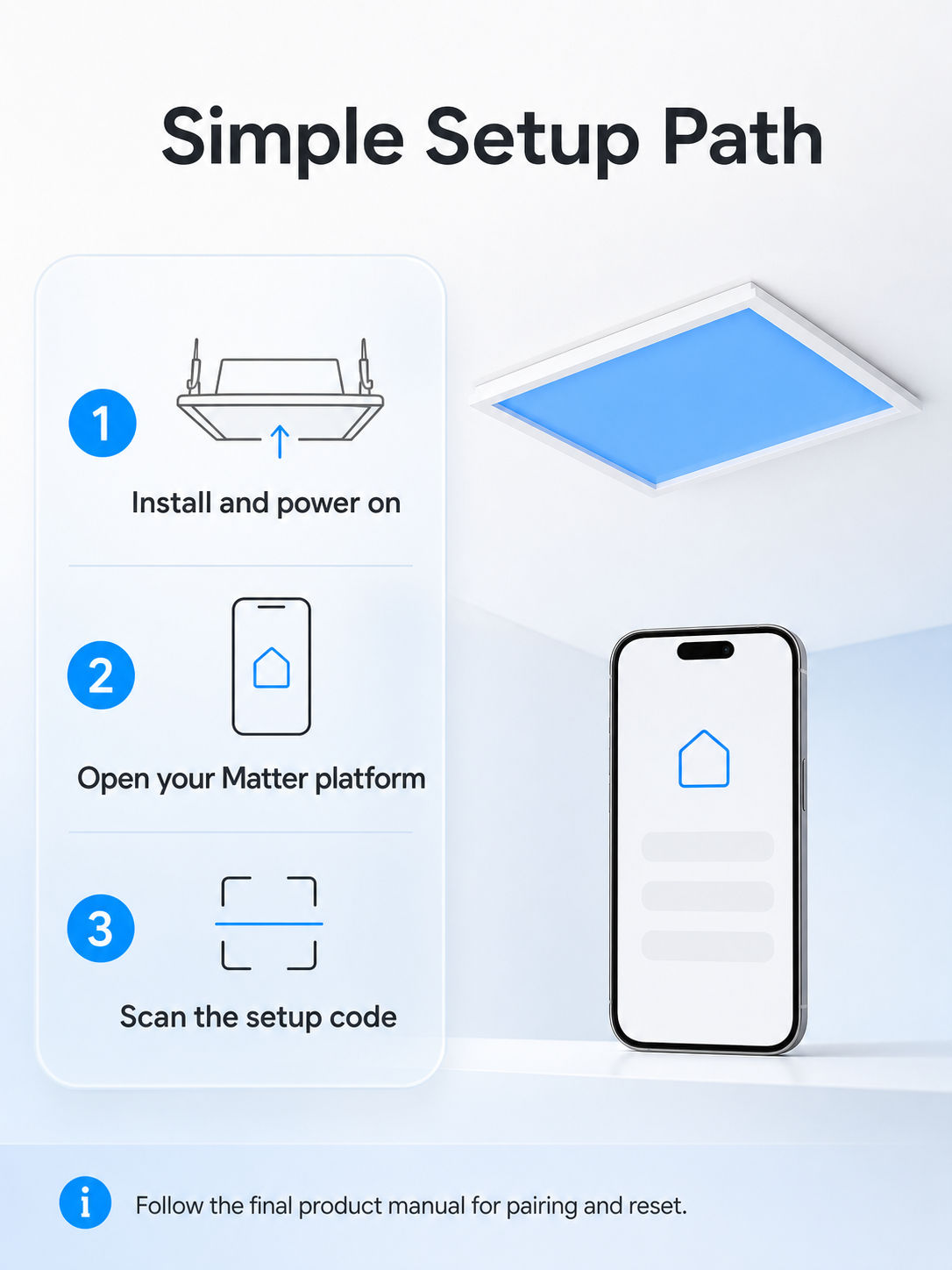

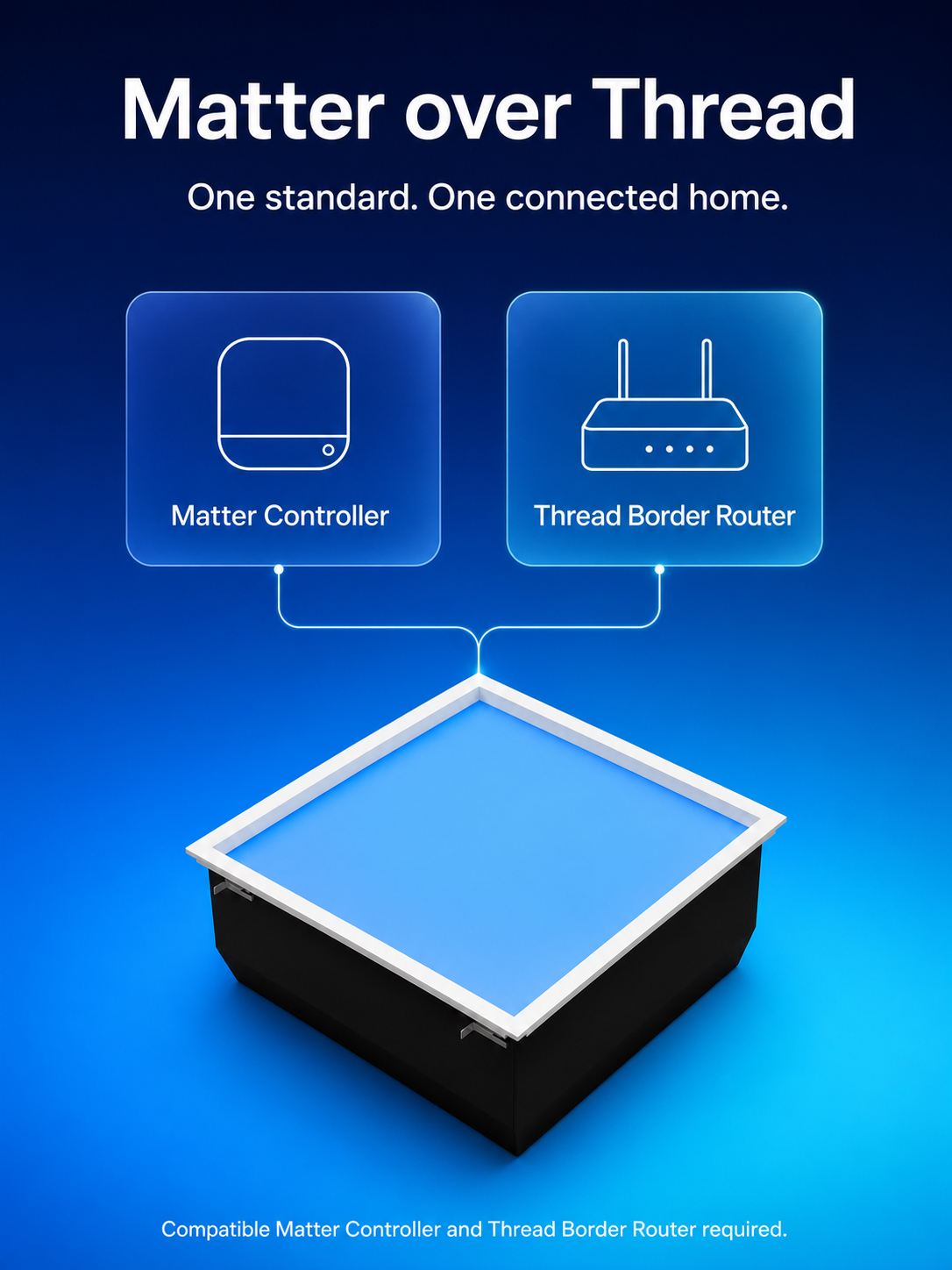

Matter over Thread connects Dot Sky through a low-power IP-based Thread network. A compatible Matter controller and Thread Border Router are required for the complete home setup. Follow the commissioning instructions supplied with the final product and keep its Matter setup code private after pairing.
The exact Matter certification record, supported Matter version, reset flow, firmware-update path and platform-specific feature exposure must be confirmed before displaying Matter or ecosystem certification logos. Platform features and availability may vary.

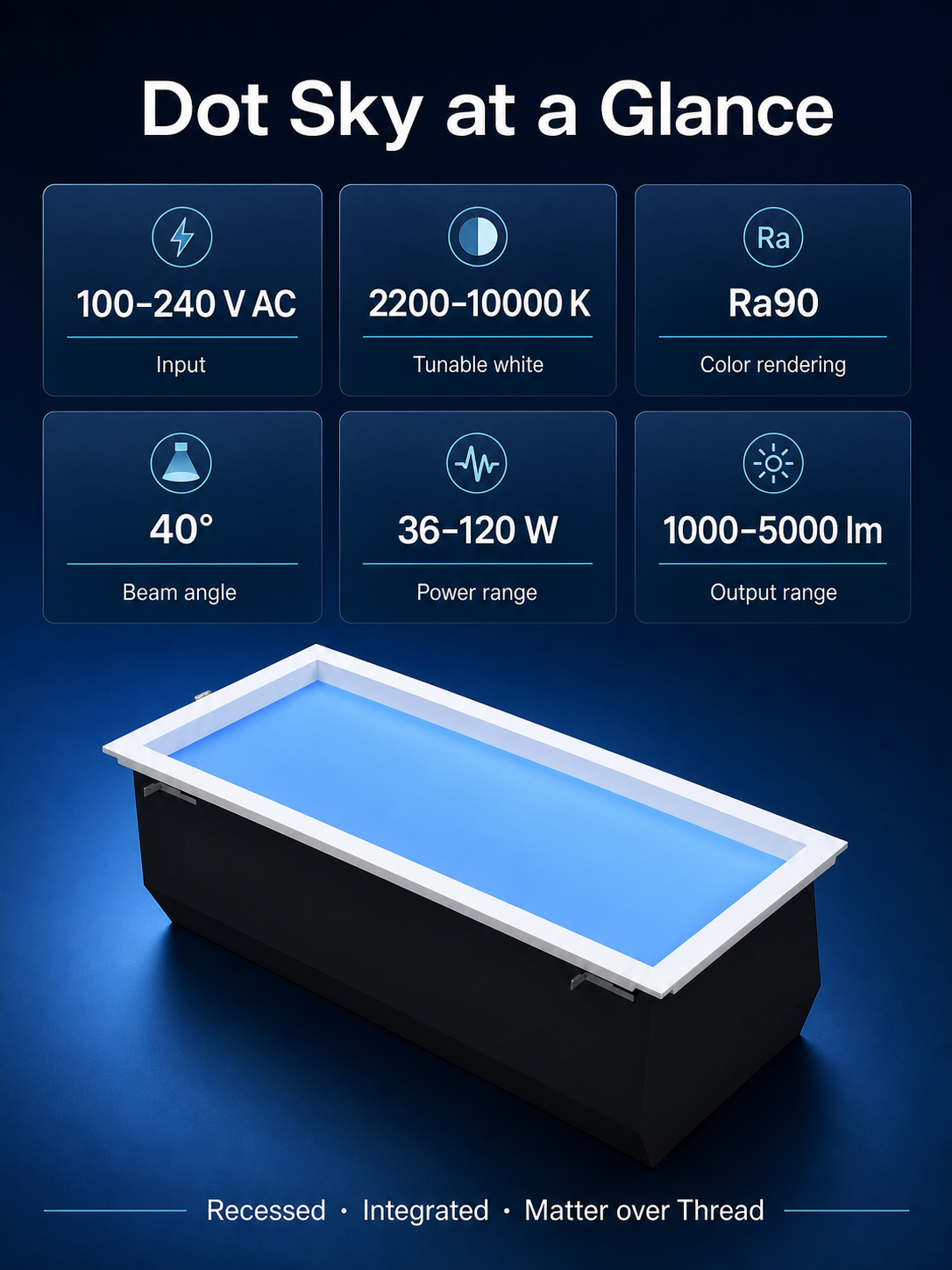

Specifications
| Product type | Recessed directional smart skylight |
|---|---|
| Installation | Recessed, integrated luminaire |
| Input | 100–240 V AC |

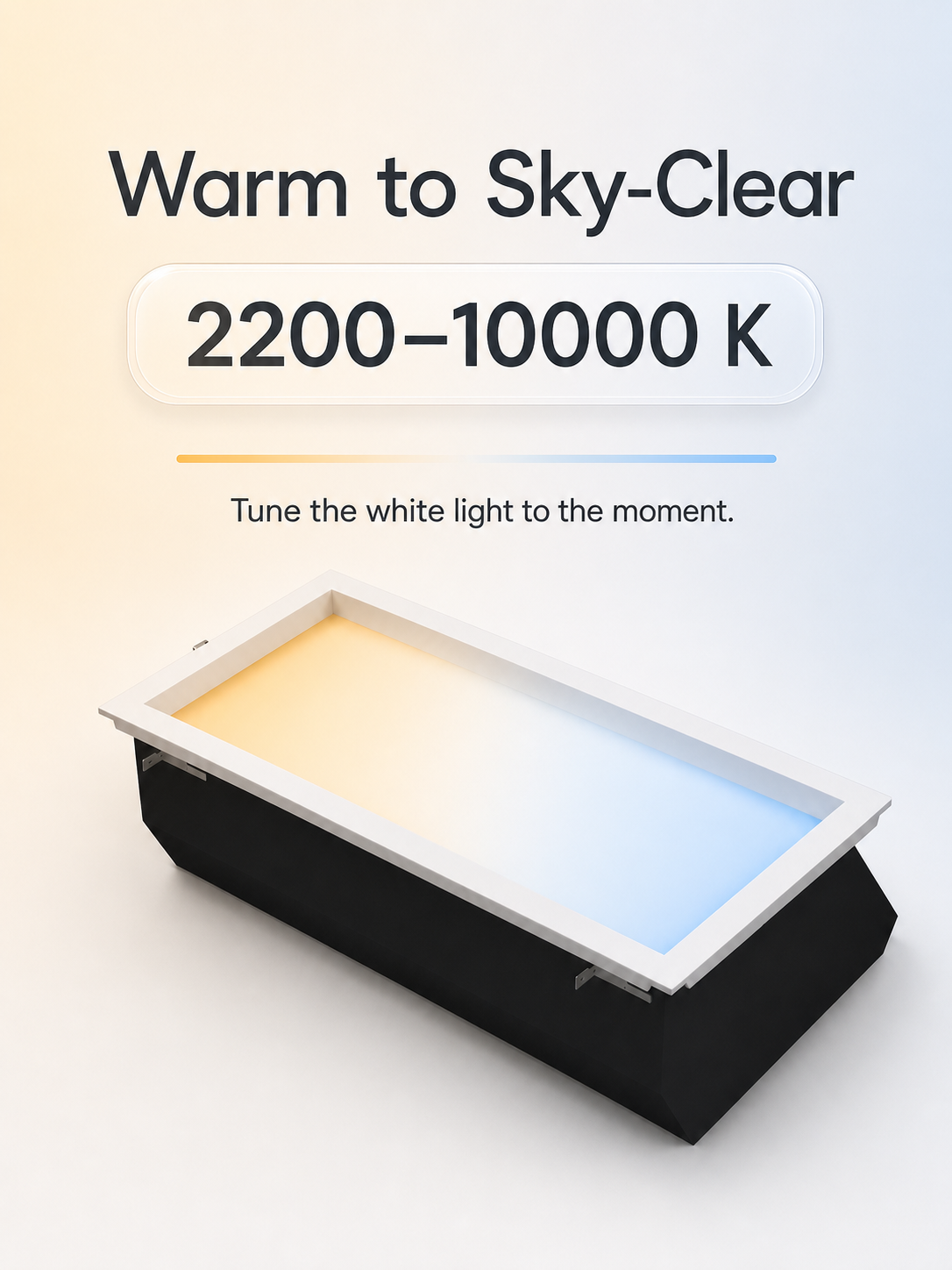

| Color temperature | 2200–10000 K |
| Color rendering | Ra90 |
| Beam angle | 40° |
| Connectivity | Matter over Thread |
| Driver | Constant-current, flicker-free design |
Variant Specifications
| Size | SKU | Product size | Cut-out | Power | Output | Net weight |
|---|---|---|---|---|---|---|

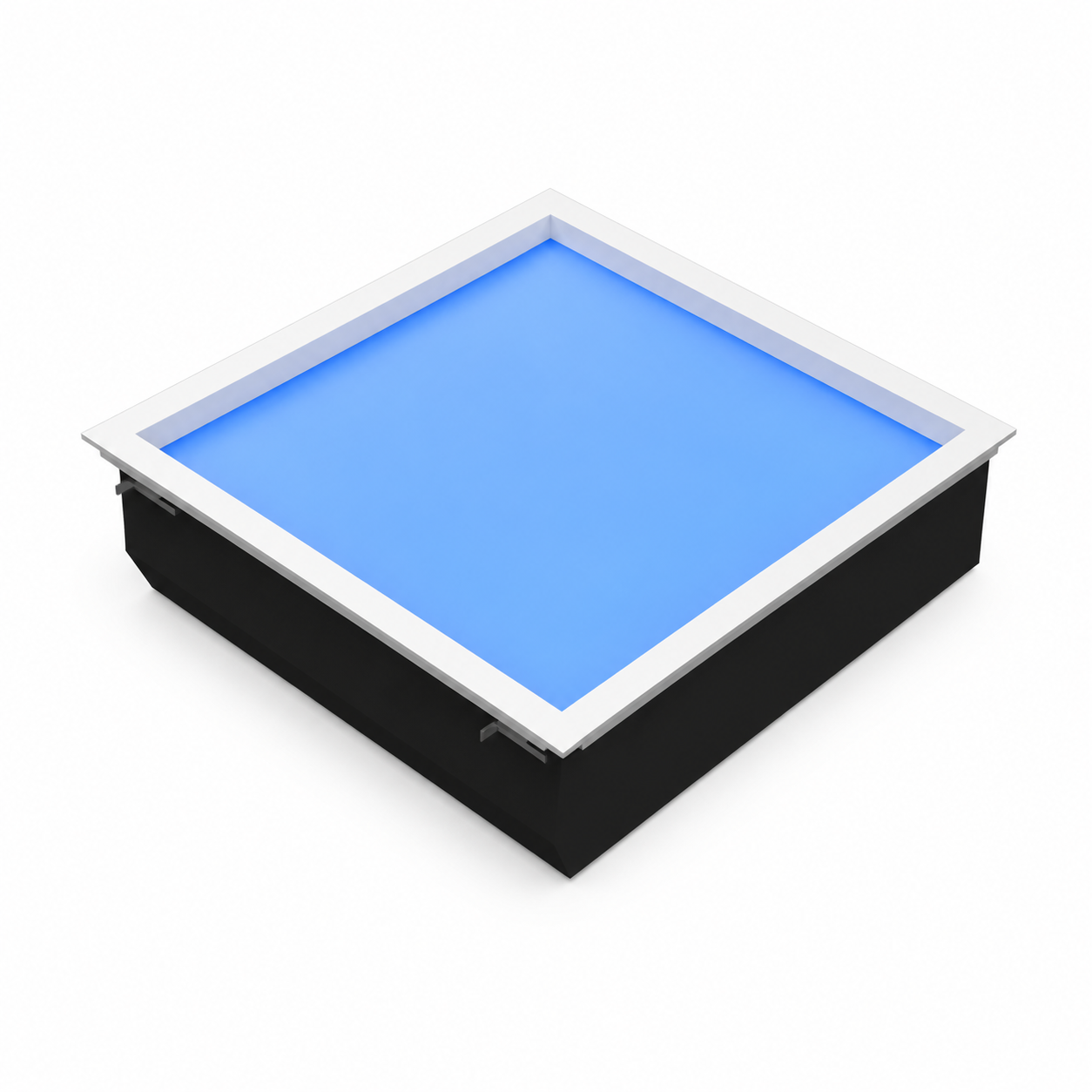

| 300 × 300 mm | QRD-300*300 | 300 × 300 × 150 mm | 285 × 285 mm | 36 W | 1000 lm | 2 kg |

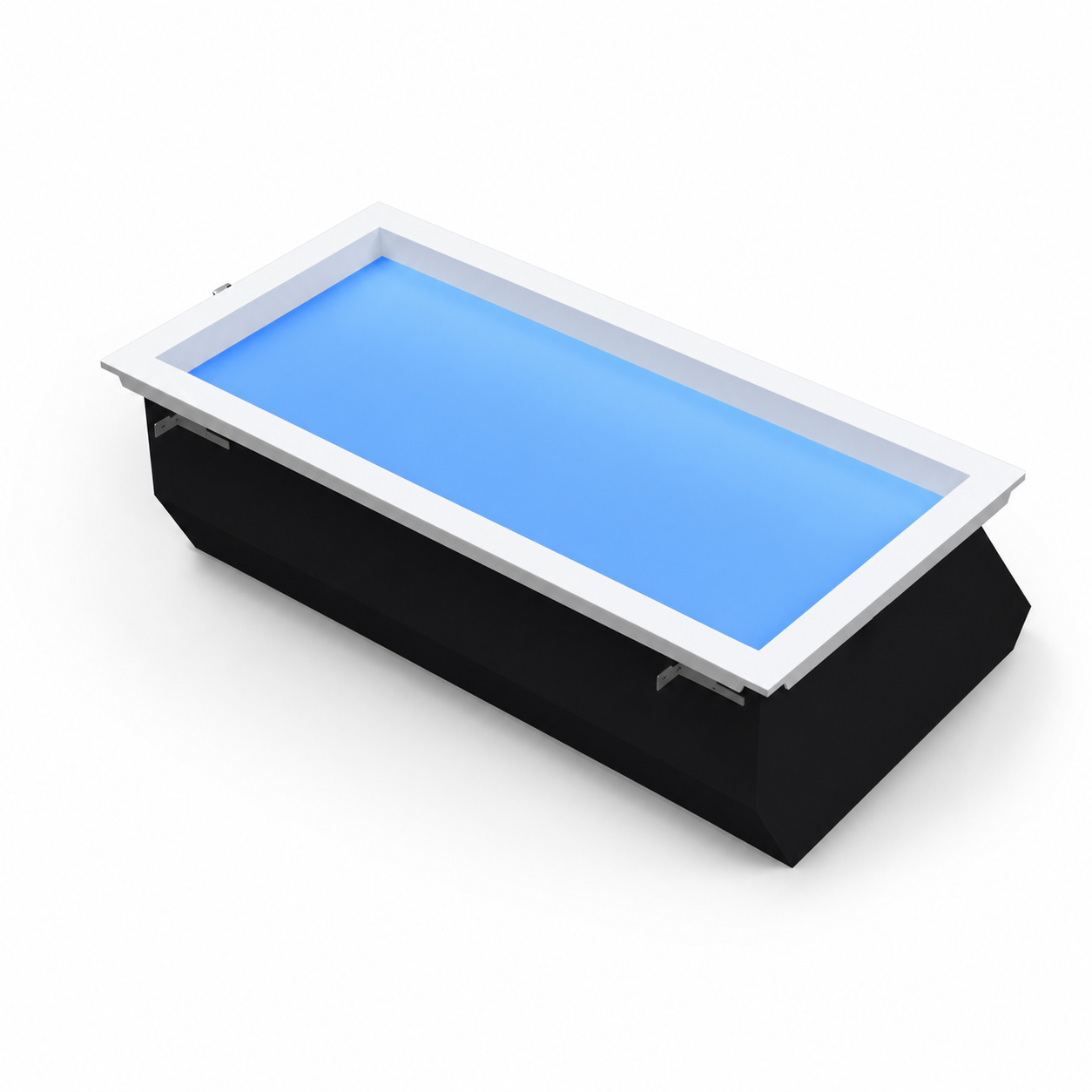

| 600 × 300 mm | QRD-300*600 | 600 × 300 × 150 mm | 585 × 285 mm | 60 W | 2000 lm | 3.5 kg |

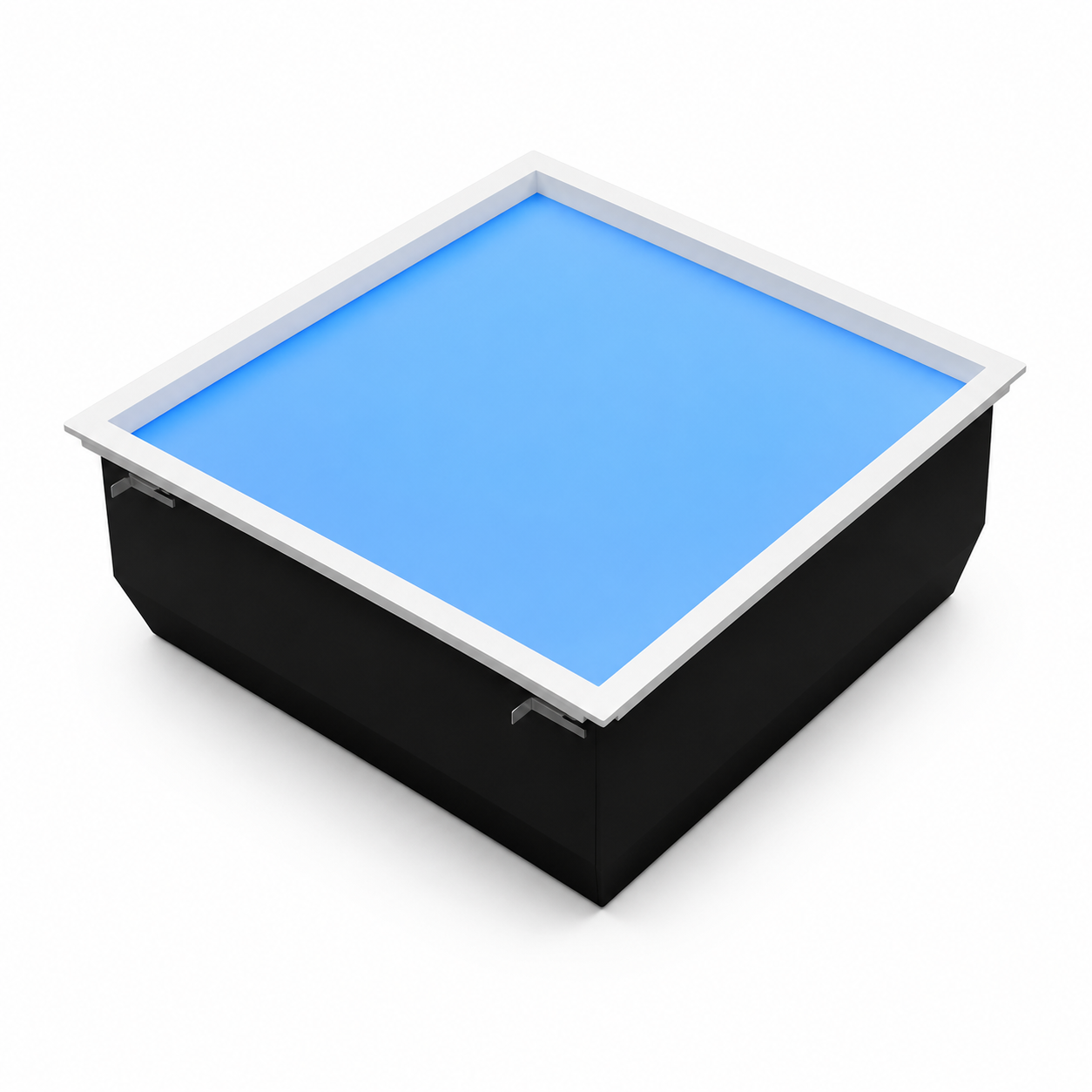

| 600 × 600 mm | QRD-600*600 | 600 × 600 × 235 mm | 585 × 585 mm | 60 W | 2500 lm | 7 kg |

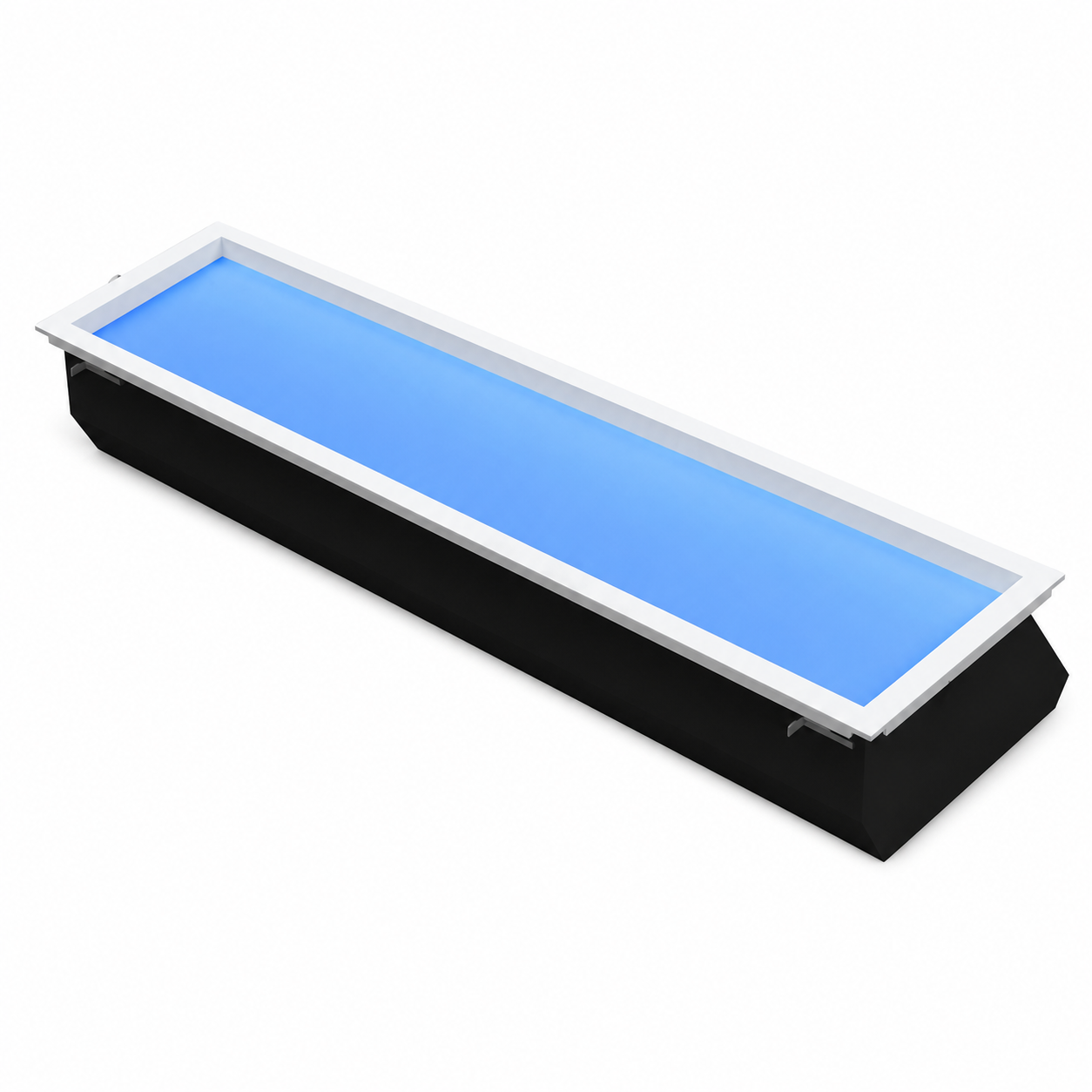

| 1200 × 300 mm | QRD-300*1200 | 1200 × 300 × 150 mm | 1185 × 285 mm | 100 W | 3500 lm | 7 kg |

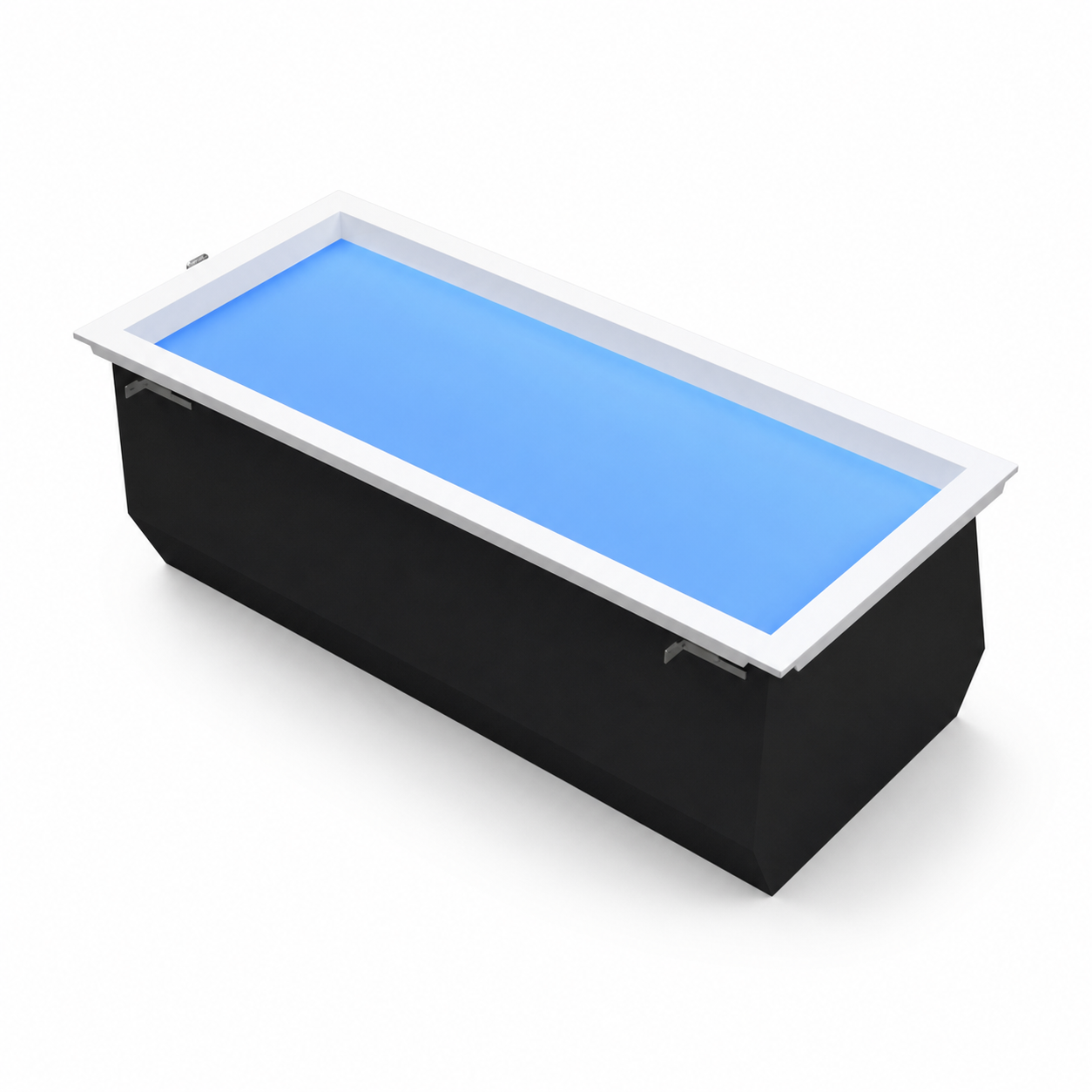

| 1200 × 600 mm | QRD-600*1200 | 1200 × 600 × 235 mm | 1185 × 585 mm | 120 W | 5000 lm | 14 kg |
Package Specifications
| SKU | Package size |
|---|---|
| QRD-300*300 | 370 × 340 × 220 mm |
| QRD-300*600 | 650 × 390 × 220 mm |
| QRD-600*600 | 750 × 650 × 295 mm |
| QRD-300*1200 | 1260 × 390 × 220 mm |
| QRD-600*1200 | 1260 × 760 × 295 mm |

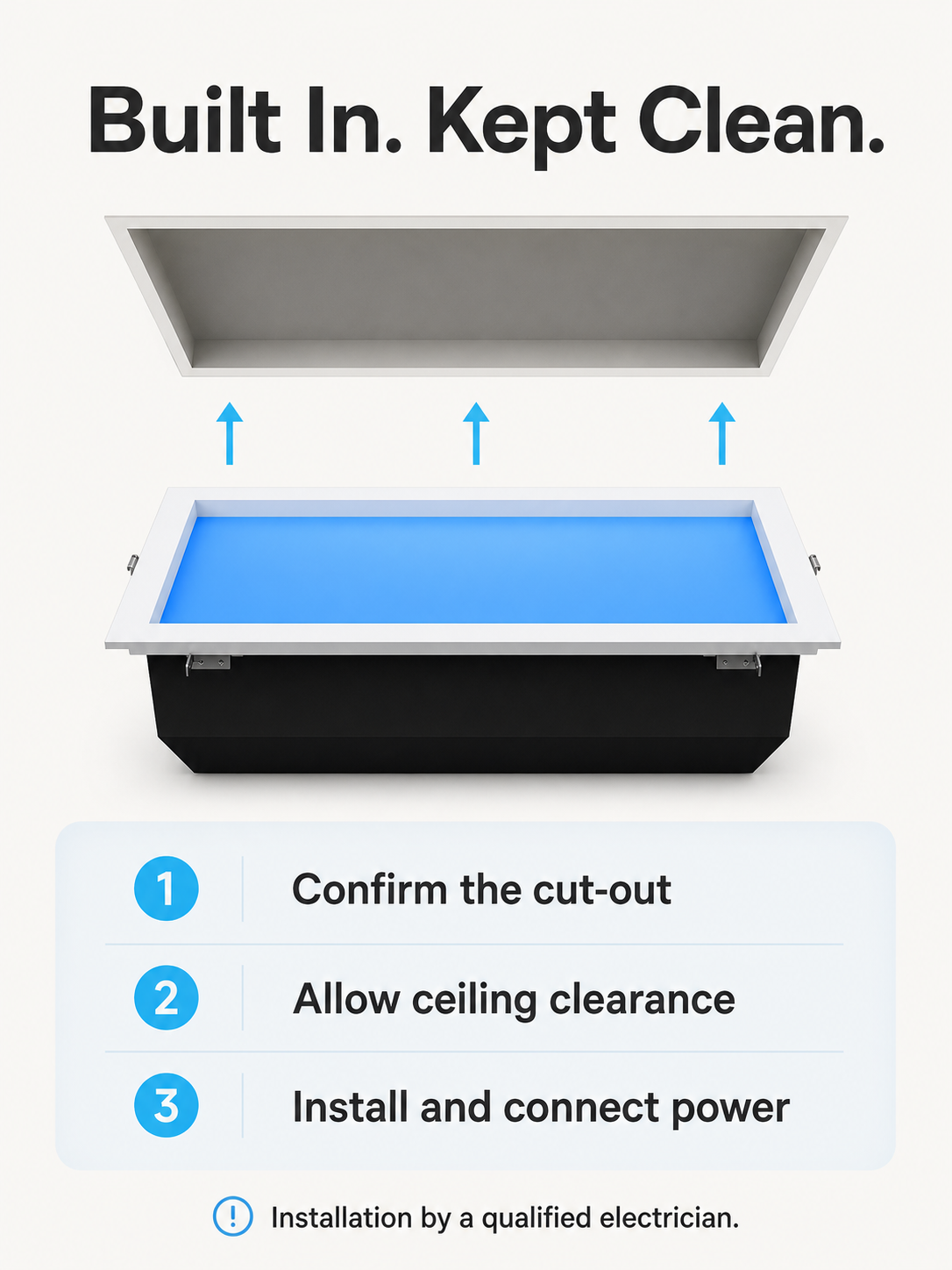

Installation
Hardwired recessed installation is required. Confirm the cut-out dimensions for the selected SKU before ceiling work begins. Installation must be completed by a qualified electrician in accordance with local electrical and building regulations. Allow adequate above-ceiling clearance and follow the final product manual.
What’s in the Box
- 1 × JINK Dot Sky integrated luminaire in the selected size.
- Final installation hardware and documentation: confirm by SKU before active publication.
Requirements and Notes
- A compatible Matter controller and Thread Border Router are required for the full Matter over Thread setup.
- Matter setup code, reset instructions and firmware-update method must be supplied with the final production unit.
- Platform features may vary by ecosystem, controller, region and software version.
- Product dimensions, cut-outs, power and output vary by SKU; check the selected option before ordering.
- Final IP rating, warranty, shipping weight, included hardware and regional certifications must be confirmed before the product is activated.
- The supplier sheet states that the full-luminaire series meets CCC requirements and has supporting certificates; verify the certificate against the exact production models before publishing the claim.
